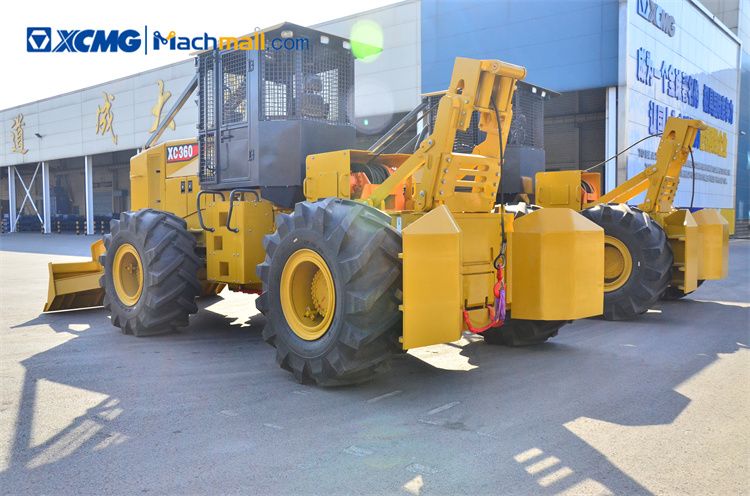

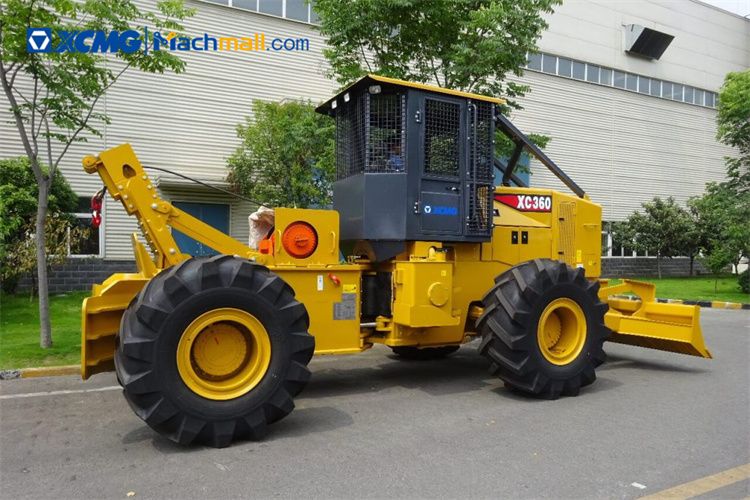

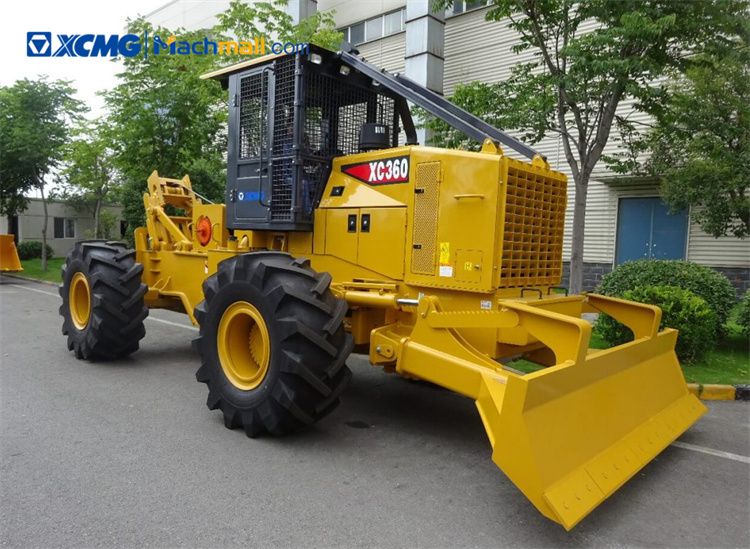

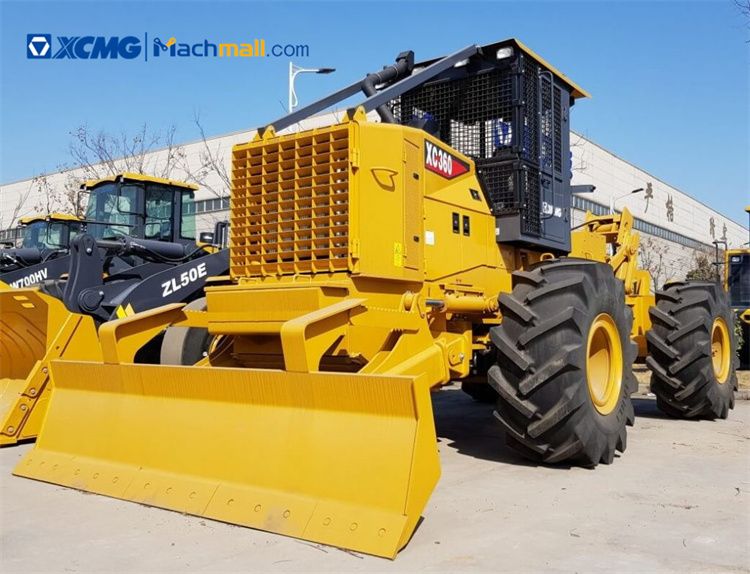

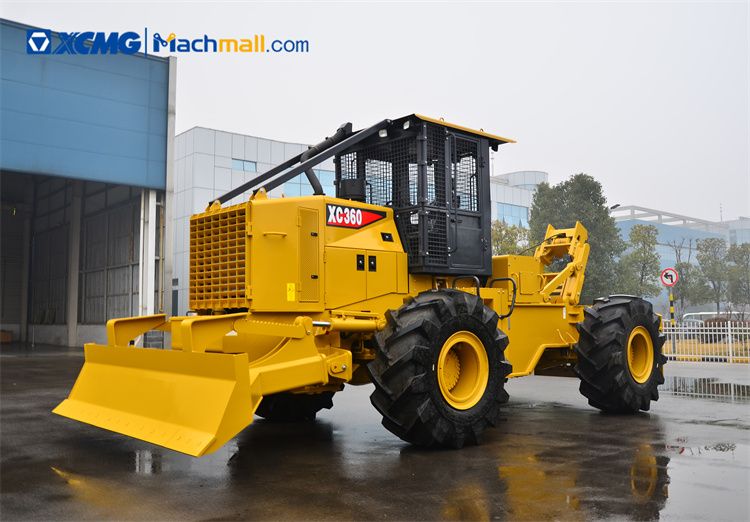

XCMG 240hp Forest Log Skidder Machine XC360.
XCMG XC360 Log Skidder is wheeled type skidding tractor, with 4-wheel drive and hydraulic steering, possesses good flexibility, high running speed and good off-road feature in forest.
XC360 log skidder machine is equipped with a working device in multi-functions. So it is an ideal log skidder in forest log transportation, stacking, rushing to deal with emergency, rescuing and many other additional operations.

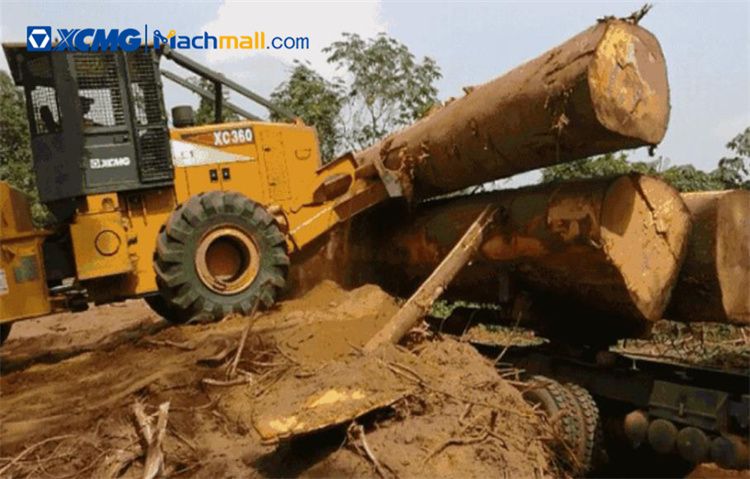

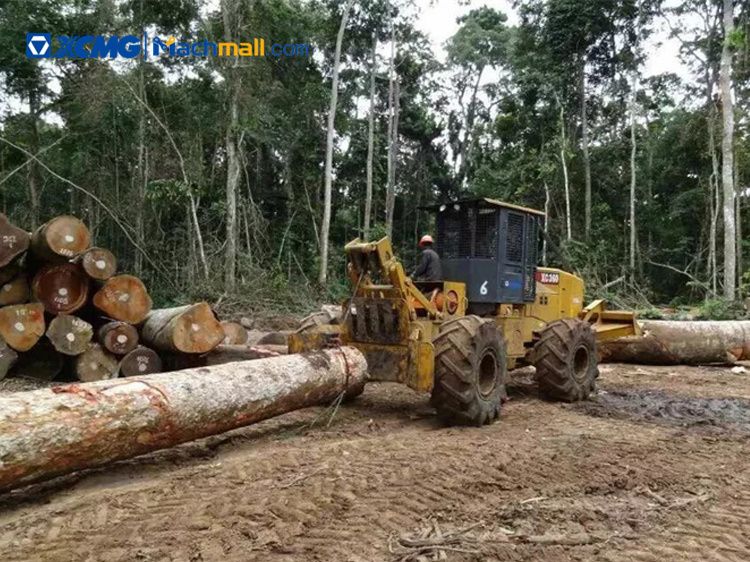

Skidders can rapidly drag huge logs cut to a collection site. The higher working ability is 3 times than tracked bulldozer with hydraulic winch.
XC360 log skidder machine are used to tow full trailer in mountain with bad roads and rescue trucks stuck in mud, reliable and well equipped to handle the toughest forest environments. have such features as high efficiency of site transfer and flexible operation.
![]()
|
Weight
|
19700.000kg
|
|
Engine model
|
Weichai WD10G240E201
|
|
Engine Power.
|
178/2200 kwrpm
|
|
Displacement
|
10L
|
|
Gear
|
Four forward and four reverse
|
|
Speed
|
Forward I/reverse 1:6/6 km/h
|
|
Steering angle
|
389
|
|
Tire model
|
23.5-25
|
|
Pattern
|
Herringbone
|
|
Swing angle of front axle:
|
±120
|
|
Winch drive type
|
Hydraulic motor drive
|
|
Maximum tractive effort of wirerop
|
204 KN
|
|
Maximum wirerope speed
|
10 m/min
|
|
Drum capacity(diameter X,length)
|
φ22x33 mm/m
|
|
Diameter of winch drum(cable type)
|
273 mm
|
|
Width of winch drum
|
230 mm
|
|
Lifting height of push plate
|
1381 mm
|
|
Earth cutting depth of push pla
|
456 mm
|
|
Turning radius(tire outside)
|
6370 mm
|
|
Overrall width(tire outside)
|
3220 mm
|
|
overrall height(cab)
|
3550 mn
|
|
Tire radius
|
760 mm
|
|
Height of cable frame top abo
|
2700 mm
|
|
Wheelbase
|
3680 mm
|
|
Wheel track
|
2622 mm
|
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
