XCMG manufacturer 5 ton loader with Protective Cab Screen with good price
$50183.00-$50183.00
1 / Unit (Min. Order)
Payment
Shipping
Support Sea freight · Land freight · Air freight
XCMG E-commerce Inc.
Follow
XCMG was founded in 1943. XCMG products include: excavators, loaders, cranes including earth-moving machinery, road machinery, concrete machinery, mining machinery and other 12 construction machinery.
Recommendation
Summary
Rated Load: 5 ton
Dimension(Long* Breadth * High): 8225*3016*3515mm
Type: Wheel loader
Place of Origin: Xuzhou, China
Model Number: ZL50GN
Brand Name: XCMG

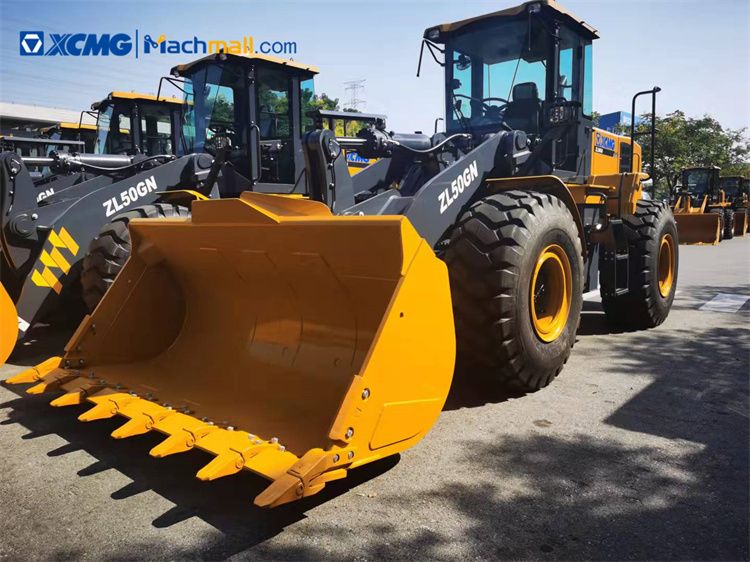

XCMG manufacturer 5 ton loader with Protective Cab Screen



Focusing on customer value and emphasizing custo ences, XCMG 5 ton loader ZL50GN is the first-choice equipment for the production organization in the fields of ports, mines, engineering constructions, and logistics.



5 ton loader ZL50GN Model Characteristics:

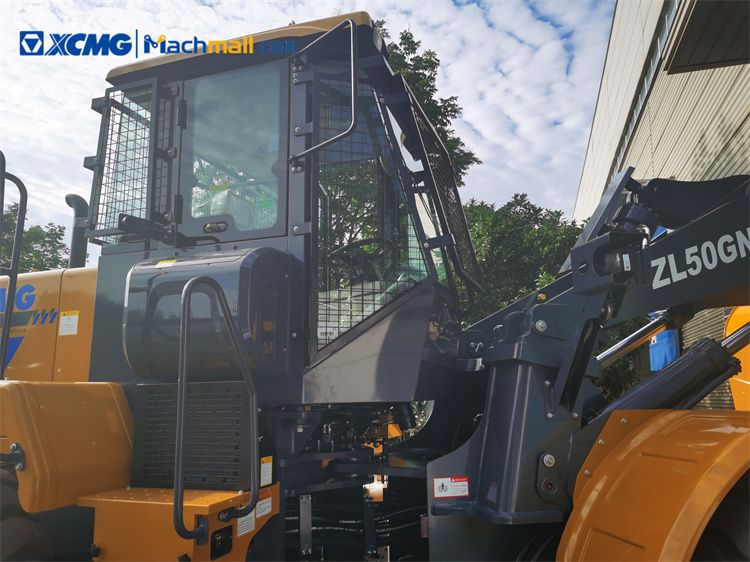

1. It can solve the security problem under special working constiron with protective screen and stable structure.



2. Exclusive high torque and high efficiency drive chain features reasonable matching.



3. Characteristic super-heavy-load structure parts are free of redundant weight.



4. With extended wheelbase, the working capacity and stability are leading the industry.



5. The centering design of main hinge joints reduces the turning radius and lowers the tire wear and energy consumption.



6. The ergonomically design cab adopts integral skeleton structure, delicate interior trim parts, and sound insulation and noise reduction measure, featuring broad visual field, super-large space, and high operation comfort.



7. The diversified configurations and complete attachments comprehensively adapt to the construction needs in different regions and under different working conditions.



Description

Unit

Parameter value

Rated operating load

kg

5000

Bucket capacity

2.5~4.5

Machine weight

kg

17500±300

Dump clearance at maximum lift

mm

3100~3780

Reach at maximum lift

mm

1100~1220

Wheel base

mm

3300

Tread

mm

2250

Max.breakout force

kN

175±5

Max.horse power

kN

160±5

Hydraulic cycle time-raise

s

≤6

Total hydraulic cycle time

s

≤10.5

Min. turning radius over tyres

mm

5925±50

Articulation angle

°

38

Gradeability

°

30

Tyre size



23.5-25-16PR

Overall machine dimension L×W×H

mm

8225*3016*3515

Model



WD10G220E21

Rated Power

kW

162

Travel Speed

-gear(F/R)

13/17



-gear(F)

41









More About Loader
