XCMG new 5 ton diesel forklift truck XCB-DT50 with 2.5m mast height price
$10000.00-$100000.00
1 / EA
(Min. Order)
Shipping
Support Sea freight · Land freight · Air freight
XCMG was founded in 1943. XCMG products include: excavators, loaders, cranes including earth-moving machinery, road machinery, concrete machinery, mining machinery and other 12 construction machinery.
Summary
Fork Width:
150mm
Fork Length:
1220mm
Rated Loading Capacity:
5000kg
Model Number:
XCB-DT50
Brand Name:
XCMG
Place of Origin:
Xuzhou, Jiangsu, China
![]()

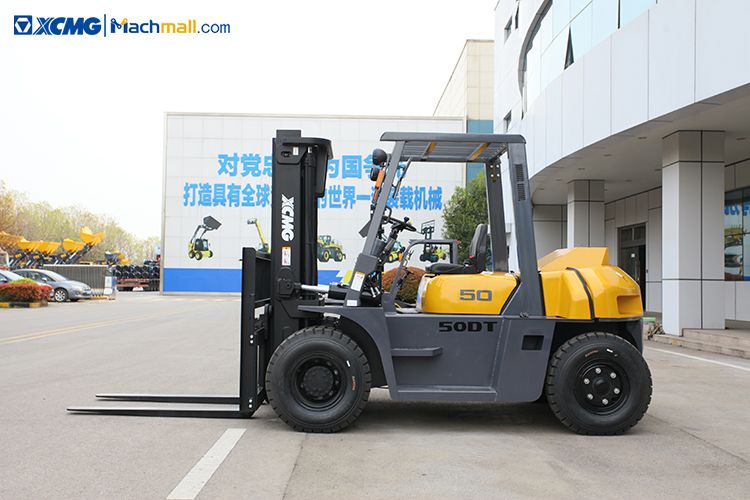

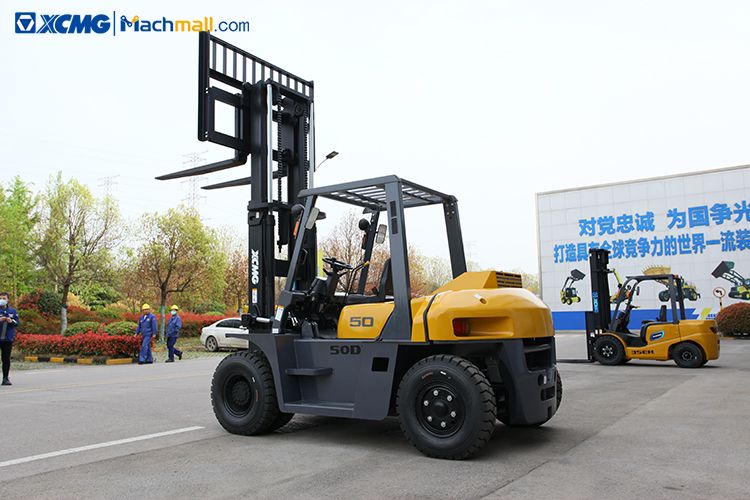

XCMG new 5 ton diesel forklift counterbalanced forklift truck with 2500mm mast height.
XCMG new 5 ton diesel forklift counterbalanced forklift truck provides you with multiple choice as per your real need, we have different reliable engines for choice. All these engines have been tested that they can be trusted through all kinds of tough working condition and get recognition from millions of clients across the worldwide.
Highlights:
1.New style environmental engine.
Equipped with powerful and efficient engine,suitable for the latest Chinese II emission standard and Europe III emission standard(S6ST).
2.Hydraulic steering system.
Steering system with horizontal convenient veer operation and maintainability.
3.Wide view mast.
Preeminent front operation view with unique designed wide view mast (model VM), makes safer and more reliable operation.
![]()
|
Specification
|
1
|
Manufacturer
|
|
XCMG
|
|
2
|
Model
|
|
XCB-DT50
|
|
3
|
Load capacity
|
kg
|
5000
|
|
4
|
Load center
|
mm
|
600
|
|
5
|
Power unit
|
|
diesel
|
|
6
|
Operator type
|
|
driver / seat
|
|
7
|
Tire type
|
front / rear
|
|
pneumatic
|
|
8
|
Wheels
|
front / rear
|
|
4 ×2
|
|
Dimensions
|
9
|
Max.lifting height
|
mm
|
3000
|
|
10
|
Free lift
|
mm
|
205
|
|
11
|
Fork size
|
L ×W ×T
|
mm
|
1220×150×60
|
|
12
|
Tilt angle
|
forward / backward
|
deg
|
6/12
|
|
13
|
Overall length(without fork)
|
mm
|
3455
|
|
14
|
Total width
|
mm
|
1995
|
|
15
|
Mast height(fork lowering)
|
mm
|
2500
|
|
16
|
Overall height fork raised
|
mm
|
4420
|
|
17
|
Height of head guard
|
mm
|
2450
|
|
18
|
Turning raduis(outside)
|
mm
|
3250
|
|
19
|
Load distance
|
mm
|
615
|
|
20
|
Right angle stacking aisle (pallet size:1100×1100 add clearence)
|
mm
|
5500
|
|
Performance
|
21
|
|
Travelling
|
full load
|
km/h
|
26
|
|
|
no load
|
km/h
|
30
|
|
22
|
Speed
|
Lifting
|
full load
|
mm/s
|
500
|
|
|
no load
|
mm/s
|
550
|
|
23
|
|
Lowering
|
full load
|
mm/s
|
450
|
|
|
no load
|
mm/s
|
500
|
|
24
|
Max.drawbar pull
|
Full / no load
|
kg
|
5500/2250
|
|
25
|
Gradeabillty at 1.6km/h
|
Full load
|
%
|
37
|
|
26
|
Max.gradeabillty
|
Full / no load
|
%
|
42 / 19
|
|
Weights
|
27
|
Weight
|
|
kg
|
8050
|
|
28
|
|
Full
|
front
|
kg
|
11710
|
|
Weight distribution
|
rear
|
kg
|
1340
|
|
29
|
|
No load
|
front
|
kg
|
4020
|
|
|
rear
|
kg
|
4030
|
|
Chassis&wheels
|
30
|
|
Number
|
front / rear
|
|
4月2日
|
|
31
|
Tires
|
Size
|
front
|
|
8.25× 15- 14PR
|
|
32
|
|
rear
|
|
8.25× 15- 14PR
|
|
33
|
Wheelbase
|
|
mm
|
2250
|
|
34
|
Tread
|
Front
|
mm
|
1470
|
|
Rear
|
mm
|
1700
|
|
35
|
Ground clearence
|
At lowest point(mast)
|
mm
|
190
|
|
Frame
|
mm
|
230
|
|
36
|
Brake
|
Service brake
|
|
power brake
|
|
Paking brake
|
|
mechanical-hand lever
|
|
Drive Line
|
37
|
Battery
|
Voltage / capacity
|
V/AH
|
2 × 12V-80AH
|
|
|
|
Model
|
|
CHAOCHAI 6BG332
|
ISUZU 6BG1
|
|
|
|
Rated power
|
KW/rpm
|
85 / 2200
|
82.4/2000
|
|
38
|
Engine
|
Rated torque
|
N ·m/rpm
|
450/1650
|
416.8/1500
|
|
|
|
Number of cylinders
|
|
6
|
6
|
|
|
|
Displacement
|
L
|
5.785
|
6.494
|
|
39
|
Fuel tank capacity
|
|
L
|
140
|
|
40
|
Transmission
|
Shift stage (front / rear-type)
|
|
2 / 2 automatic
|
|
41
|
Hydraulic system pressure
|
|
kg/cm2
|
200
|
![]()
![]()
![]()
![]()
![]()
![]()
