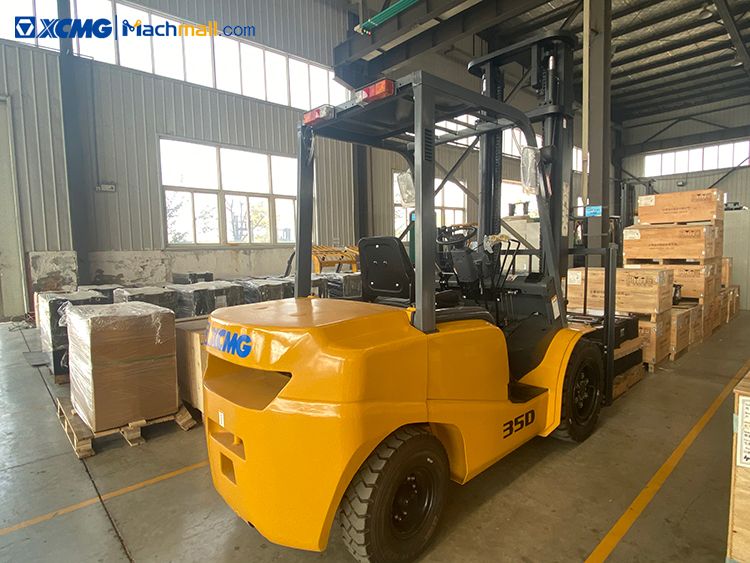

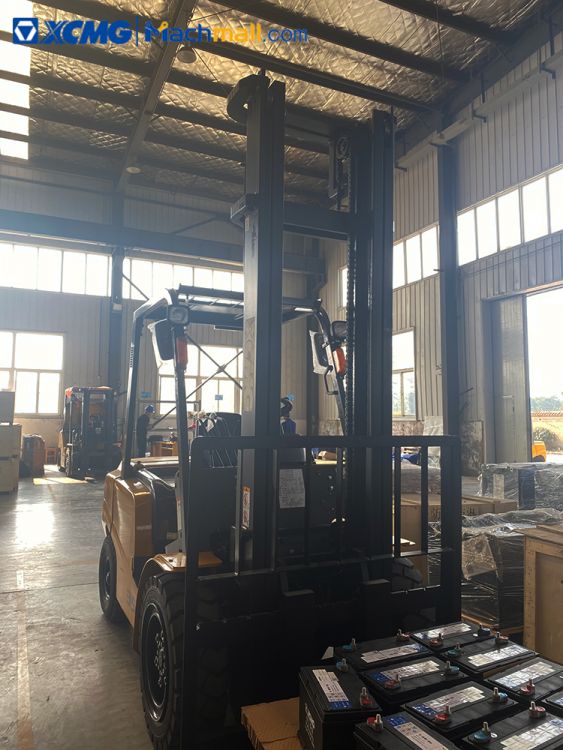

XCMG new 3.5 ton diesel forklift XCB-D35 with 2075mm mast height.
XCMG new 3.5 ton diesel forklift XCB-D35 with 2075mm mast height has been well received by many users. In addition to XCMG's strong brand influence, it also has many bright spots to satisfy customers. First of all, it uses Xinchai’s National III engine, with an engine power of 35.3KW, low fuel consumption, strong power, and relatively strong force for loading and unloading, and it can drive freely on slightly uneven outdoor roads.
Highlights:
1.Cleaner, more efficient Engines.
New engines, compliant with worldwide stagelll A emission regulations(/SUZU C240PKJ, Mitsubishi S4S Diesel poweredengine
2.Easy Maintenance.
Detachable side covers and a wide-opening hood for convenient Inspection and simple mainten- ance. Integral layout of electrical parts and other system devices.
3.Easier entry and exit from an extra-wide step.
The secure step with enlarged food space enables greater comfort and less fatigue while entering and exiting the vehicle.
![]()
|
Project
|
Unit
|
Parameter
|
|
Model
|
|
XCB-D35
|
|
Load capacity
|
kg
|
3500
|
|
Load center
|
mm
|
500
|
|
Power unit
|
|
Diesel
|
|
Operator type
|
|
Driver/seat
|
|
Tire type
|
|
Pneumatic
|
|
Wheel
|
|
4
|
|
Max. lifting height
|
mm
|
3000
|
|
Free lift
|
mm
|
150
|
|
Fork size
|
mm
|
1070*125*50
|
|
Overall length(without fork)
|
mm
|
2760
|
|
Total width
|
mm
|
1285
|
|
Mast height (fork lowering)
|
mm
|
2075
|
|
Overall height fork raised
|
mm
|
4250
|
|
Height to head guard
|
mm
|
2140
|
|
Turning raduis(outside)
|
mm
|
2495
|
|
Front face of fork to front axle
|
mm
|
485
|
|
Max Travelling (full/no load)
|
km/h
|
18/19.5
|
|
Lifting (full/no load)
|
mm/s
|
450/500
|
|
Lowering (full/no load)
|
mm/s
|
450/420
|
|
Power shift (full/no load)
|
kg
|
2200/1000
|
|
Manual shift (full/no load)
|
kg
|
2200/1000
|
|
Power shift (full/no load)
|
%
|
18/20
|
|
Manual shift (full/no load)
|
%
|
18/20
|
|
Truck weight
|
kg
|
4780
|
|
Wheelbase
|
mm
|
1700
|
|
Fuel tank capacity
|
L
|
70
|
|
Hydraulic system pressure
|
kg/cm²
|
180
|
![]()
![]()
![]()
![]()
![]()
