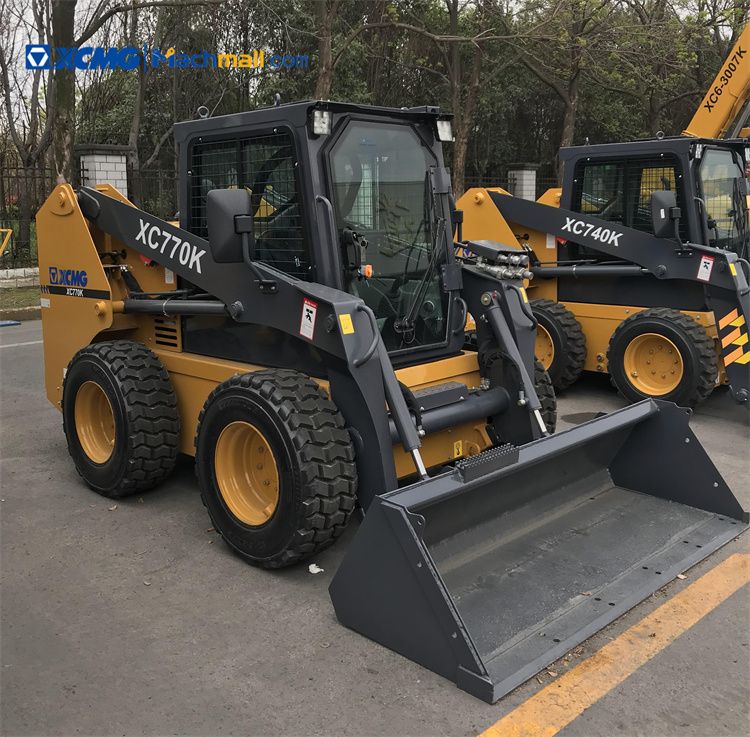

XCMG Skid Steer Loader for Asphalt Concrete Paving and Milling.

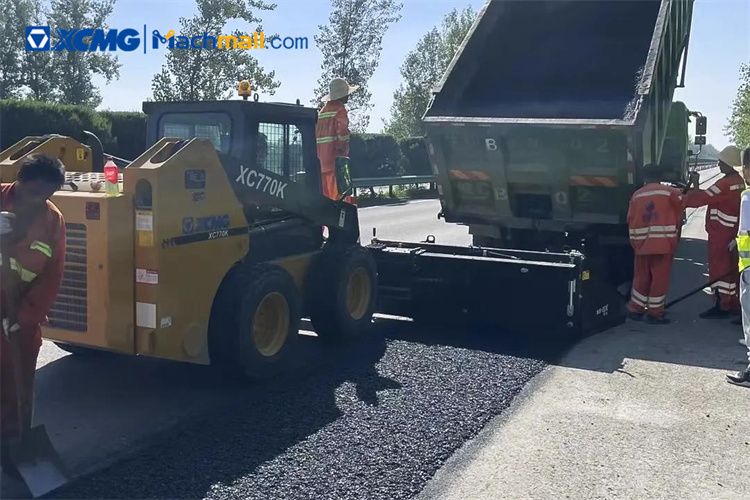

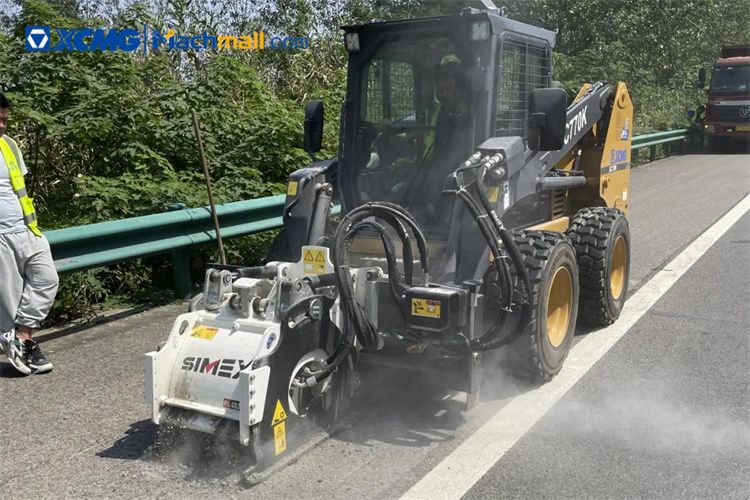

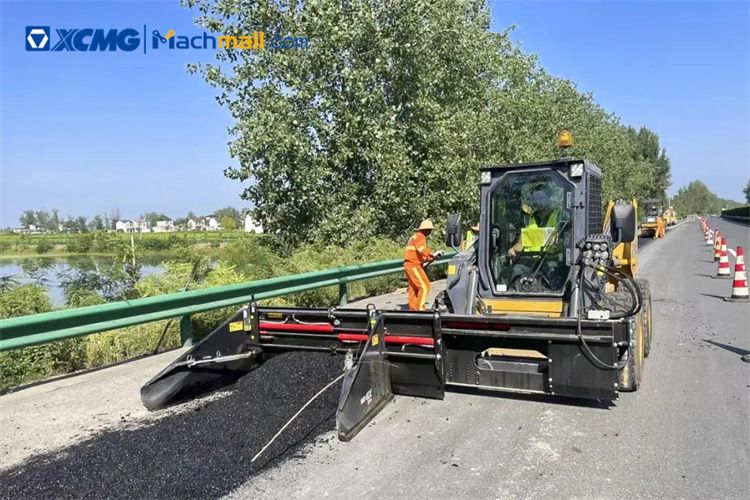

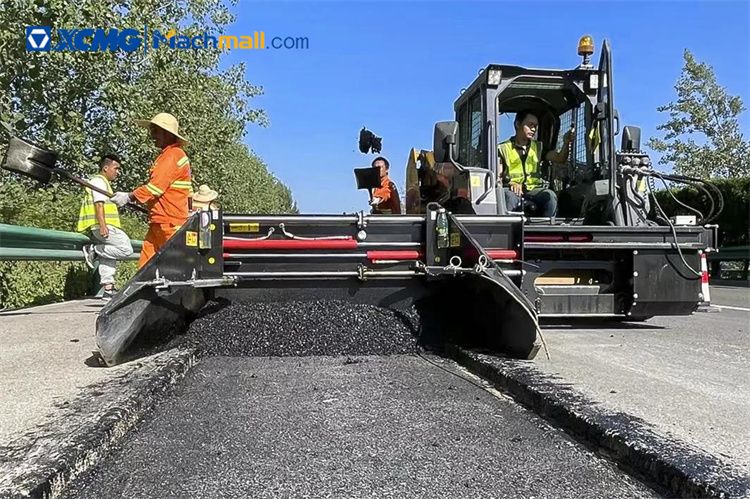

XCMG XC770K skid steer loader can efficiently adopt various attachments, suitable for asphalt and concrete road maintenance. The milling machine motor can reach 61 horsepower, which can meet the high-level construction with a milling width of 45 cm and a maximum milling depth of 17 cm. has a maximum paving width of 1.65 meters, and the side slab angle can be adjusted arbitrarily.
With high-power engine, XCMG XC770K has strong horsepower and high fuel efficiency. The increased flow of the whole machine provides a strong power guarantee for efficient operation of attachments; the enlarged wheelbase ensures stability and safety under high loads.
XCMG XC770K skid steer loader has the characteristics of one machine and multiple functions. Its quick-change device can quickly switch between different attachments during road maintenance, and efficiently complete different tasks, greatly reducing the user’s investment in single-function equipment.
The construction efficiency is increased by more than 5 times than that of manual labor, which greatly reduces the construction cost. Compared with the operation of large-scale paving equipment, it occupies a smaller lane space and minimizes the hidden traffic hazards caused by closed roads.
![]()
|
Description
|
|
Unit
|
Parameter value
|
|
Rated load
|
|
kg
|
1080
|
|
Tipping load
|
|
kg
|
2160
|
|
Operating weight
|
|
kg
|
3450
|
3700
|
3650
|
|
Maximum breakout force
|
|
kN
|
22
|
|
Engine
|
Rated power
|
Hp/kw
|
82.2/61.3
|
80/60
|
80/60
|
|
|
Rated speed
|
rpm
|
2500
|
2300
|
2400
|
|
|
Cooling mode
|
|
Water-cooling
|
|
Performance parameter
|
Operation mode
|
|
Pilot hydraulic control & multi-function electronic control
|
|
|
Tire standard
|
|
12-16.5
|
|
|
Maximum speed
|
Km/h
|
12.5
|
|
Hydraulic system
|
Hydraulic flow rate
|
L/min
|
95
|
87.4
|
91.2
|
|
|
Optional large flow
|
|
142.5
|
131
|
136.8
|
|
|
Hydraulic pressure
|
bar
|
210
|
|
Maximum operating height
|
|
mm
|
4180
|
|
Bucket hinge pin height
|
|
mm
|
3205
|
|
Cabin top height
|
|
mm
|
1960
|
|
Maximum horizontal height of bucket bottom
|
|
mm
|
2997
|
|
Length without bucket
|
|
mm
|
2660
|
|
Length with bucket
|
|
mm
|
3610
|
|
Toppling angle
|
|
.
|
40
|
|
Maximum unloading height
|
|
mm
|
2450
|
|
Ground-bucket angle
|
|
.
|
30
|
|
Rotating angle of bucket at highest point
|
|
.
|
83
|
|
Unloading distance
|
|
mm
|
570
|
|
Wheel base
|
|
mm
|
1188
|
|
Departure angle
|
|
.
|
25
|
|
Ground clearance
|
|
mm
|
205
|
|
Front radius of turning circle (without bucket )
|
|
mm
|
1320
|
|
Front radius of turning circle (with bucket)
|
|
mm
|
2230
|
|
Rear radius of turning circle
|
|
mm
|
1715
|
|
Length of tail
|
|
mm
|
1055
|
|
Wheel track
|
|
mm
|
1500
|
|
Tire edge width
|
|
mm
|
1807
|
|
Bucket edge width
|
|
mm
|
2000
|
|
Bucket capacity (stacking height)
|
|
m3
|
0.6
|
|
Bucket capacity (tiling)
|
|
m3
|
0.47
|
|
Diesel tank capacity
|
|
L
|
95
|
|
Capacity of hydraulic oil tank
|
|
L
|
70
|
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
