XCMG 3 5 7 8 10 ton Wheel Loader with Log Forks and Grapples for sale
$30000.00-$80000.00
1 / EA
(Min. Order)
Shipping
Support Sea freight · Land freight · Air freight
XCMG was founded in 1943. XCMG products include: excavators, loaders, cranes including earth-moving machinery, road machinery, concrete machinery, mining machinery and other 12 construction machinery.
Summary
Rated Load:
3-10tons
Type:
Loader with log forks and grapples
Place of Origin:
Xuzhou, China
Brand Name:
XCMG
Certification:
CE / ISO
![]()

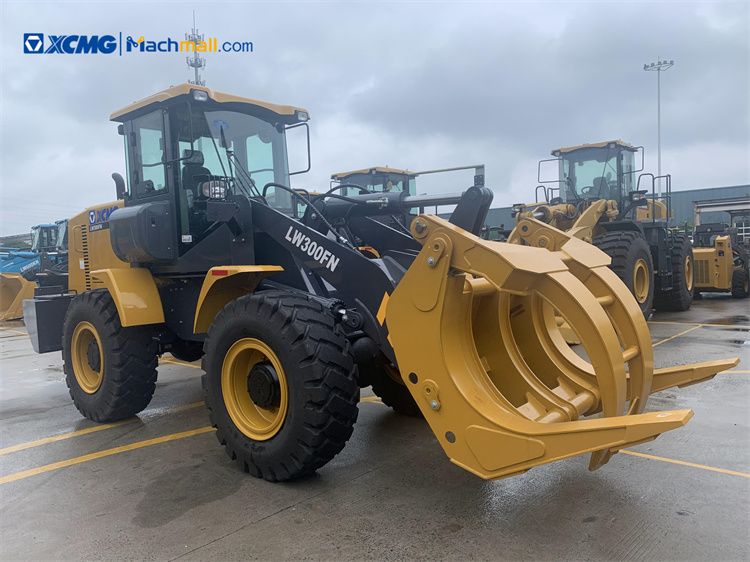

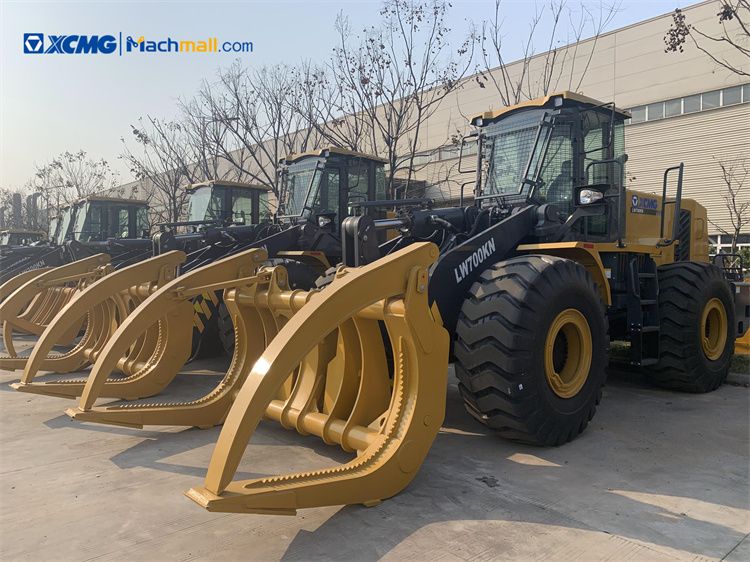

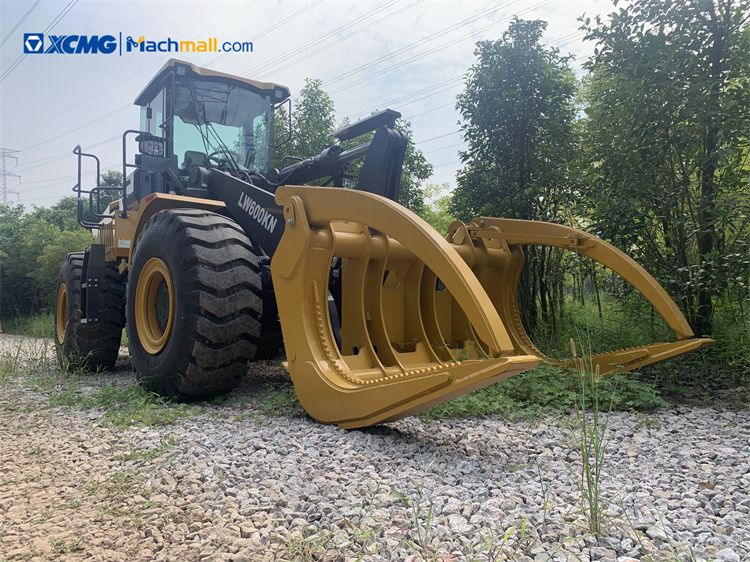

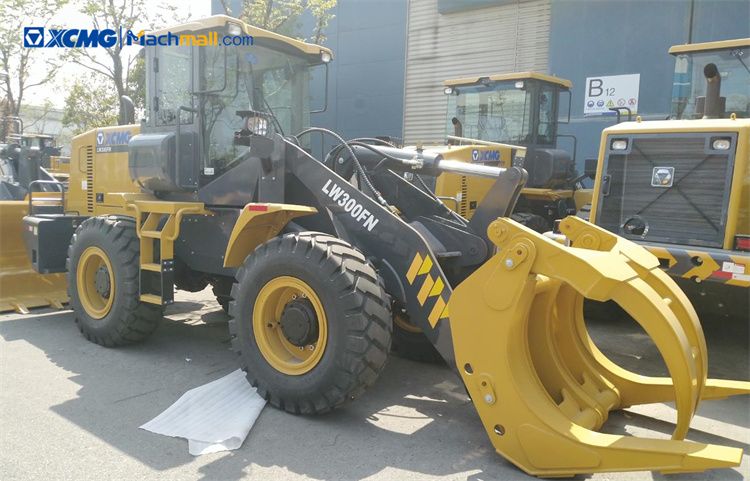

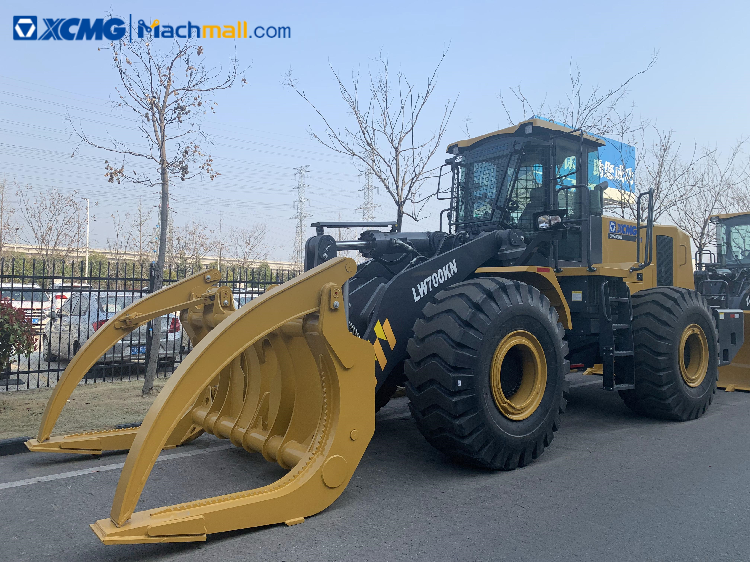

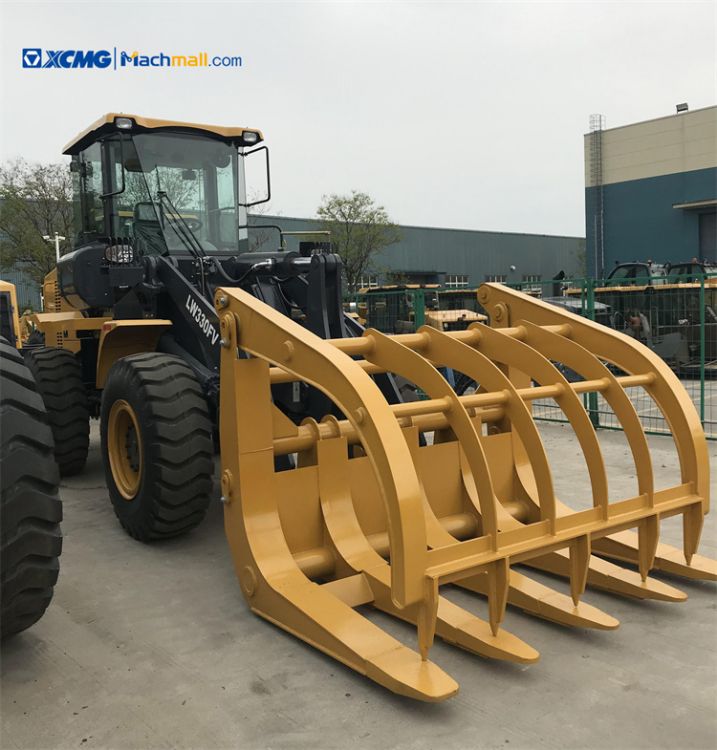

XCMG 3 5 7 8 10 ton Wheel Loader with Log Forks and Grapples.

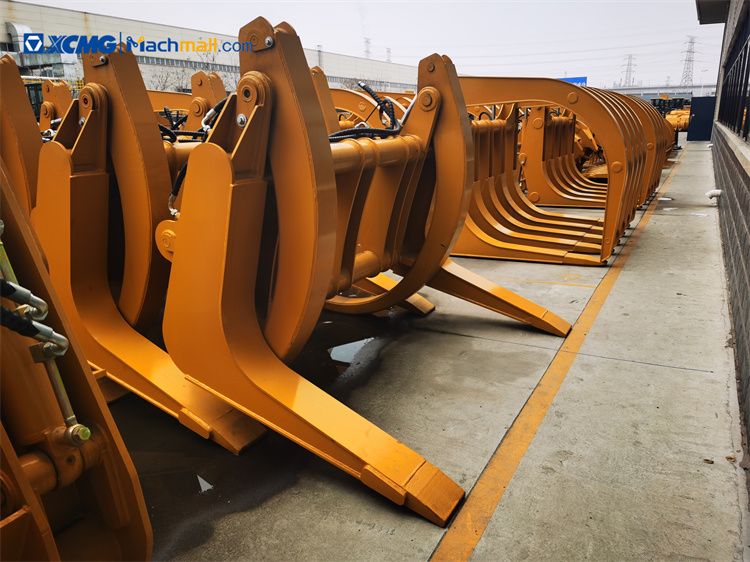

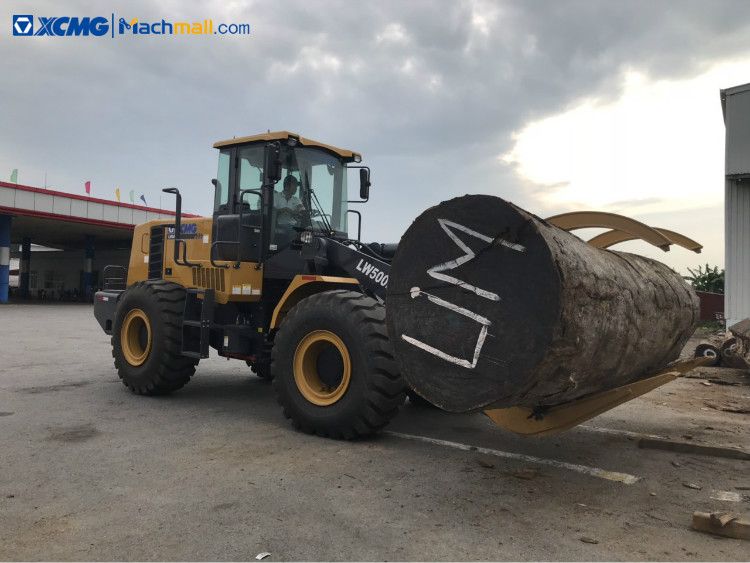

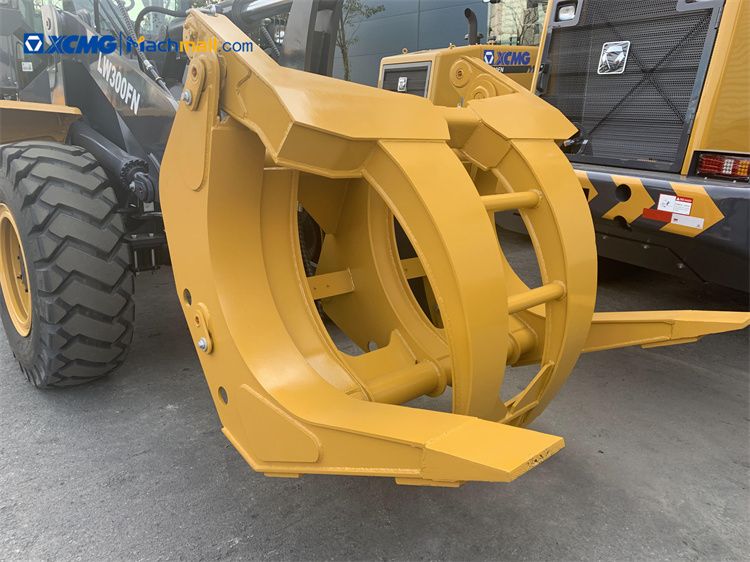

XCMG wheel loader with log forks and grapples has comprehensive functions and a wide range of applications, customization supported according to working condtions, It is the most widely used clamp type for loading and unloading wood in large ports, logistics, and primitive forests. This loader is suitable for large-scale log grabbing and transfer operations.
![]()
|
Description
|
Parameter Value
|
Unit
|
|
Model Number
|
LW700KN
|
LW800KN
|
LW1100KN
|
/
|
|
Min grabbing diameter
|
1000
|
1000
|
1085
|
mm
|
|
Discharge height
|
2934
|
3116
|
3098
|
mm
|
|
Discharge distance
|
1656
|
1888
|
1653
|
mm
|
|
Max discharge angle
|
46
|
46
|
49
|
。
|
|
Max opening size
|
2672
|
2880
|
2616
|
mm
|
|
tool dimension(L*W*H)
|
2689*2220*1822
|
2689*2264*1822
|
2740*2295*1830
|
mm
|
|
tool weight
|
2283
|
2283
|
3038
|
kg
|
|
working height
|
24700
|
28500
|
34600
|
kg
|
|
Engine power
|
226
|
250
|
291
|
kw
|
|
Wheel base
|
3500
|
3600
|
3700
|
mm
|
|
Whole machine dimension(L*W*H)
|
9265*3035*3620
|
9503*3210*3770
|
10307*3200*3950
|
mm
|
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
