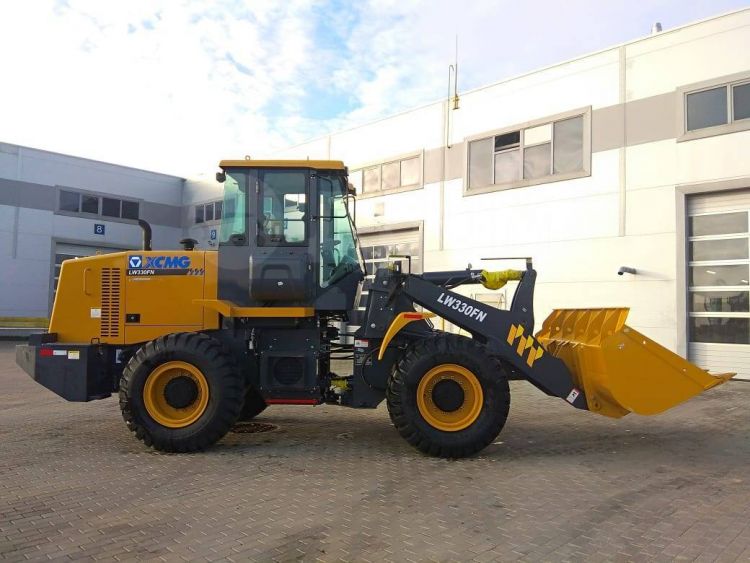

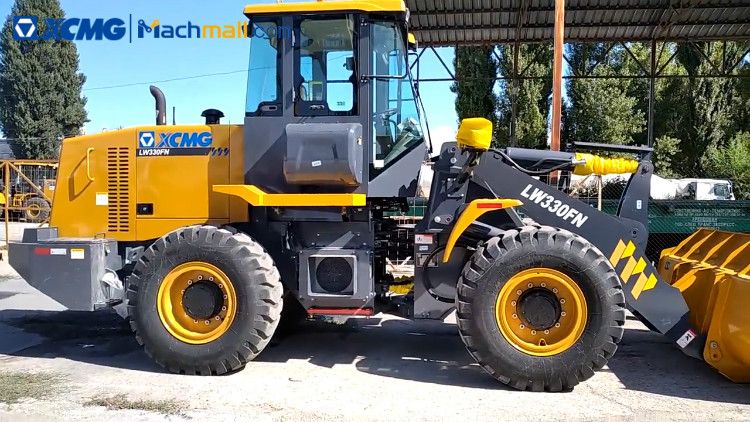

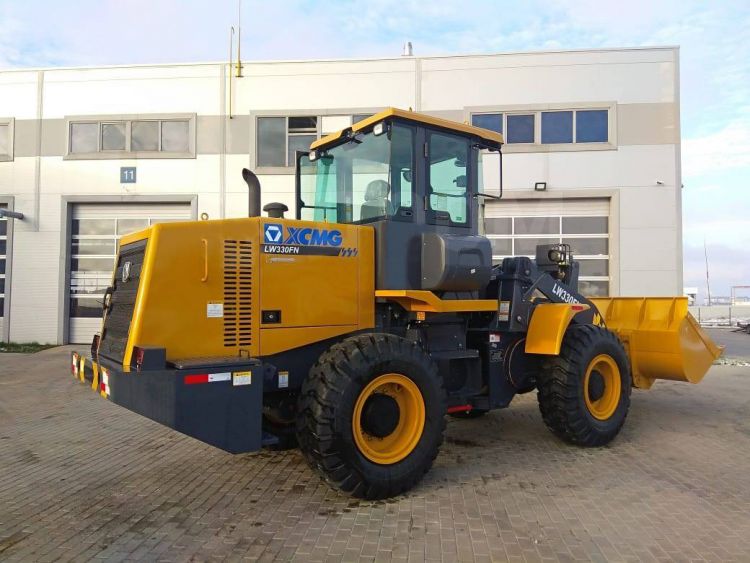

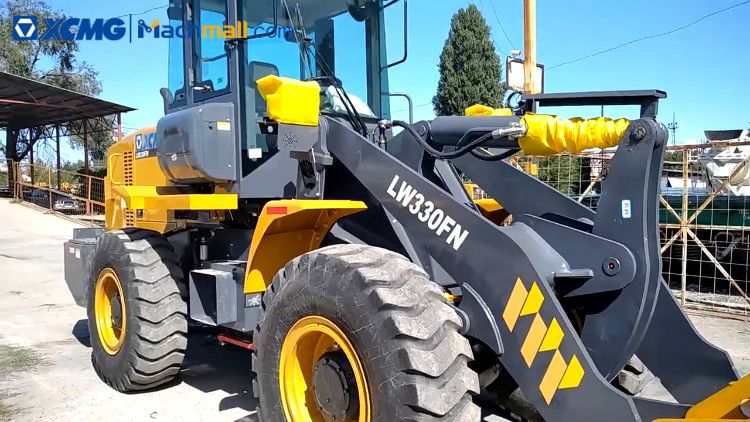

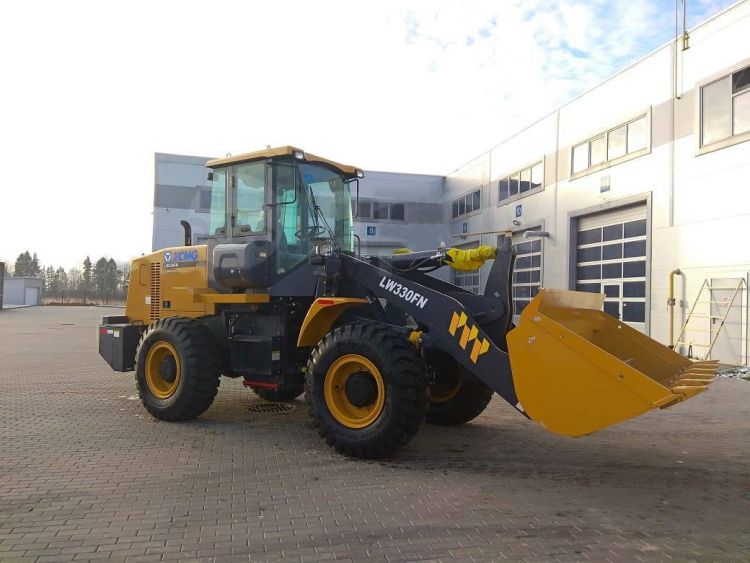

XCMG 3 ton compact wheel loader LW330FN.
XCMG LW330FN compact wheel loader is characterized by low energy consumption, low emissions, high efficiency, excellent control comfort, ease of repair, high efficiency, significantly increased mechanical characteristics, significantly reduced vibration and noise levels.
Therefore, LW330FN loader is characterized by high economic efficiency, features great strength, high efficiency and long service life,ect, and is applicable to various conditions.
Great strength
1, Tilt cylinder bore of 160mm, enlarge the boom cylinder bore from 110mm to 125mm, and increase the boom lifting force by 29%.
2, 12-ton strong tilt drawing force guarantees the outstanding adaptation to various tough conditions.
3, 7-ton strong boom lifting force ensures various operation methods of high intensity.
High efficiency
1, The adopted 125 work pump features large displacement, strong oil supply, and the total time of three devices is only 10.3s.
2, The turning radius is only 5420mm, short running distance, fast loading speed, saving the fuel and high efficiency.
3, Single pump distribution, load-sensing steering, large flow, enough power, simple and high efficiency.
Long service life
1, The key articulated positions feature two-stage dust-proof, less abrasion and longer service life.

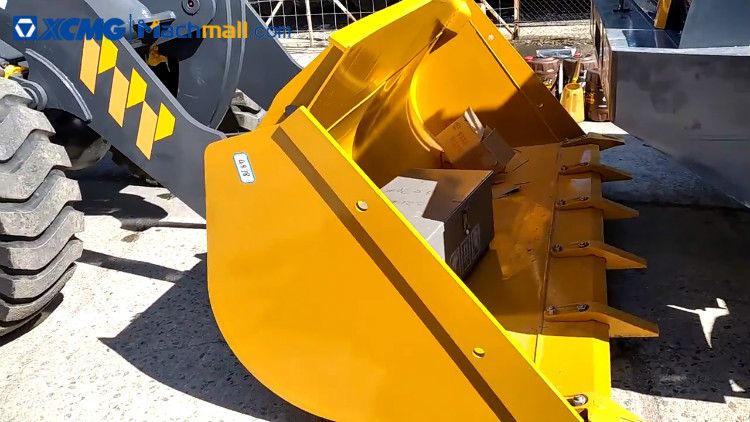

2, Wear resistant blade and bucket teethfeature longer service life.
3, The hydraulic pipe adopts 24° cone and O ring, settling the issue of leakage.
4, Easily worn oil pipe is equipped with the protective bush, prolonging the service life.
![]()
|
Item
|
Parameters
|
Unit
|
|
Rated operating load
|
3300
|
kg
|
|
Bucket capacity
|
2.1(1.8~2.5)
|
m3
|
|
Machine weight
|
10600
|
kg
|
|
Dump clearance at maximum lift (ground to main cutting plate)
|
2850
|
mm
|
|
Reach at maximum lift (front wheel to main cutting plate)
|
1080
|
mm
|
|
Wheelbase
|
2900
|
mm
|
|
Tread
|
1850
|
mm
|
|
Hingeaxle height at lifting limit
|
3830
|
mm
|
|
Machine height
|
3320
|
mm
|
|
Maximum traction force
|
95
|
kN
|
|
Hydraulic cycle time-raise
|
5.5
|
s
|
|
Total cycling time
|
10
|
s
|
|
Minimum turning radius (over tire)
|
5170
|
mm
|
|
Articulation angle
|
±38
|
°
|
|
Gradeability
|
28
|
°
|
|
Tire specification
|
17.5-25-12PR
|
|
|
Overall dimensions (length x width x height)
|
7470*2482*3320
|
mm
|
|
Engine model
|
WP6G125E22
|
|
|
Emission standard
|
China II
|
|
|
Rated power/rotate speed
|
92/2200
|
kW/rpm
|
|
Capacity of fuel tank
|
185
|
L
|
|
Capacity of hydraulic oil tank
|
165
|
L
|
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
