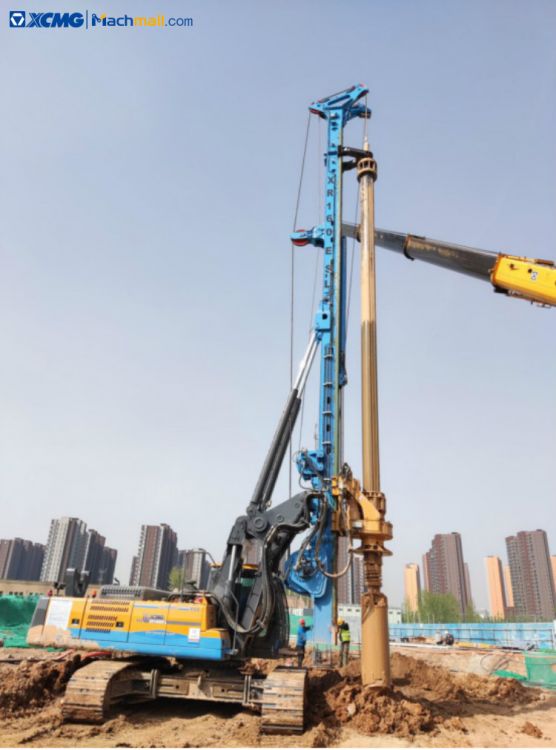

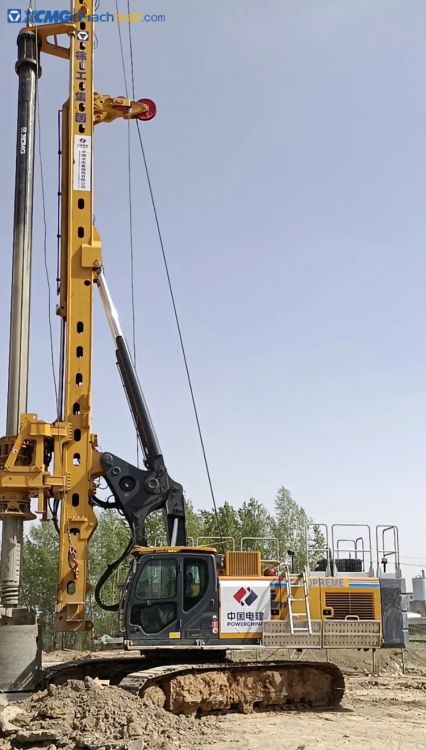

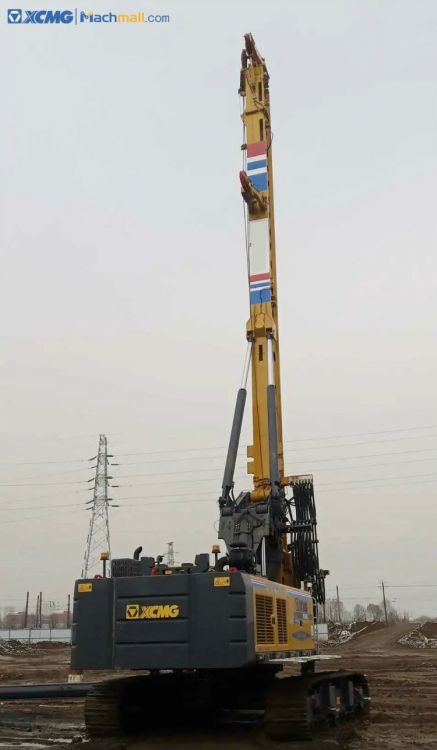

XCMG 160kn Small Multi-energy Hydraulic Rotary Drilling Rig Machine XR160E.
1, XCMG 160kn Small Multi-energy Hydraulic Rotary Drilling Rig Machine XR160E: One machine multi-energy, can achieve cylinder pressure, rolling pressure, long spiral, double power head and other functions to quickly switch, To meet the needs of more different projects;
2, The configuration of Cummins electric turbo engine, strong power, convenient and fast service;
3, The maximum output torque of the powerhead can reach 160kN.m, speed up to 35r/min, higher operating efficiency;
4, Powerhead optional with high-speed soil-throwing function;
5, The main and sub-rolled are using single-row rope technology, wire rope life than multi-layer rope 2 to 4 times longer, lower cost of use;
6, The use of the two-boom large parallelly deformed mechanism, large support angle, support range increased by 24%, more stable operation;
7, A hydraulic main system using negative flow control technology, fast response, good handling performance;
8, High-power dual hydraulic oil cooler, to meet the high-temperature area construction;
9, Intelligent control system to achieve the verticality of the drill mast automatic adjustment and display, automatic swing, automatic soil and other functions;
10, The use of TDP series rotary drilling rig dedicated hydraulic track chassis, large-diameter swing support, better work stability.
![]()
|
Project.
|
Unit.
|
Parameters.
|
|
The working parameters.
|
|
|
|
Maximum drilling diameter.
|
Mm.
|
1500 / 1300
|
|
Maximum drilling depth.
|
M.
|
56。
|
|
Engine parameters.
|
|
|
|
Model.
|
-
|
QSB7.
|
|
Rated power.
|
kW.
|
150。
|
|
Power head parameters.
|
|
|
|
Maximum output torque.
|
kN.m.
|
160。
|
|
Speed.
|
r/min.
|
5-35。
|
|
Pressurized cylinder parameters.
|
|
|
|
Maximum pressure.
|
Kn.
|
160。
|
|
Maximum lift force.
|
Kn.
|
160。
|
|
Maximum travel.
|
M.
|
4.2。
|
|
Pressurized roll-up parameters.
|
|
|
|
Maximum pressure.
|
Kn.
|
160*
|
|
Maximum lift force.
|
Kn.
|
180*
|
|
Maximum travel.
|
M.
|
13*
|
|
The main roll-up parameter.
|
|
|
|
Maximum lift force.
|
Kn.
|
160。
|
|
Maximum roll-up speed.
|
m/min.
|
80。
|
|
Sub-roll-up parameters.
|
|
|
|
Maximum lift force.
|
Kn.
|
60。
|
|
Maximum roll-up speed.
|
m/min.
|
80。
|
|
Drill mast tilt side/forward/back tilt.
|
°
|
4/5/15.
|
|
Chassis parameters.
|
|
|
|
Maximum walking speed.
|
km/h.
|
2.5
|
|
Maximum climb.
|
%
|
40
|
|
Track plate width.
|
Mm.
|
700
|
|
The maximum total width of the track.
|
Mm.
|
2960-4200
|
|
System parameters.
|
|
|
|
Work pressure.
|
MPa.
|
35
|
|
The quality of the whole machine.
|
T.
|
53
|
|
Dimensions.
|
|
|
|
The working state.
|
Mm.
|
7862 x 4200 x 19028.
|
|
The shipping status.
|
Mm.
|
14053 x 2960 x 3295.
|
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
