XCMG WZ30-25 small back hoe loader backhoe with price
$37270.00-$37270.00
1 / EA (Min. Order)
Payment
Shipping
Support Sea freight · Land freight · Air freight
XCMG E-commerce Inc.
Follow
XCMG was founded in 1943. XCMG products include: excavators, loaders, cranes including earth-moving machinery, road machinery, concrete machinery, mining machinery and other 12 construction machinery.
Recommendation
Summary
Rated Load: 2500kg
Dimension(Long*Breadth*High): 8000*2310*3424mm
Type: Backhoe Loader
Place of Origin: Xuzhou, Jiangsu, China
Model Number: WZ30-25
Brand Name: XCMG
Certification: CE/ISO90001

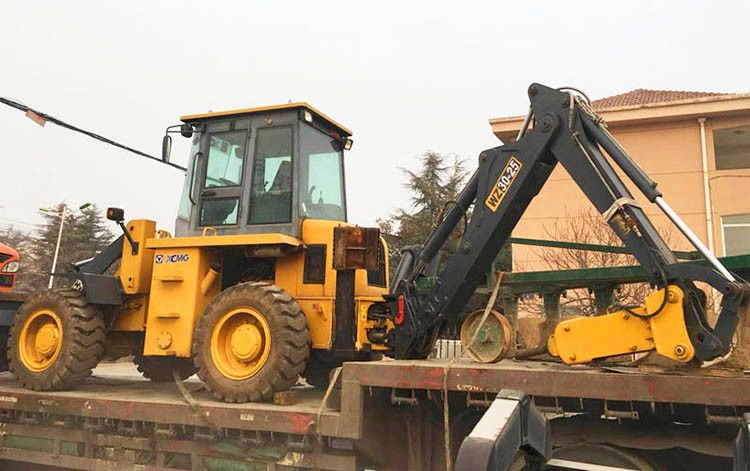

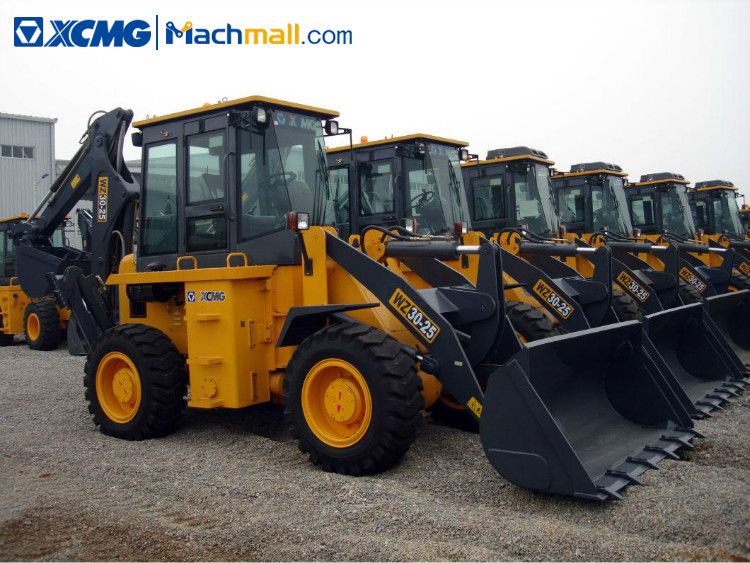

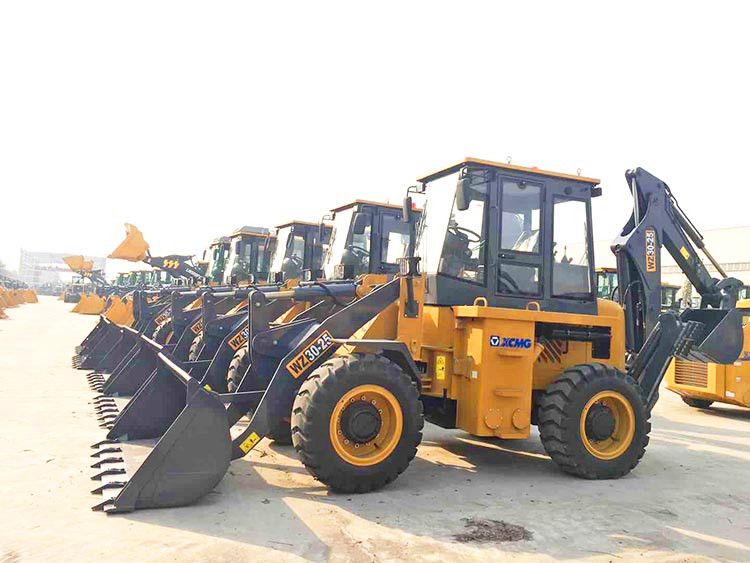

XCMG WZ30-25 small back hoe loader backhoe.



XCMG backhoe loader WZ30-25 is a new multi-function engineering machine which gathering the loading and excavating in the integral whole machine. XCMG backhoe loader WZ30-25 is the new generation model of the development based on the same kind product technique in domestic and international. XCMG backhoe loader WZ30-25 adopted four wheel drive, hydraulic torque converter, hydraulic steering system, hydraulic.

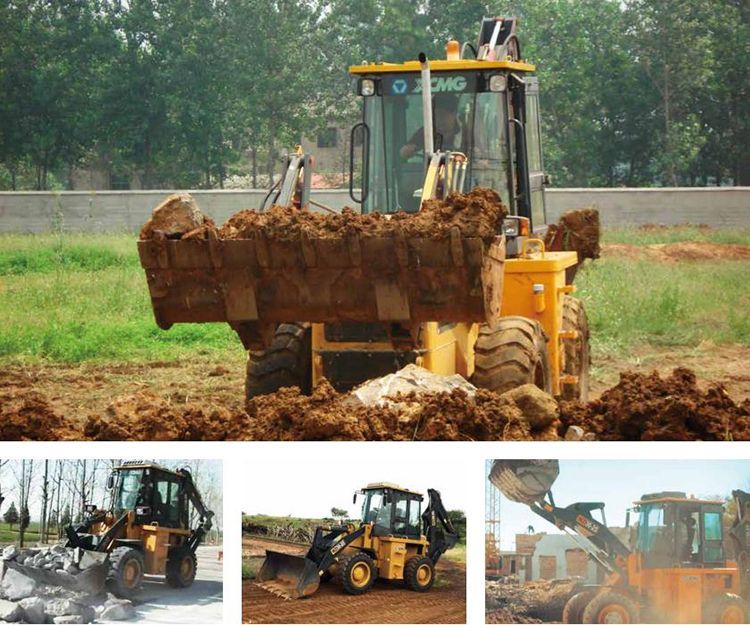

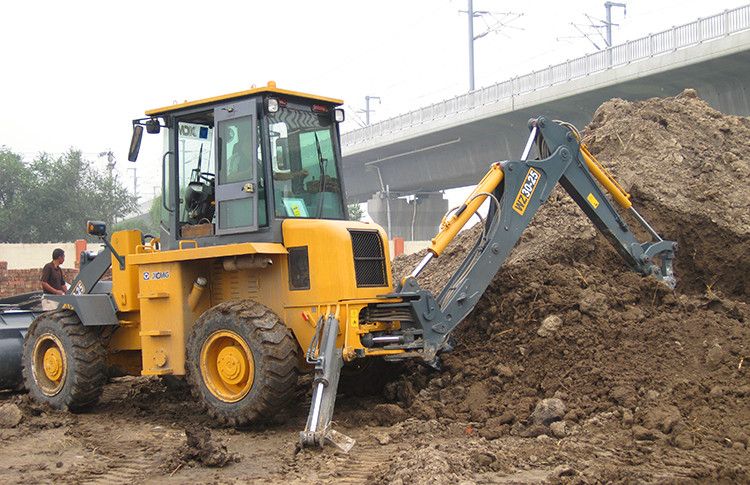

XCMG backhoe loader WZ30-25 is extensively used in the road maintenance, farm and developments, getting clay for making bricks, piping builds, the cable builds, park virescence and the excavating of the road opens to dig etc.



Model Characteristics:



1. The Yucai engine



* Low noise, low exhaust gas, low west, green environmental protection, driving motive, good reliability.

* XCMG backhoe loader WZ30-25 can make in time brake automatically,so it is more safety.



2. Humanization designs



* The hand handle layout reasonable, manipulating is portable;steer device, gauge dish and the chair all can be adjusted in up-down and front-back directions according to your sense, so it is comfortable.

* XCMG backhoe loader WZ30-25's wheels has well cling, so the machine has good span and cross capability.



3. Optimized load work device



* Lavelling bucket automati-cally in unload position, lacenning labor intensity,and the work range is larger, workfore is more study and steady, the work efficiency is higher.



XCMG backhoe loader WZ30-25 optional parts:

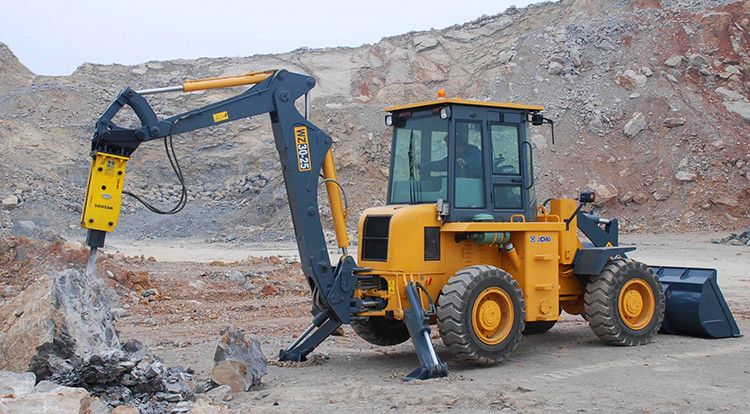

4 in 1 bucket/ hammers/ Snow plough/ Augers.

Description
Unit
WZ30-25
Bucket capacity(heaped)
1
Digger capacity
0.3
Dumping clearance
mm
2650
Dumping reach
mm
930
Max.steering angle
°
±35
Max.steering angle of dig working device
°
±85
Traceing speed I / II / III / IV
km/h
0-6.2 / 0-12 / 0-20 / 0-30
Back I / II speed
km/h
0-8 / 0-28.5
Diesel Model

YC4A110-T310/YC41390-T20
Modality

4-stroke water-cooled inline type/4-stroke water-cooled inline type
Rated power
kW
73.5 (Turbocharged)/65
Rated speed
r/min
2200
Wheel base
mm
2600
Tread
mm
1700
Tires

16/70-24
Max.digging depth
mm
4400
Max.digging radium
mm
5471
Overall dimensions(L×W×H)
mm
8000×2310×3424
Operating weight
kg
9500
