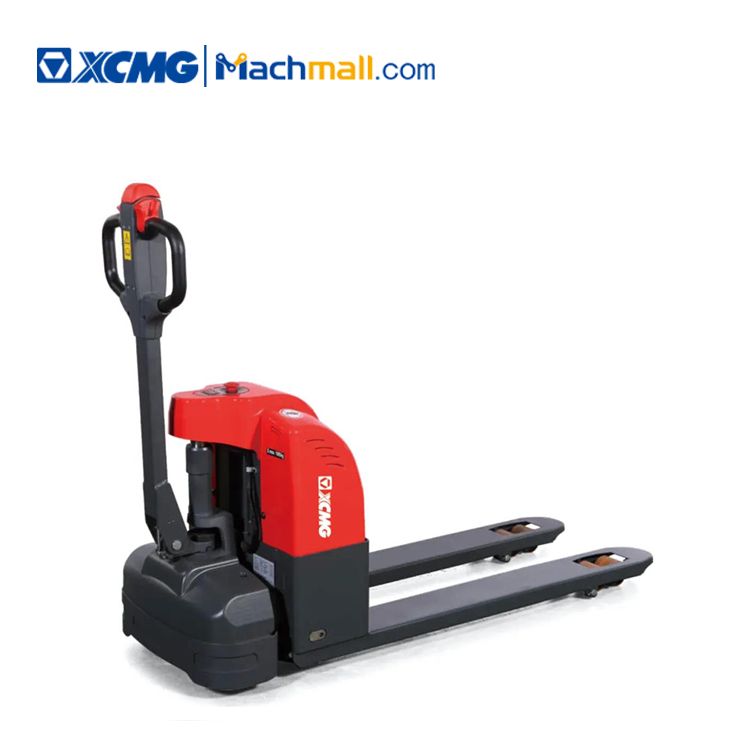

XCMG 1.5 ton mini electric walking pallet truck XCC-PW15.
XCMG electric pallet truck XCC-PW15 is an economical electric pallet truck with a rated load of 1500kg;
Compact and lightweight body design, XCMG electric pallet truck XCC-PW15 is suitable for a variety of low-intensity load applications in warehouses or for transport applications on pallet trucks with lifting tail plates.

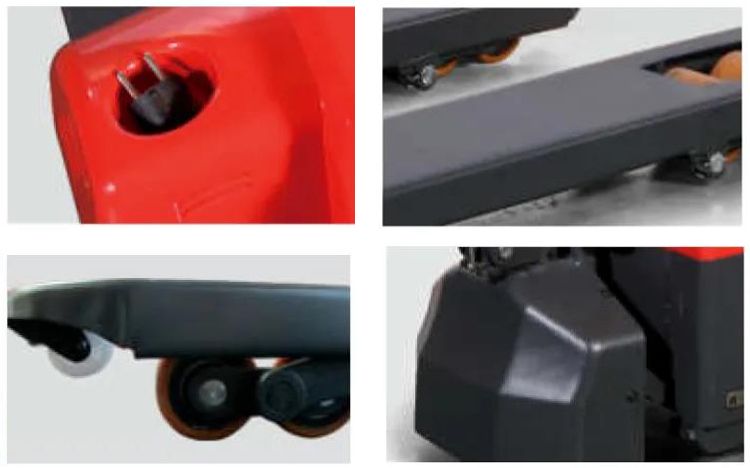

Product highlight:
1. Ideal solution for low intensity load applications;
2. Built-in charger with high autonomy;

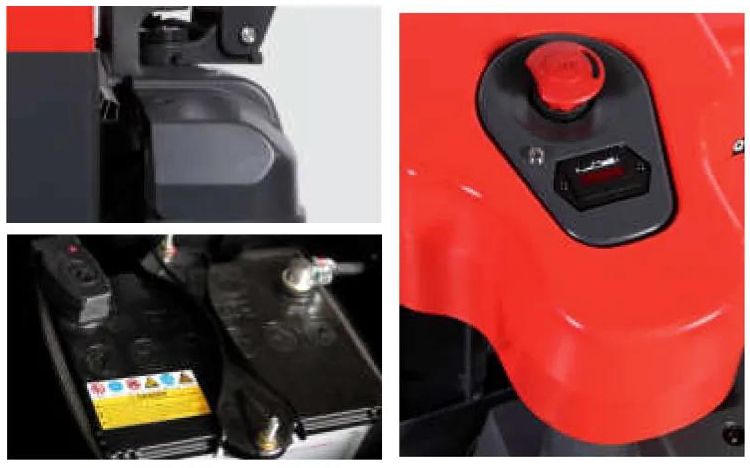

3. The battery meter has the function of automatically cutting off the lifting action at low voltage, which prolongs the life of the battery;
4. Additional stabilization wheels ensure stable operation of the vehicle.
![]()
|
Item
|
Unit
|
XCC-PW15
|
|
power
|
|
electric
|
|
Operation method
|
|
Walking
|
|
Rated load capacity
|
kg
|
1500
|
|
Load center distance
|
mm
|
600
|
|
Front overhang
|
mm
|
946
|
|
Wheelbase
|
mm
|
1293
|
|
Weight
|
kg
|
190/200
|
|
wheel
|
|
PU
|
|
Stabilizing wheel (size)
|
mm
|
50(80)*30
|
|
Lifting height
|
mm
|
115
|
|
Fork size
|
mm
|
48*160*1220/1150
|
|
Minimum ground clearance
|
mm
|
37/32
|
|
Minimum turning radius
|
mm
|
1445/1460
|
|
Driving speed
|
km/h
|
4.2/4.4
|
|
Lifting speed
|
km/h
|
0.03/0.053
|
|
Lowering speed
|
km/h
|
0.049/0.036
|
|
Lowering speed
|
km/h
|
4/10
|
|
Drive motor power
|
kW
|
0.45
|
|
Increase motor power
|
kW
|
0.8
|
|
Battery voltage/capacity
|
V/Ah
|
2*12V/64
|
|
Battery weight
|
kg
|
48
|
|
Drive control mode
|
|
DC brush-less control
|
![]()
![]()
![]()
![]()
![]()
![]()
