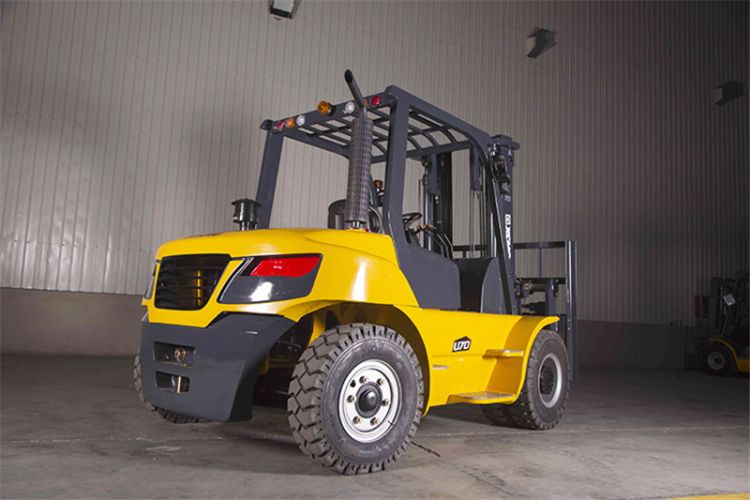

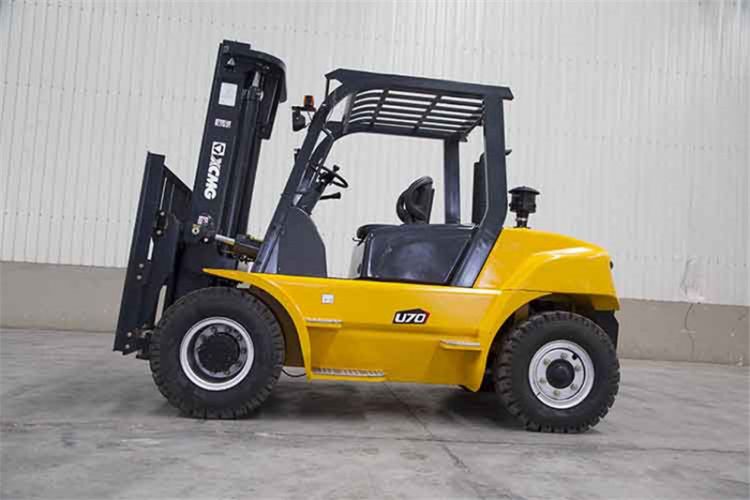

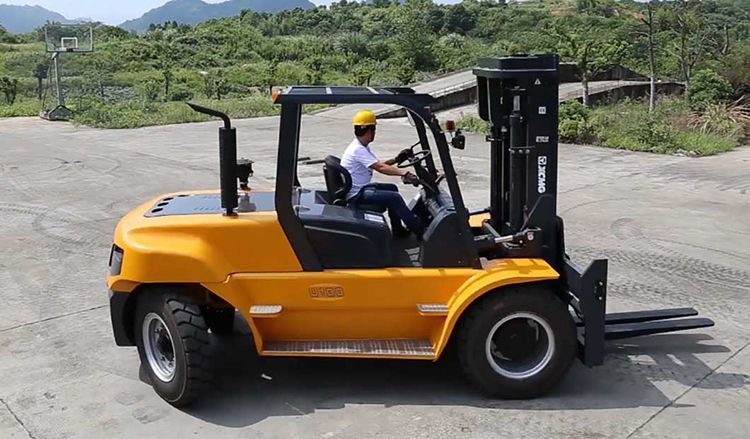

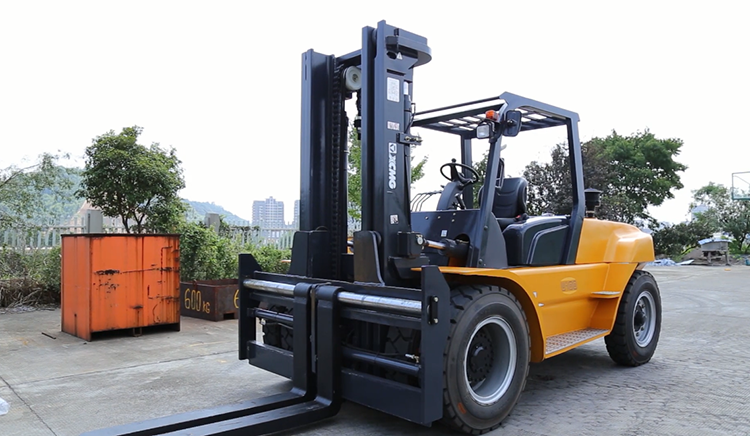

XCMG official 7 ton FD70T China diesel folklift truck.
XCMG forklift truck FD70T provide you with multiple choice as per your real need, we have different reliable engines for choice. All these engine have been tested that they can be trusted through all kinds of tough working condition and get recognition from millions of client across the worldwide.
These engines are specifically designed for the forklift use, with low fuel consumption, less noise and vibration, all these features improve the whole performance of the forklift.
XCMG forklift truck FD70T High efficiency is also delivered through the performance of the axles, the excellent brake system make sure the forklift operate with safety, the steering axle provide prompt and precise feedback to the driver when steering.
[Advantages and Highlights]:
1, One-piece designed of suspension frame.
2, XCMG forklift truck FD70T new water tank & cooling system.
3, Larger operation space. Optimized steering wheel, operating handle and pedals.
4, XCMG forklift truck FD70T high- efficiency hydraulic system, lower fuel consumption.
5, Enhanced wide view mast improves the work efficiency and operating safety.
![]()
|
Model
|
|
FD70T-H
|
FD70T-JF
|
FD70T-JI
|
FD70T-JT
|
|
Power Type
|
|
Diesel
|
|
Rated Load Capacity
|
Q(kg)
|
7000
|
|
Load Centre
|
C(mm)
|
600
|
|
Rated Lift Height
|
H3(mm)
|
3000
|
|
Free Lift Height
|
H2(mm)
|
152
|
|
Fork Size (L×W×T)
|
mm
|
1220×150×65
|
|
Mast Tilt Angle (F/R, α°/β°)
|
deg
|
6°/12°
|
|
Fork Overhang (Wheel Center to Fork Face)
|
X1(mm)
|
585
|
|
Rear Overhang
|
X2(mm)
|
720
|
|
Ground Clearance (Bottom of Mast)
|
H7(mm)
|
200
|
|
Length to Face of Fork (Without Fork)
|
L1(mm)
|
3590
|
|
Overall Width
|
B1(mm)
|
1995
|
|
Mast Lowered Height
|
H1(mm)
|
2615
|
|
Mast Extended Height (With Backrest)
|
H4(mm)
|
4437
|
|
Overhead Guard Height
|
H5(mm)
|
2415
|
|
Turning Radius (Outside)
|
Wa(mm)
|
3360
|
|
Min.Aisle width for pallets
|
Ast(mm)
|
5365
|
|
Travel Speed (No Load)
|
km/h
|
20
|
|
Lifting Speed (Full Load)
|
mm/sec
|
330
|
|
Total Weight
|
kg
|
9350
|
|
Battery
|
V/Ah
|
24/90
|
|
Engine Model
|
|
6102BG6
|
A-6BG1QC
|
QSB4.5
|
TCD3.6
|
|
Engine Manufacturer
|
|
CHAOCHAI
|
ISUZU
|
CUMMINS
|
DEUTZ
|
![]()
![]()
![]()
![]()
![]()
![]()
