Summary

Weight: 16000kg

Dimension(L*W*H): 6150*2300*3200mm

Power(W): 103kW

Model Number: XS163J

Brand Name: Xuzhou, Jiangsu, China

Place of Origin: China

Grade Ability: 30%

Travel Speed: 11.17km/h

Type: Vibratory Roller

Certification: CE/ISO9001

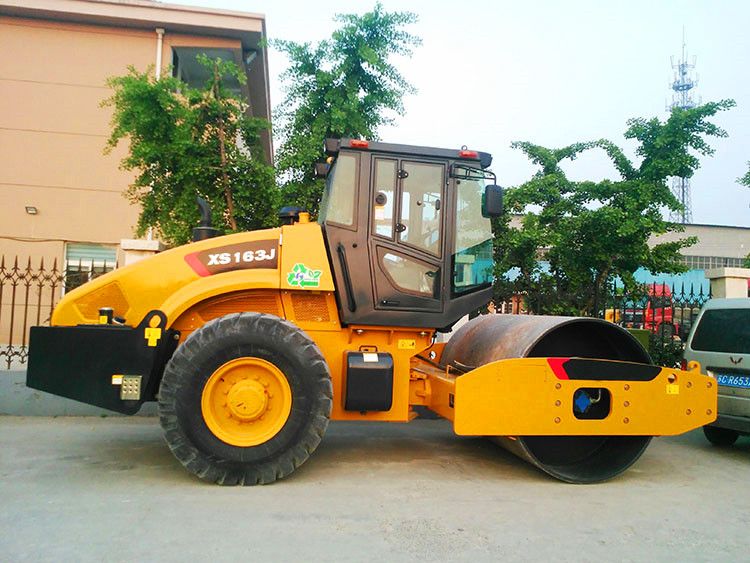

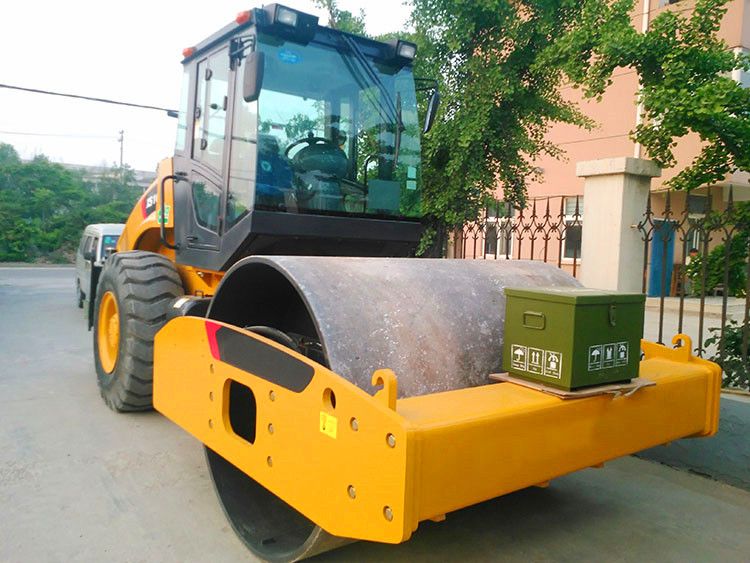

XCMG official 16 ton compactor roller XS163J.

XCMG compactor roller XS163J is also suitable to the compaction of concrete and stabilized soil base materials in various large projects; Thus, XCMG compactor roller XS163J is a kind of important compaction equipment in the construction of large projects such as the expressway, railway, mine, port, etc.

XCMG compactor roller XS163J has a very high static line load and exciting force and is suitable to the compaction operation of pebbles, sandy soils, moraine soil, blasting rock and clayey soil, etc.

Performance Characteristics:

1. XCMG compactor roller XS163J use the H-series, water cooling, low-speed diesel engine manufactured by Shanghai.

2. XCMG XS163J compactor roller adopt closed hydraulic drive system ensure better drive performance and gradeability.

3. Compactor roller XS163J use the mechanical gear box with synchro mesh unit to realize convenient operation.

4. Main clutch uses the heavy-duty special with a reliable performance and good maintainability.

5. XCMG compactor roller XS163J can meet the requirements of different working conditions.

Model	Unit	XS163J
Operating weight	kg	16000
Load applied on front drum	kg	7700
Static linear load	N/cm	362
Speed range	km/h	F/R
Gear I	km/h	2.85/2.88
Gear II	km/h	5.08/5.02
Gear III	km/h	11.17/-
Theoretical gradeability	%	30
Min. outer turning radius	mm	6500
Steering angle	°	±30
Swing angle	°	±11
Vibration frequency	Hz	28
Nominal amplitude (high/low)	mm	1.9/0.95
Exiting force (high/low amplitude)	kN	290/145
Engine model		Shanghai Diesel Engine SC4H140.192
Type		/
Max. power	kW	103
Hydraulic tank capacity	L	170
Fuel tank capacity	L	310
