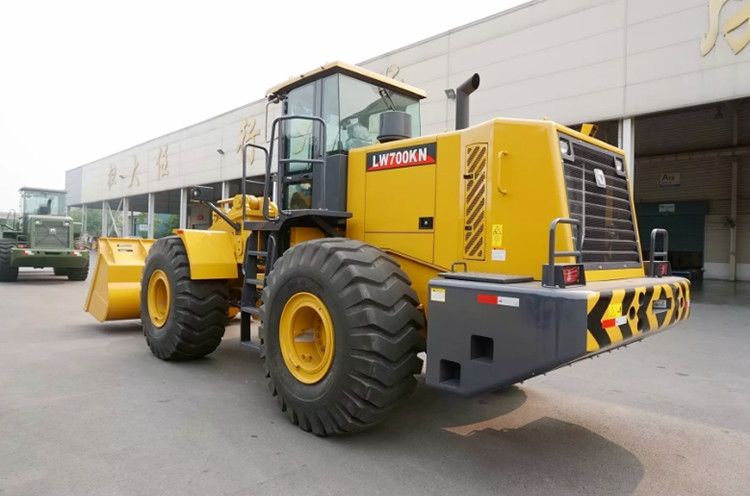

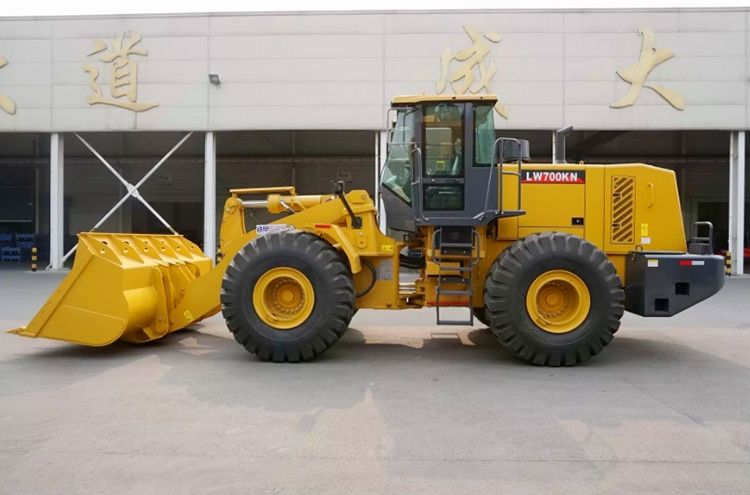

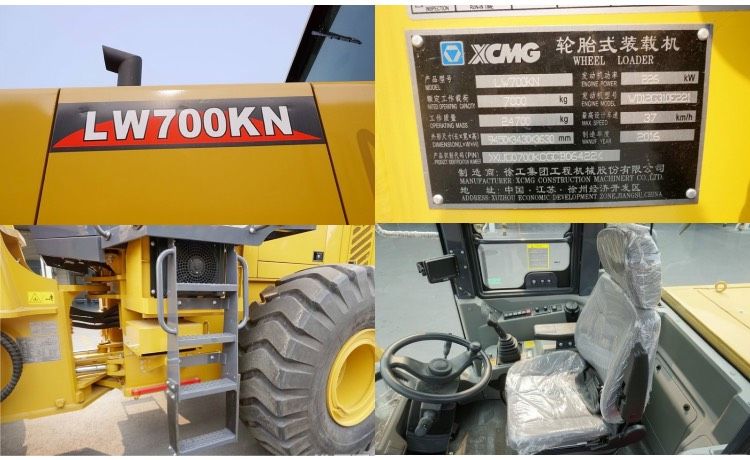

XCMG Official 7 Ton Wheel Loader Tractor Front Loader LW700KN China Loader Wholesale Price

LW700KN is XCMG's latest generation 7t loader product applied with XCMG’s exclusive globalized platform technology, with the comprehensive leadership in the fields of energy-conservation, efficiency, reliability, comfort, and maintainability. The corresponding models are designed respectively for the hard-heavy materials and light bulk materials to realize the best productivity and are extensively applicable for the production organizations in ports, and logistics enterprises.


Performance advantages:


* Higher power performance and efficiency, with maximum breakout force at 210kN, boom lifting time at ≤6.5s, and total cycle time at ≤11s.



* Coal loader: The 6.0m3 light material bucket works with extended boom to realize a dumping height of up to 3.5m.

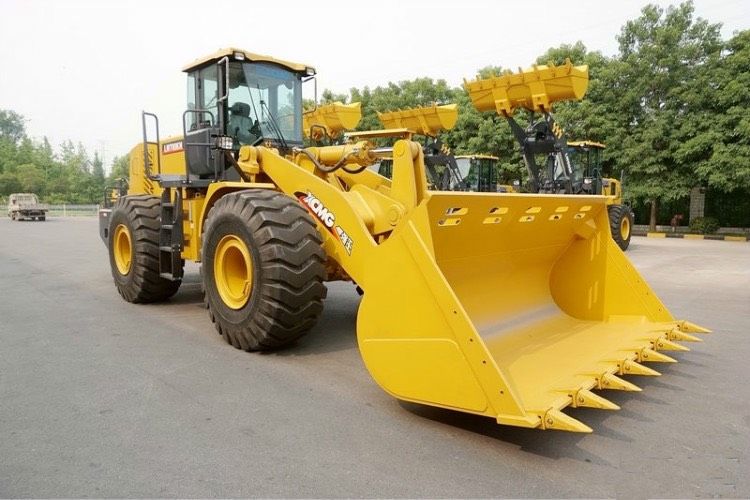

* Mine loader: The 3.5m3 mine bucket specially handles the hard materials (such as rock), featuring high wear resistance and higher reliability.

Model Characteristics:

* The latest cab features higher safety, broader visual field, and more comfortable operations.



* The scientifically matched and in-depth optimized drive system and the transmission and drive axle of international advanced quality achieve higher efficiency and reliability.



* The three-segment drive shaft is applied and the front drive shaft adopts the flexible connection to reduce the impact on drive shaft and improve the drive reliability.

Description

Unit

Parameter value

Wheel base

mm

3450

Tread

mm

2360

Dump clearance at maximum lift

mm

3515

Reach at maximum lift

mm

1388

Height of hinge at maximum lift height

mm

4780

Working height (fully lifted)

mm

6560

Overall machine dimension L×W×H

mm

9455×3430×3630

Rated operating load

kg

7000

Bucket capacity

6

Machine weight

kg

25500

Max. breakout force

kN

150

Max. horse power

kN

220

Lifting time of boom

s

6.5

Total cycle time

s

11

Minimum turning radius (at tire center)

mm

5920

Articulation angle

°

±40

Gradeability

°

28

Tyre size



26.5R25

Engine Model



WD12G310E221

Rated Power/Speed

kW/rpm

226/2100

Travel Speed

I-gear(F/R)

km/h

7/7

II-gear(F/R)

km/h

12.7/12.7

III-gear(F/R)

km/h

27/27

-gear(F)

km/h

38
