Summary

Weight: 6000 kg

Dimension(L*W*H): 2450x780x1100mm

Power(W): 36 KW

Model Number: XS600J

Brand Name: XCMG

Place of Origin: Xuzhou, Jiangsu, China

Grade Ability: -

Travel Speed: 2.1/7.2 Km/H

Static Linear Pressure: -

Type: Road Roller

Certification: -

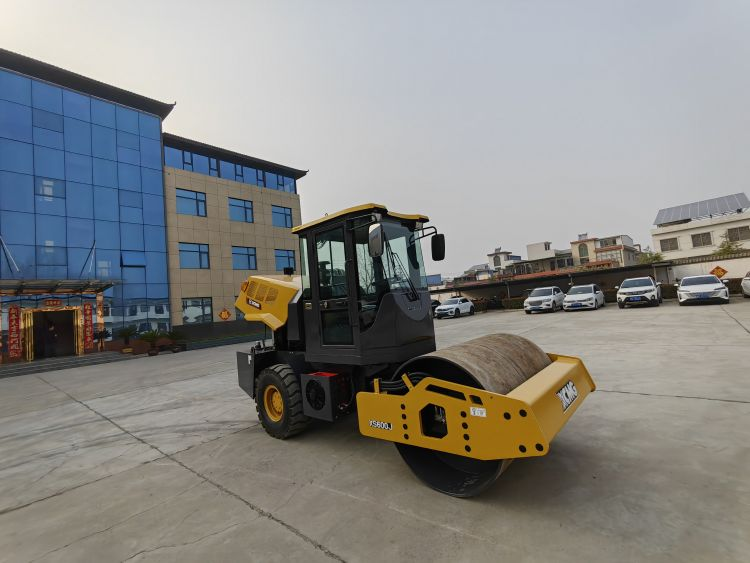

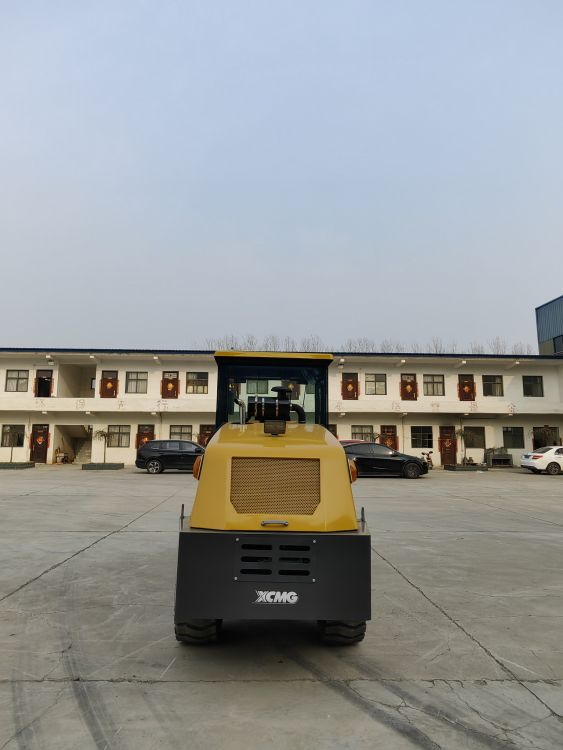

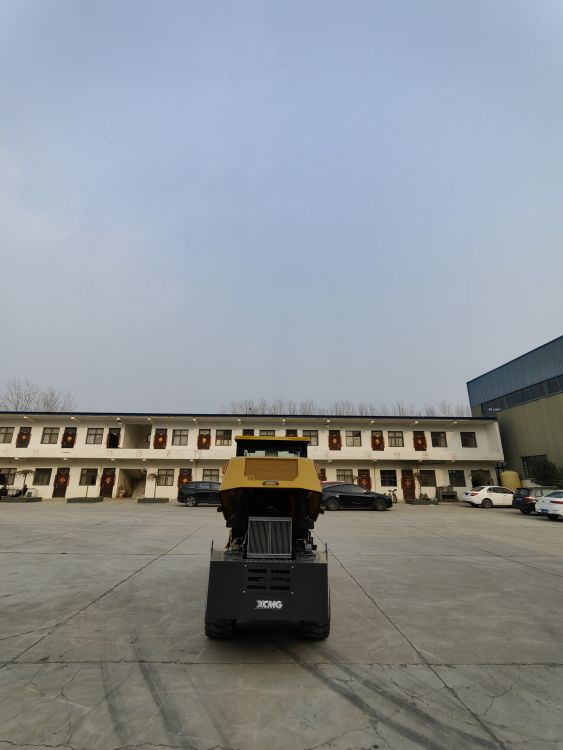

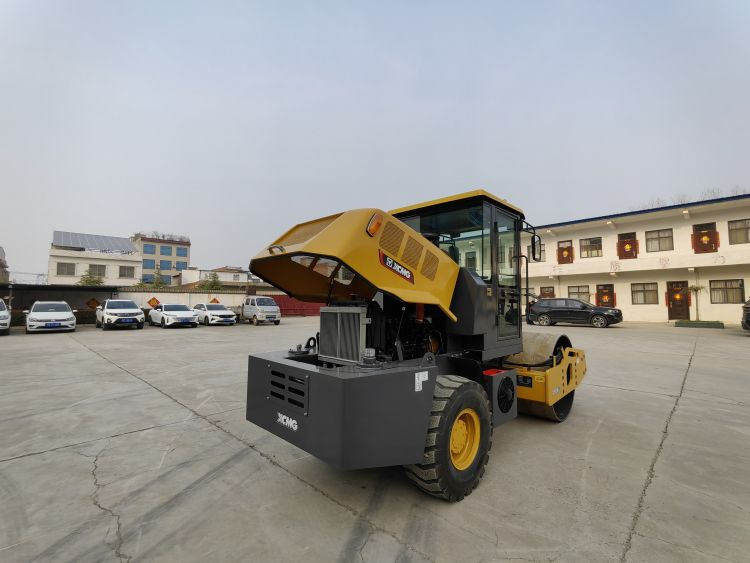

XCMG Official Used Factory 6 Ton Vibratory Small Roller XS600J Single Drum Road Roller Price

XS600J is a 6 ton mechanical single drum vibratory roller featuring mechanical driven rear wheel, hydraulic vibration of front drum and hydraulic steering, etc. It is predestined for applications in compacting base layers and hydraulic bound layers and filling materials as well as pebbles, sandy soils, moraine, blasting rocks and cohesive soils in small and medium job sites. Due to its high flexibility and maneuverability, performing unique superiority in limited working site and trench fill foundations.

The machine is powered by Changchai ZN490B four-cylinder water-cooled engine, apply to the working conditions of above -10℃ and below 2000 meters, complies with China Stage Ⅲ emission standards.

Changchai diesel engine provides high power and easy starting performance. Rear axle providing high traction torque allowing operation at high inclinations. No-clutch design, easy to operate, effectively reduce labor intensity. Power shift box has compact structure for accessible maintenance.

Item	Unit	XS600J
Operating weight	kg	6000
Front axle weight	kg	2400
Rear axle weight	kg	3600
Static linear load	N/cm	160
Operating speed	km/h	2.1/7.2
Theoretical gradeability	%	35
Minimum turning radius	mm	5000
Minimum ground clearance	mm	280
Wheelbase	mm	2380
Steering angle	°	±20
Oscillation angle	°	±5
Vibration frequency	Hz	50
Nominal amplitude	mm	0.5
Excitation force (H/L frequency)	kN	78
Drum diameter	mm	1060
Drum width	mm	1450
Model		Changchai ZN490B
Type		Inline four-cylinder water-cooled
Rated power	KW	36
Rated speed	r/min	2400
