XCMG 1.5ton Hydraulic Small Mini Articulated Wheel Loader Lw150fv for Sale
Chat Now
1 / Unit (Min. Order)
Payment
Shipping
Support Sea freight · Land freight · Air freight
XCMG E-commerce Inc.
Follow
XCMG was founded in 1943. XCMG products include: excavators, loaders, cranes including earth-moving machinery, road machinery, concrete machinery, mining machinery and other 12 construction machinery.
Recommendation
Summary
Rated Load: 1500kg
Dimension(Long* Breadth * High): 8150*2975*3467 mm
Type: front loader
Place of Origin: Jiangsu, China
Model Number: Lw150fv
Brand Name: XCMG

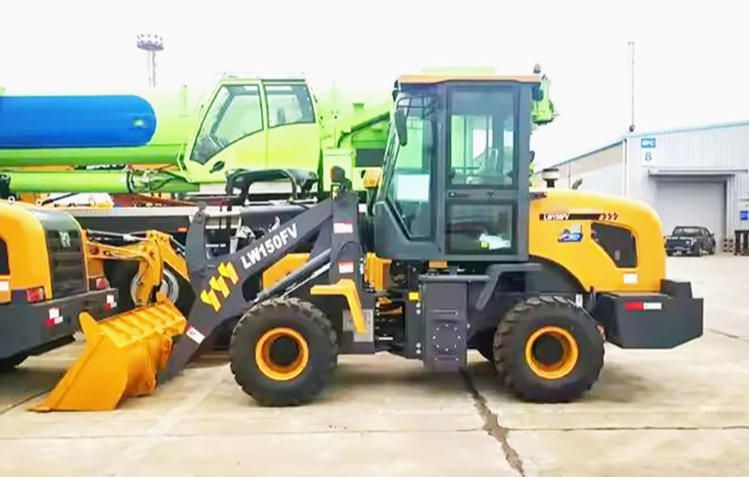

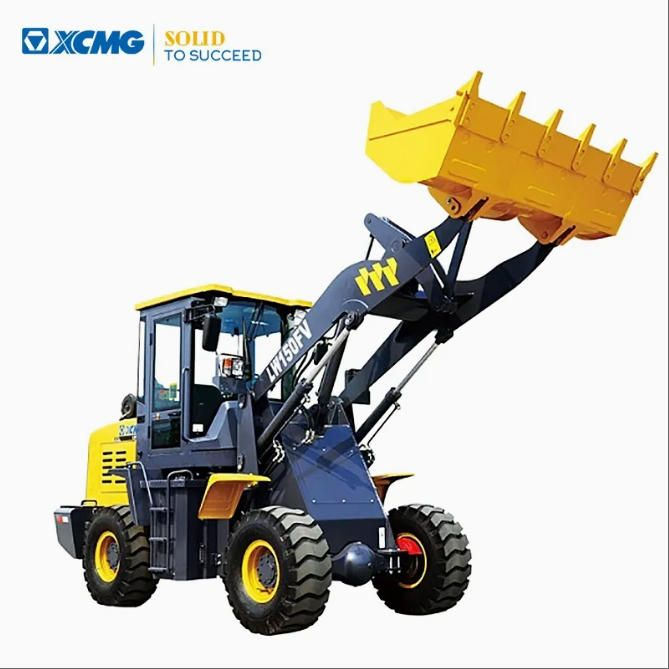

XCMG 1.5ton hydraulic small mini articulated wheel loader LW150FV for sale


1. LW150FV is equipped with an electronically controlled high-pressure common-rail national three engine, high-quality split-type double-transformer, four-wheel drive, full hydraulic steering, strong power, high efficiency and higher environmental adaptability .
2. The hydraulic oil replacement cycle is extended to 2000 hours, far exceeding the level of the same industry, greatly reducing the user's use cost.

Performance specialty
1. Adopting long wheelbase (2300mm) design, adapting to various overweight working conditions, leading the industry in stability.
2. The unloading height of more than 3.3 meters can meet the needs of various occasions.
3. The whole oil cylinder and pin are treated by quenching and tempering process, leading in hardness and high reliability.



Product Parameters



Item
Value
Product Name
Wheel loader
Model
LW150FV
Rated Loading Weight
1500 KG
Dimension(Long * Breadth * High)
5890*1877*2835 mm
Machine Weight
4350 kg
Power
50.2KW
Bucket capacity
1. 0m³
Dump clearance at maximum lift
3000 mm
Reach at maximum lift
1100~1190 mm
Wheel base
2960 mm
Tread
1550 mm
Max.breakout force
170 KN
Max.horse power
95 KN
Min. turning radius over tyres
5165 mm
Articulation angle
35°
Gradeability
25°
Tyre size
23.5-25 PR
