Summary

Weight: 1100Kg

Dimension(L*W*H): 2100×860×2070mm

Power(W): 6.6kW

Model Number: XMR110

Brand Name: XCMG

Place of Origin: Xuzhou, Jiangsu, China

Grade Ability: -

Travel Speed: 0-8km/h

Static Linear Pressure: -

Type: Road Roller

Certification: -

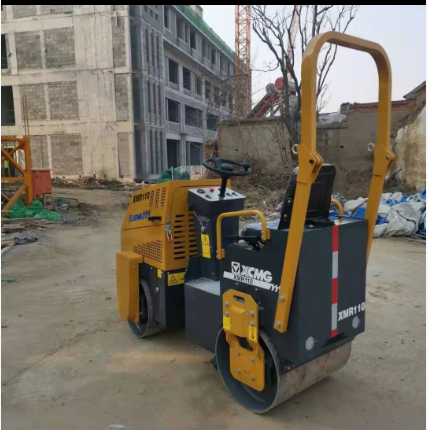

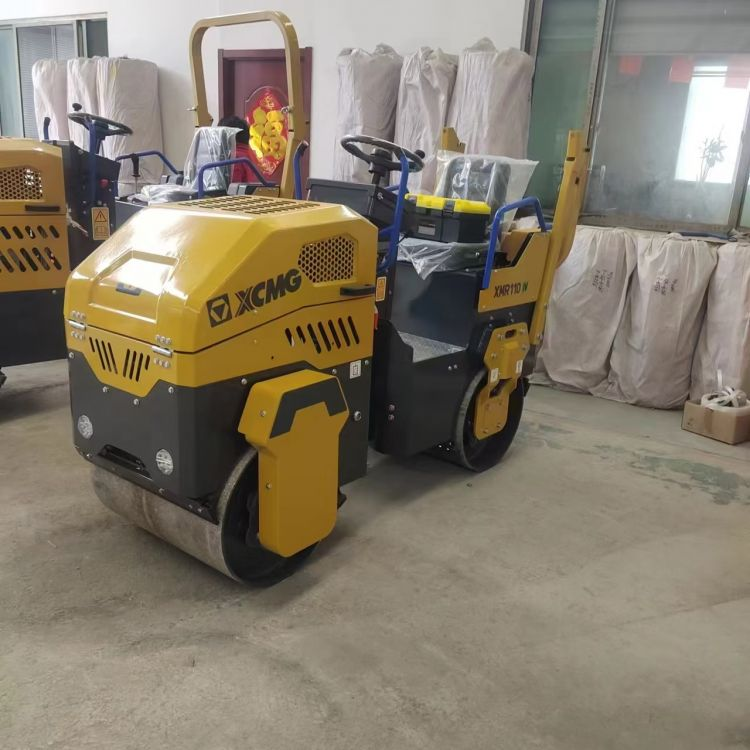

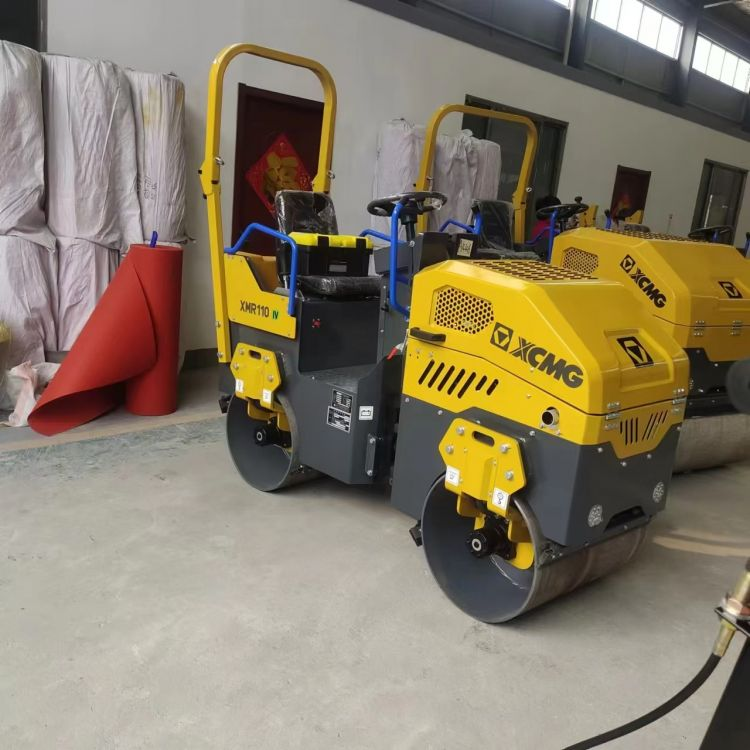

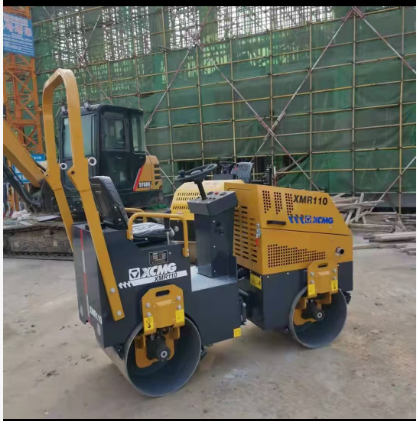

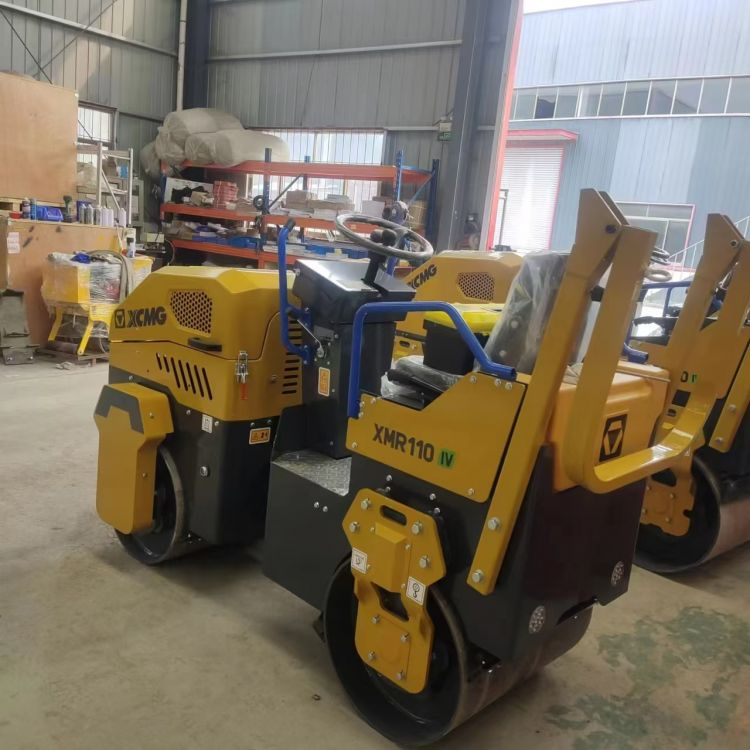

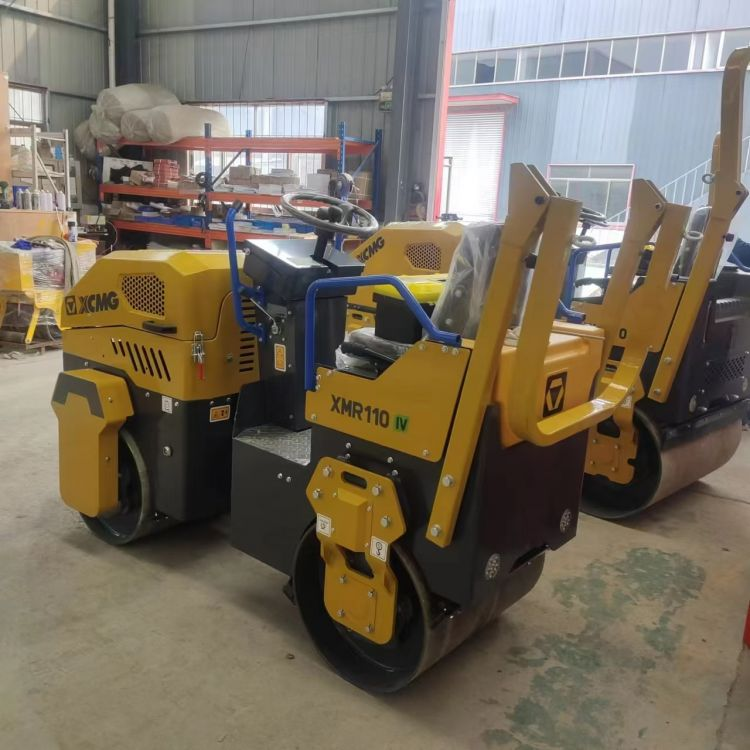

XCMG Official Road Equipment Double Drum Vibratory Roller XMR110 on Sale

XMR110 vibratory rollers are a double-drum vibrato-ry rollers specially designed for narrow and small sites. Their characteristics include: articulated structure, small amplitude and ultra-high frequency vibration, and large exciting force. The two-wheel hydraulic driving system can realize the driv-ing speed of 0-8km/h. Electromagnetic clutch is used in the vibration system of XMR110 to control the start and stop of vibration.

Item	XMR110
Type	walk behind
Operating weight	1100Kg
Axle load, front	/
Axle load, rear	/
Static linear load	/
Rated Power	6.6Kw/3600Rpm
Speed range	0-8km/h
Vibration frequency	70Hz
Vibration amplitude	0.5mm
Centrifugal force	30kN
Working width	700mm
Max. gradeability	30%
Track radius, out	/
Overall dimensions	2100×860×2070mm
