XCMG Official 2023 Year Good Quality Wheel Loader XC948 in Stock for Hot Sale
$66000.00
1 / Unit (Min. Order)
Payment
Shipping
Support Sea freight · Land freight · Air freight
XCMG E-commerce Inc.
Follow
XCMG was founded in 1943. XCMG products include: excavators, loaders, cranes including earth-moving machinery, road machinery, concrete machinery, mining machinery and other 12 construction machinery.
Recommendation
Summary
Rated Load: 4 ton
Dimension(Long* Breadth * High): 7050*2482*3025mm
Type: Wheel Loader
Place of Origin: Xuzhou, China
Model Number: XC948
Brand Name: XCMG
Certification: CE, ISO

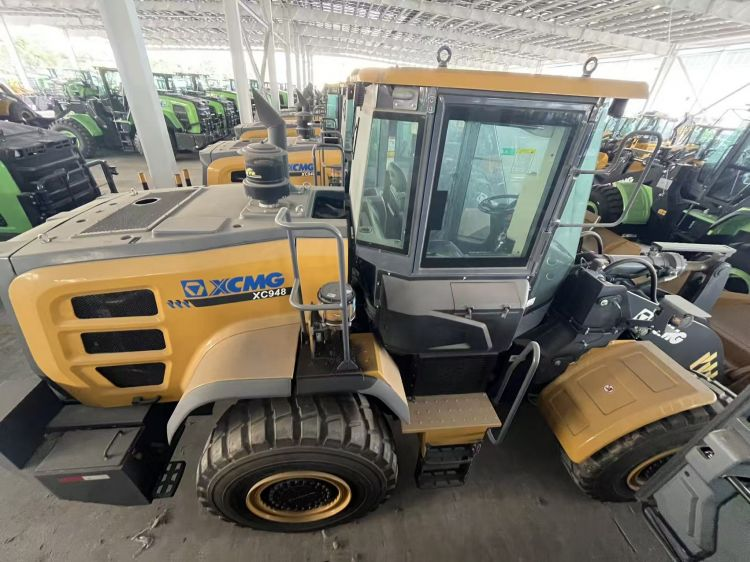

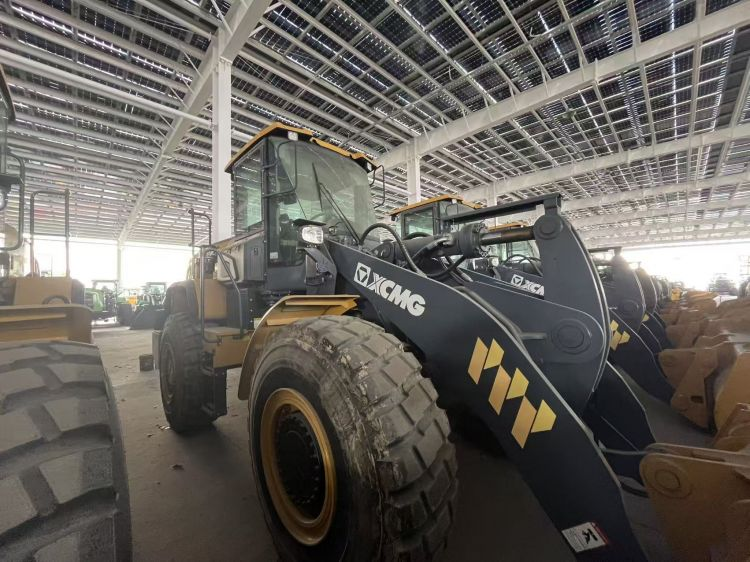

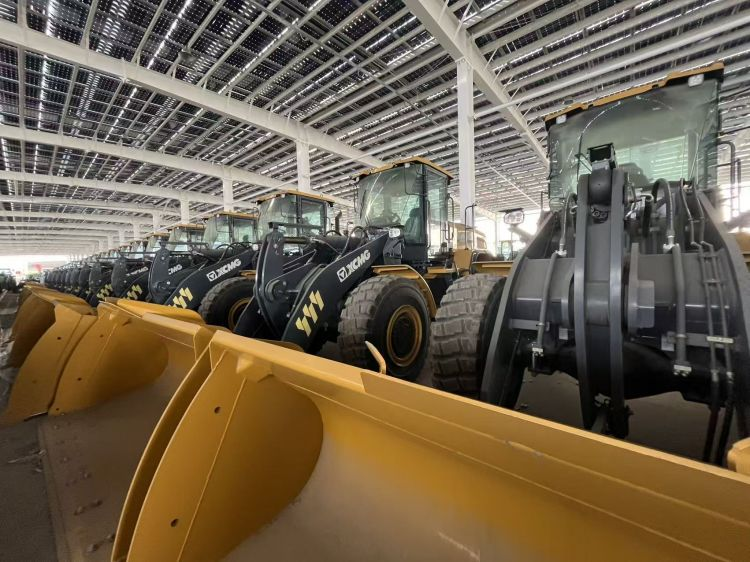

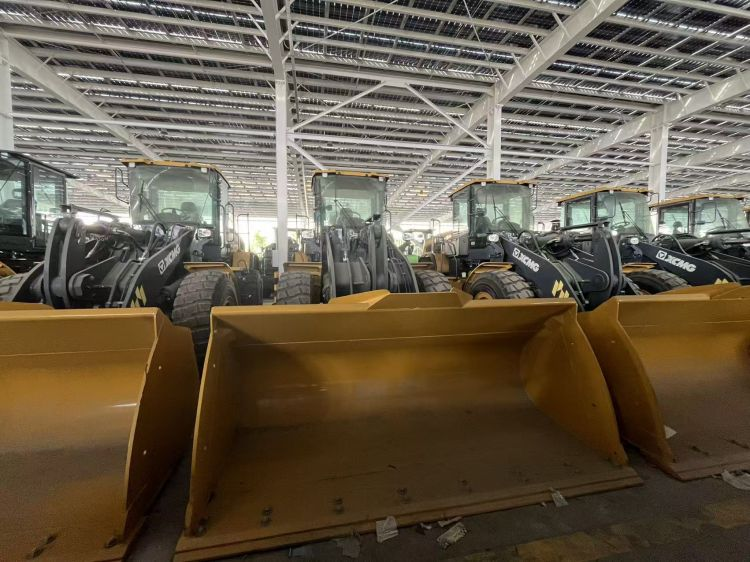

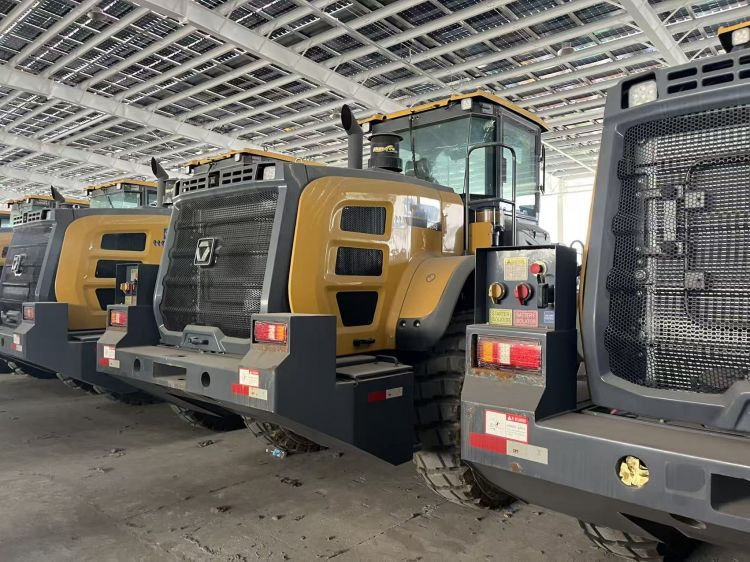

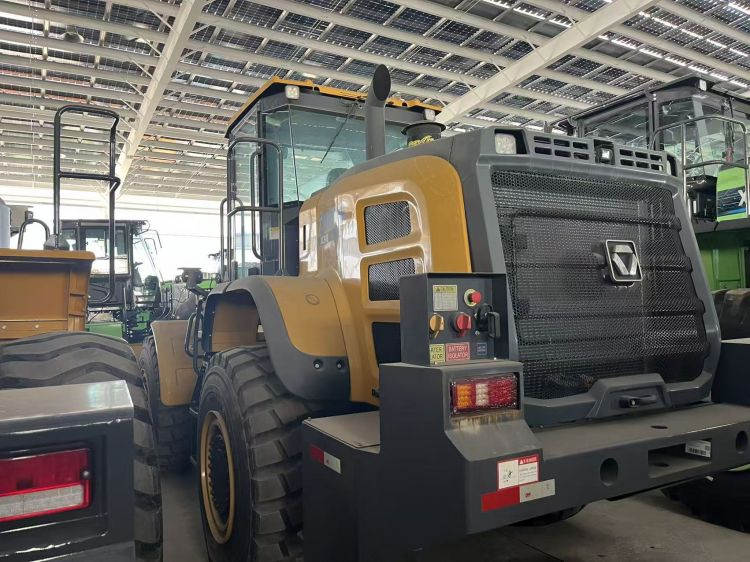

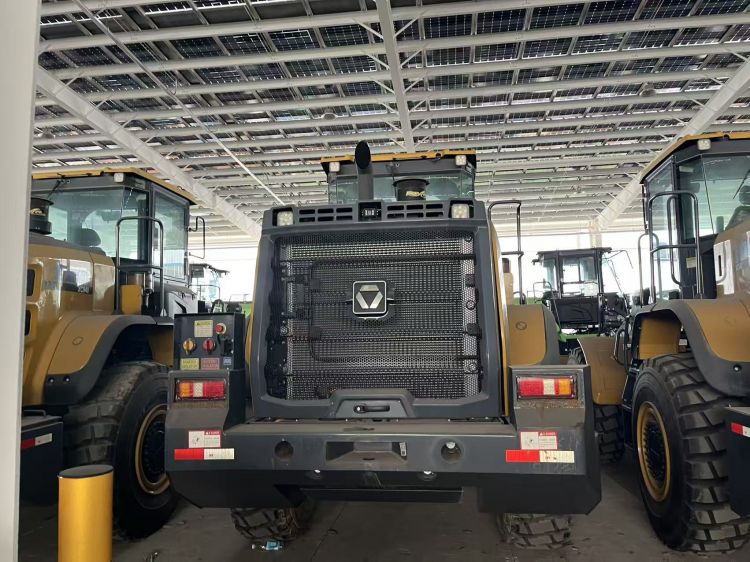

XCMG Official 2023 Year Good Quality Wheel Loader XC948 in Stock for Hot Sale



XC948 is an innovative wheel loader developed and designed based on extensive market and technical research.  It features not only high performance and streamlined appearance, but also greatly-improved reliability, safety, comfort and maintainability compared with the previous generation products.



XC948 is a platform-based wheel loader suitable for all kinds of operating conditions, and can be optionally configured with reversing camera, fork and 2.4m3 blade bucket.



Planetary power-shift transmission connected with a large-capacity torque converter, designed with multiple gears (2 forward and 1 reverse) to meet the speed requirements under different operating conditions;  reinforced drive axle specially designed for construction machinery to ensure stable quality, reliable performance and easy maintenance.



Integrated with sophisticated and reliable single-pump shunt and load-sensing full hydraulic steering technology, improving the lifting capacity by increasing the pressure of the operating system up to 20.5MPa, and reducing the total cycle time through the design of high pressure and small displacement.  Integrated distribution valve with manually-operated actuator, improving the system efficiency, and reducing energy and fuel consumption.



Parameter name
XC948
Operating weight (Kg)
15300
Maximum dumping height (mm)
3320 (standard boom)3600 (Long Boom)
Dumping reach (mm)
1200 (standard boom)1300 (Long Boom)
Maximum breakout force (kN)
≥179
Total cycle time (s)
11.8
Rated power/rated speed (kW/rpm)
175/2200
Overall dimensions of machine (mm)
8635*3072*3548
Forward speed (km/h)
F1:0-8;F2:0-15; F3:0-24; F4:0-38
Reversing speed (km/h)
R1:0-8;R2:0-15; R3:0-24; R4:0-38
Wheelbase (mm)
3400
Fuel tank (L)
230
Rated bucket capacity (m³)
3.5
Rated loading capacity (t)
6
