Summary

Weight: 4000 kg

Dimension(L*W*H): 2910X1515X2720mm

Power(W): 36.8 KW

Model Number: XD140VT

Brand Name: XCMG

Place of Origin: Xuzhou, Jiangsu, China

Grade Ability: -

Travel Speed: 0~12km/H

Static Linear Pressure: -

Type: Road Roller

Certification: -

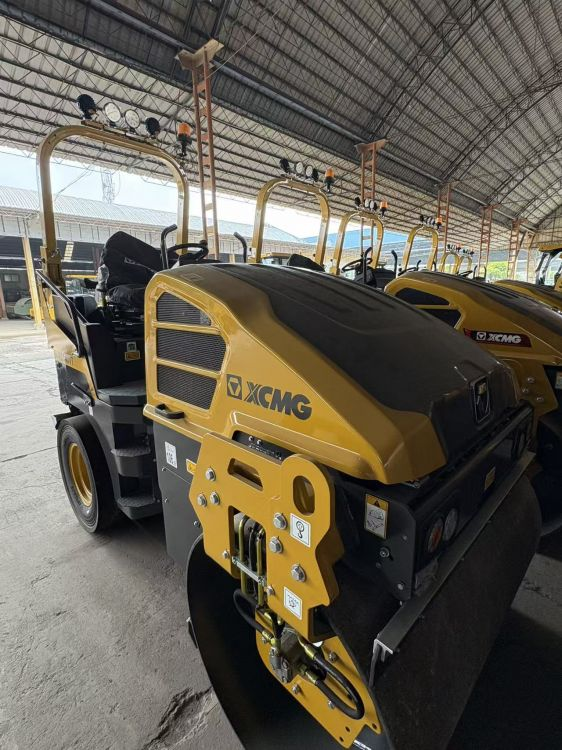

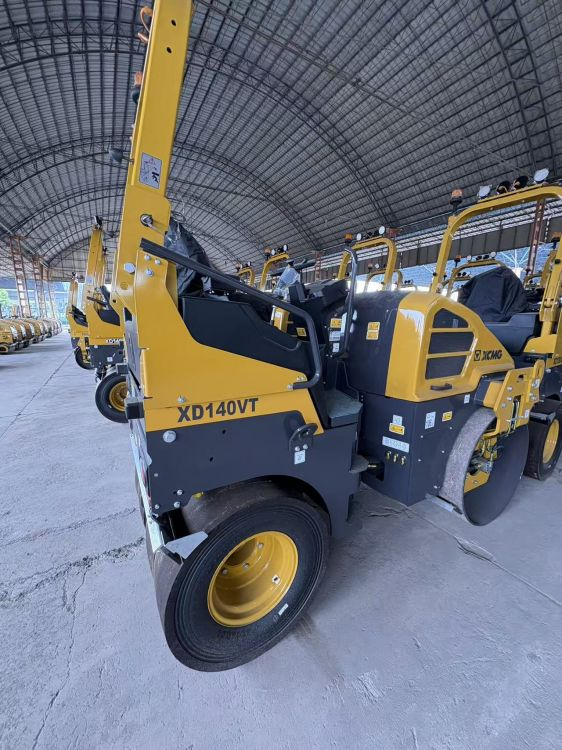

XCMG Official High Quality Light Compacting Equipment XD140VT Road Roller with Double Drum

XD140VT is suitable for compaction of soil and as- phalt pavement in narrow areas such as sidewalks, parking lots and residential roads,it can also be used for compacting thin stable soil layering,which is an ideal compaction equipment for asphalt sur- face laminating in municipal maintenance and high-speed pipe maintenance.

60Hz high frequency vibration,920mm large diameter roller,effectively improve the quality of compaction. Large-capacity water tank,interval controlled sprinkling for prolonged operation. Drum and articulated frame are maintenance-free during the whole life cycle. Sliding operation mechanism for more convenient edge compaction.

Content	Unit	XD140VT
Operating weight	kg	4000
Maximum operating weight	kg	4300
Front axle weight	kg	2100
Rear axle weight	kg	1900
Static linear load	N/cm	152
Operating speed	km/h	0-12
Gradeability	%	30
Minimum turning radius(outer)	mm	4100
Minimum ground clearance	mm	350
Wheel base	mm	1980
Steering angle		±32
Oscillation angle	○	±8
Vibration frequency	Hz	53/60
Nominal amplitude	mm	0.5
Excitation force	kN	42/53
Drum diameter	mm	920
Drum width	mm	1380
Model	-	V28-009
Emission		China IV
Rated power	KW	36.8
Rated speed	r/min	2400
Fuel tank	L	55
Water tank	L	235+45
