XCMG Factory Road Compactor Machine 4 Ton Mini Road Roller Double Drum XD140 Price
$30000.00-$35000.00
1 / Unit (Min. Order)
Payment
Shipping
Support Sea freight · Land freight · Air freight
XCMG E-commerce Inc.
Follow
XCMG was founded in 1943. XCMG products include: excavators, loaders, cranes including earth-moving machinery, road machinery, concrete machinery, mining machinery and other 12 construction machinery.
Recommendation
Summary
Weight: 4300 kg
Dimension(L*W*H): 2910*1510*1980mm
Power(W): 33.6 KW
Model Number: XD140
Brand Name: XCMG
Place of Origin: Xuzhou, Jiangsu, China
Grade Ability: -
Travel Speed: 0~12km/H
Static Linear Pressure: -
Type: Road Roller
Certification: -

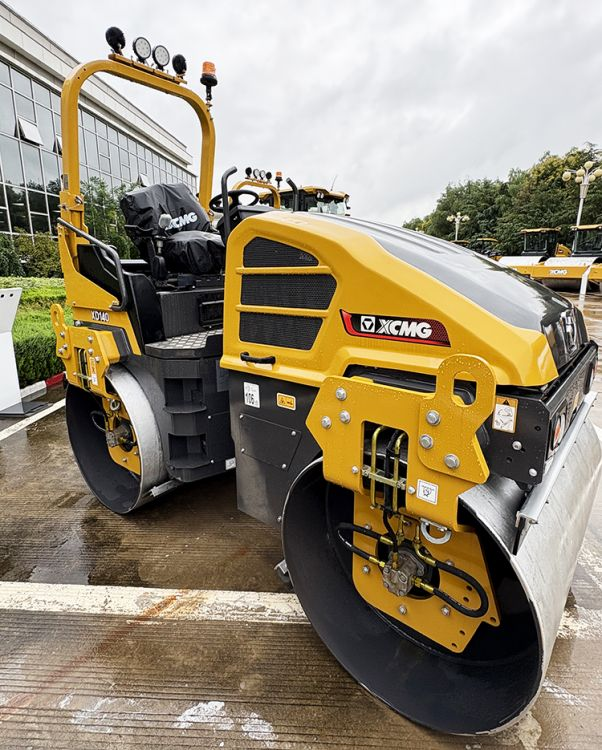

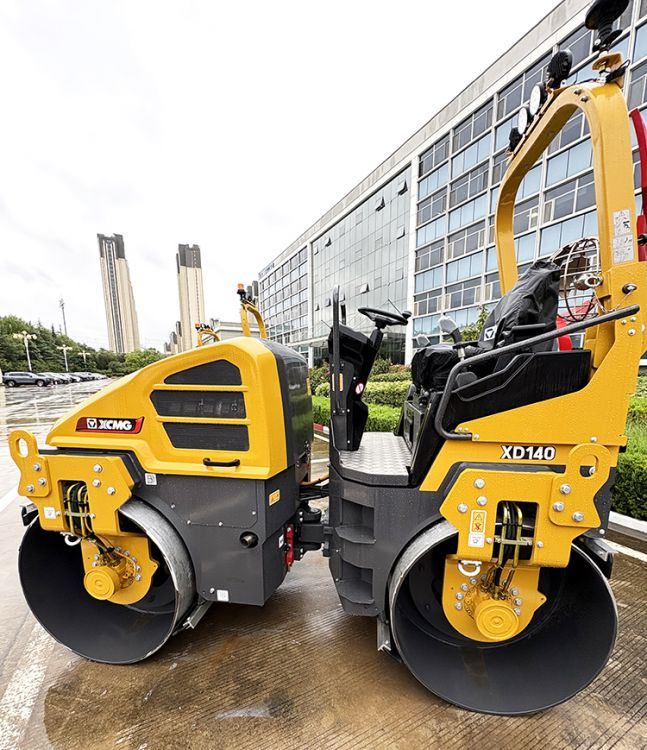

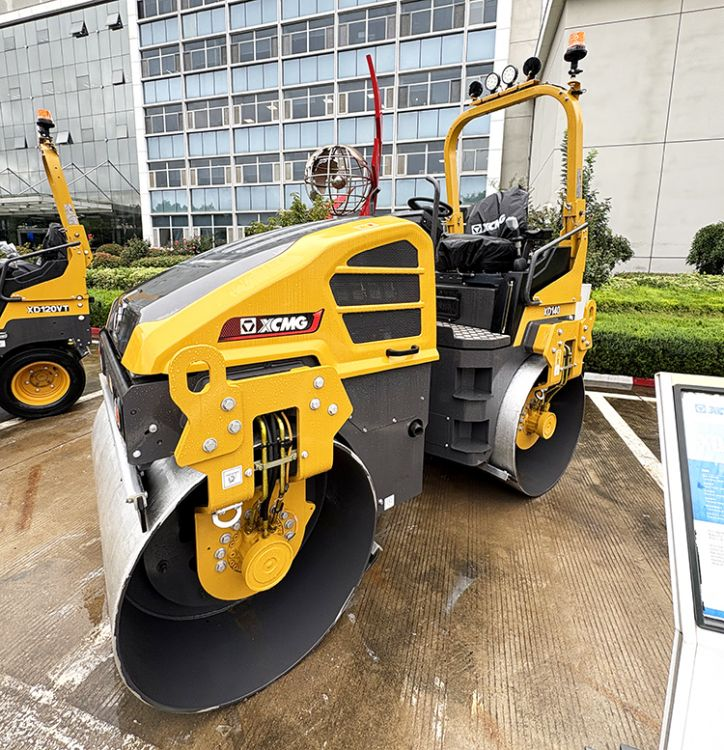

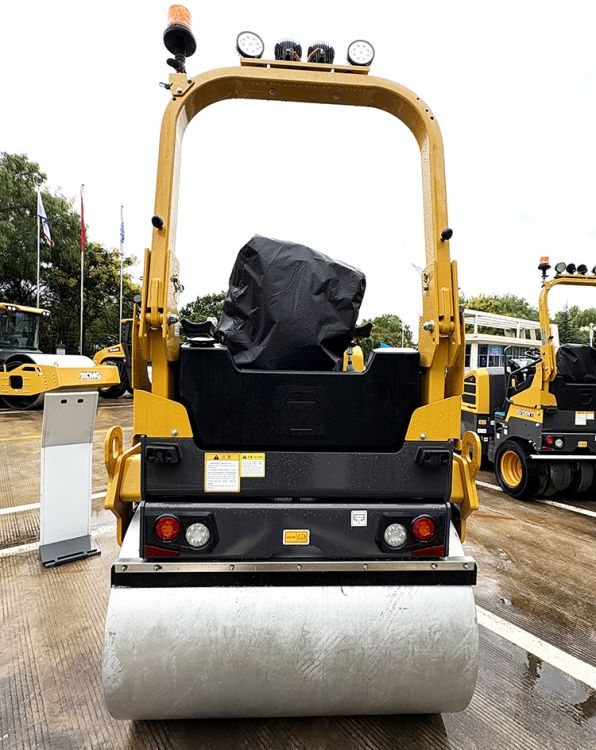

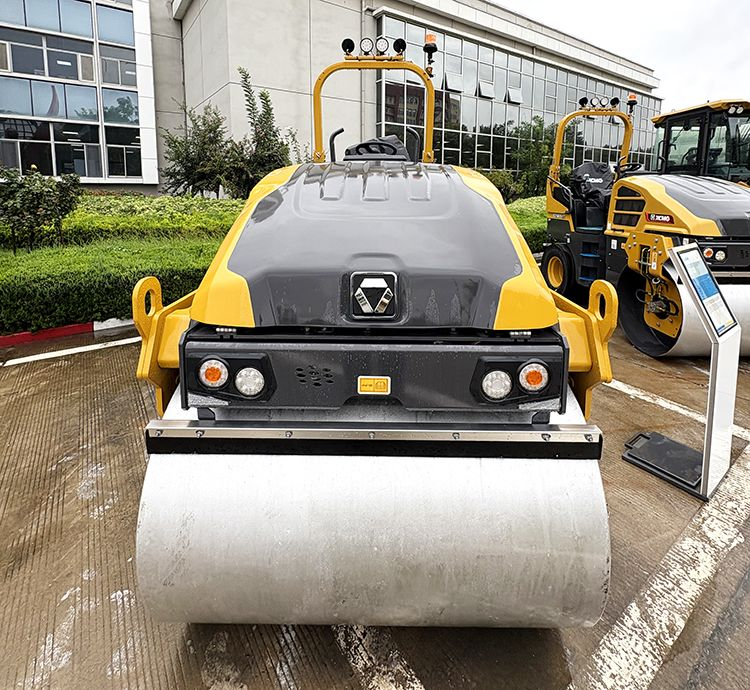

XCMG Factory Road Compactor Machine 4 Ton Mini Road Roller Double Drum XD140 Price



XD140 dual drive dual vibration vibratory road roller features small amplitude, high frequency vibration, big exciting force as well as independent vibration of front and rear drum. It is mainly applicable to compaction work on asphalt top layer of newly built pavement and thinner stable soil pavement, and road maintenance work. With compact structure, high flexibility, small blind area, high operating comfort, it is an ideal compaction equipment for municipal maintenance and highway custody.



Its unique XCMG series 5 industrial design combines aesthetics and practice. Bilateral access, bright color paint, ergonomics design principle. Spacious operating platform provides enough space for operator's movement, operator's seat has three level shock absorption. Foldable CE ROPS provides safety protection under emergency. Driving safety and reliability is guaranteed by three means of braking: neutral brake, secondary brake and parking brake.



Item
Unit
XD140
Operating weight
kg
4300
Front axle weight
kg
2100
Rear axle weight
kg
2200
Static linear load
N/cm
152/160
Operating speed
km/h
0-12
Gradeability
%
30
Minimum turning radius
mm
2700/4100
Minimum ground clearance
mm
350
Wheelbase
mm
1950
Steering angle
°
±8
Oscillation angle
°
±32
Vibration frequency
Hz
53/60
Nominal amplitude
mm
0.5
Drum diameter
mm
920
Drum width
mm
1380
Model

KUBOTA V2403
Rated power
KW
33.6
Rated speed
r/min
2400
