Summary

Weight: 2650 kg

Dimension(L*W*H): 2610*1286*2795mm

Power(W): 15 KW

Model Number: XD120VT

Brand Name: XCMG

Place of Origin: Xuzhou, Jiangsu, China

Grade Ability: -

Travel Speed: 0-10km/H

Static Linear Pressure: -

Type: Road Roller

Certification: -

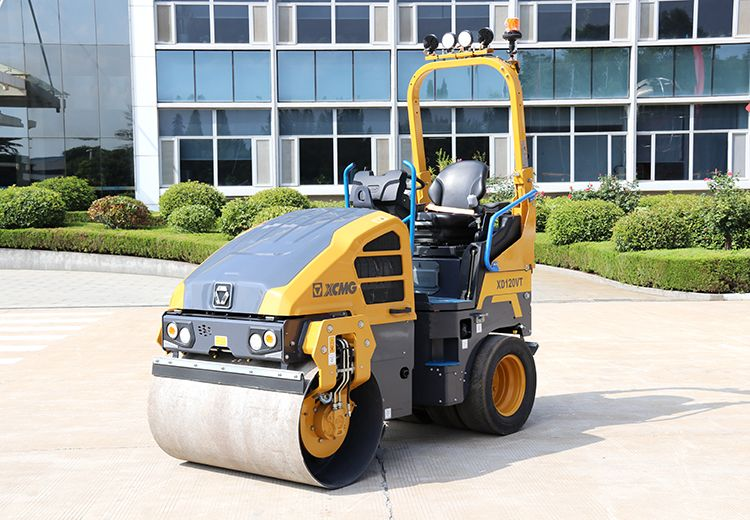

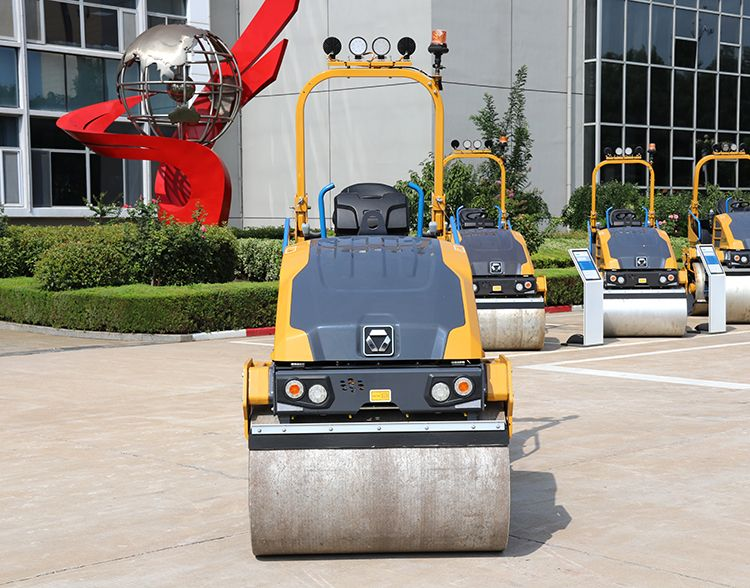

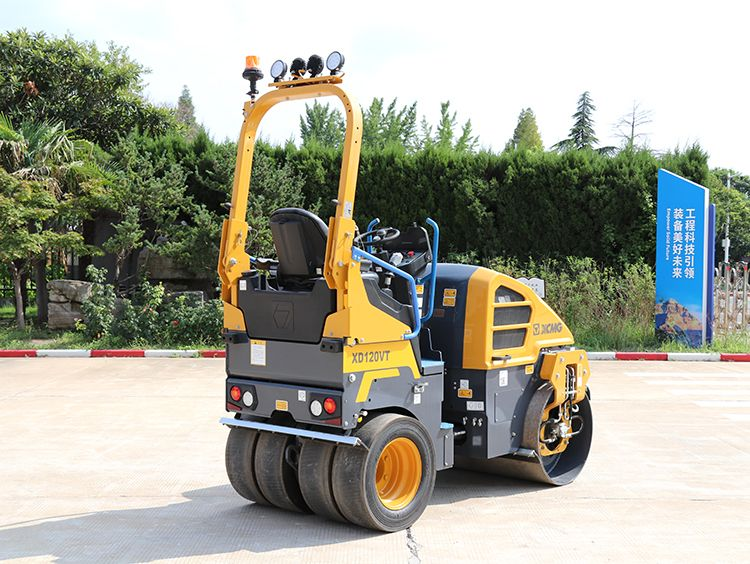

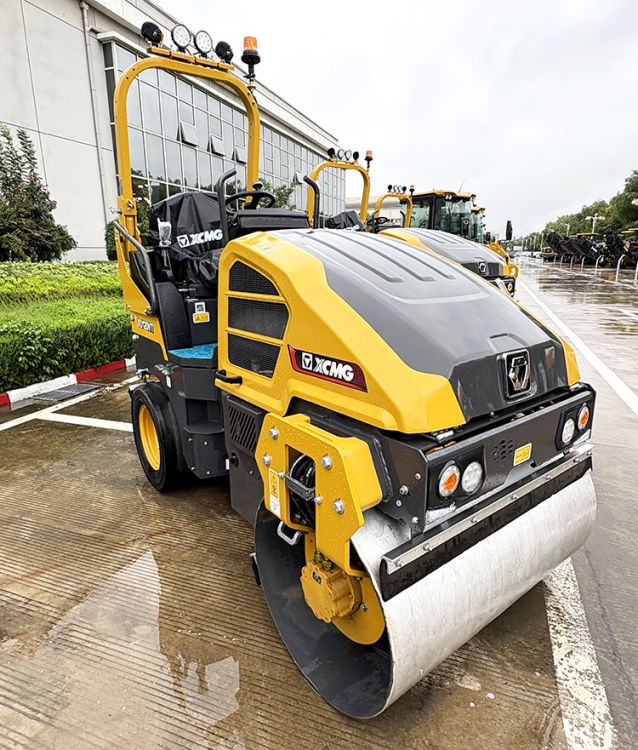

XCMG Official New Road Roller Machine 2 Ton Double Drum Roller XD120VT Hot Sale

XD120VT combination roller is characterized by combination of front drum and rear static tire, can implement both vibration compaction and surface kneading.

It is an efficient and high-quality compaction machine for compaction operations in limited areas and infrastructure reconstruction and expansion projects.

It is mainly applicable to compaction work on asphalt top layer of newly built pavement and thinner stable soil pavement, and road maintenance work.

With compact structure, high flexibility, small blind area, high operating comfort, it is an ideal compaction equipment for municipal maintenance and highway custody.

Description	XD120VT (standard)
Operating weight	2650kg/58421b
Front axle weight	1350kg/ 29761b
Rear axle weight	1300kg/2866lb
Static linear load	110Ncm
Working speed	0-10kmh/0- 6mikeh
Theoretical gradeability	30%
Minimum turning radius(intern/extern)	25003700mm/98/146in
Min. ground clearance	275mm/ 11in
Wheel base	1773mm/70in
Oscillation angle	±8
Braking distance(smooth cement pavement)	<3.4m/<134in
Vibration frequency	63/67Hz
Nominal amplitude	0.5mm /0.02in
Exciting force (High/low frequency)	36V41kN / 8.119.2kip
Drum diameter	720mm / 28in
Drum width	1200mm/47in
Charge pressure of drive system	2.5MPa/25bar
Relief pressure of drive system	38MPa/380ba1
Relief pressure of vibration system	20MPa/200bar
Relief pressure of steering system	16MPa/160bar
Rated power	25KW / 34HP
Rated speed	2400rimin
