XCMG was founded in 1943. XCMG products include: excavators, loaders, cranes including earth-moving machinery, road machinery, concrete machinery, mining machinery and other 12 construction machinery.
Summary
Weight:
263(579)Kg(Lbs)
Dimension(L*W*H):
1040*910*1190mm
Power(W):
4.0(5.5)kW(hp)
Model Number:
XGYL641-1
Place of Origin:
Xuzhou, Jiangsu, China
Travel Speed:
0-3000m/hr
Type:
Static Hydraulic Drive
Certification:
EPA, CS, CE, RoHS, ISO 9001:2008
![]()

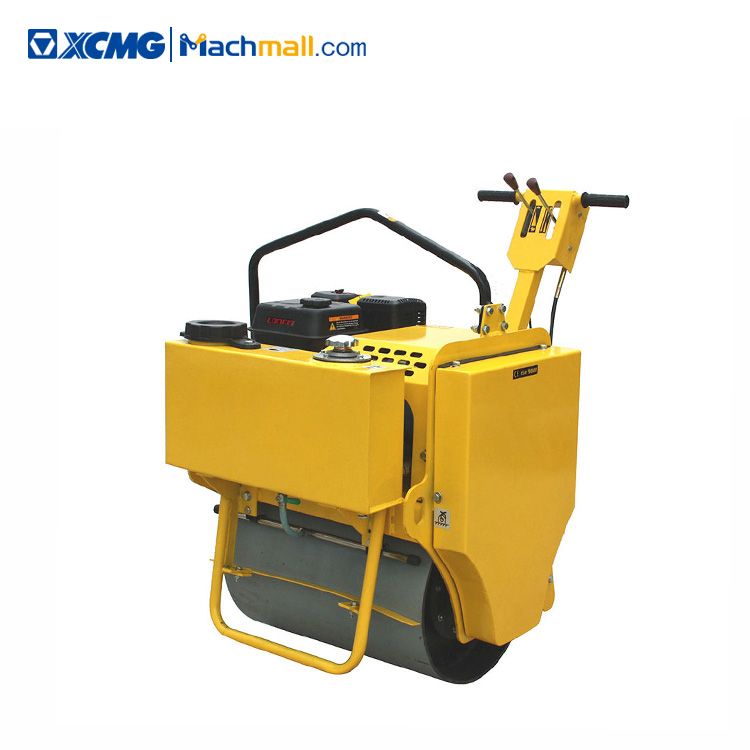

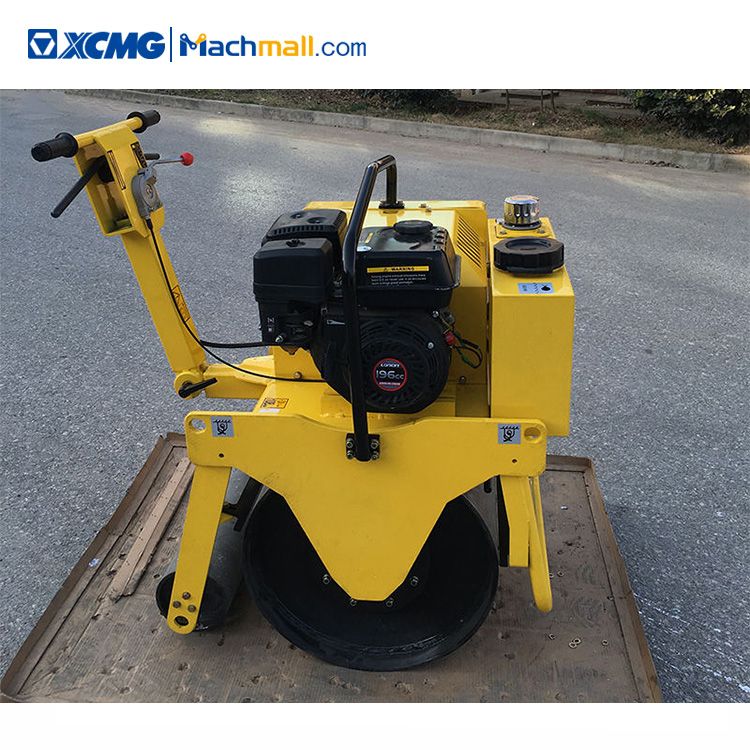

XCMG Official Mini Road Roller Xgyl641-1 Hand Manual Roller price
XCMG Walk-behind vibratory roller, single and double drums, are idealfor asphalt patching or compaction of granular soils. Vibratory Roller have strong and robust design, yet compact insize combined with utmost reliability for the most difficult siteconditions. With features like easy access to all hydraulic components,'dead man' safety controls, convenient tie downsand lifting eye, and a handle that folds 90 degrees for simplestorage and transport.
* Brake system uses the neutral position braking, emergency braking and parking brake, short braking distance and high braking torque, ensuring the safety of the product.
* The vibration system can realize the simultaneous vibration and independent vibration of the rear and front drum, and meets the different working conditions.
* High frequency vibration and excitation force design, high working efficiency, good compaction effect.
* Vibration drum width is larger than frame width, convenient to observe compac-tion condition of drum edge in the construction.
| Parameter | Unit | XGYL641-1 |
| Engine Type | | Honda GX160 | Chinese Petrol Engine |
| Power | kW(hp) | 4.0(5.5) | 4.8(6.5) |
| Weight | kg(lbs) | 263(579) |
| Starting Mode | | Manual |
| Travel Speed | m/hr | 0-3000 |
| Drive Type | | Static Hydraulic Drive |
| Vibration Type | | Mechanical |
| Static Load | N/cm | 40 |
| Nominal Amplitude | mm | 0.6 |
| Vibration Frequency | Hz | 70 |
| Centrifugal Force | kN | 15 |
| Water Tank Capacity | L | 24 |
| Drum Size | mm | φ425*600 |
| Gradebility | | 30° |
| Package Size | cm(in) | 104*91*119(41*35.8*46.9) |
![]()
![]()
![]()
