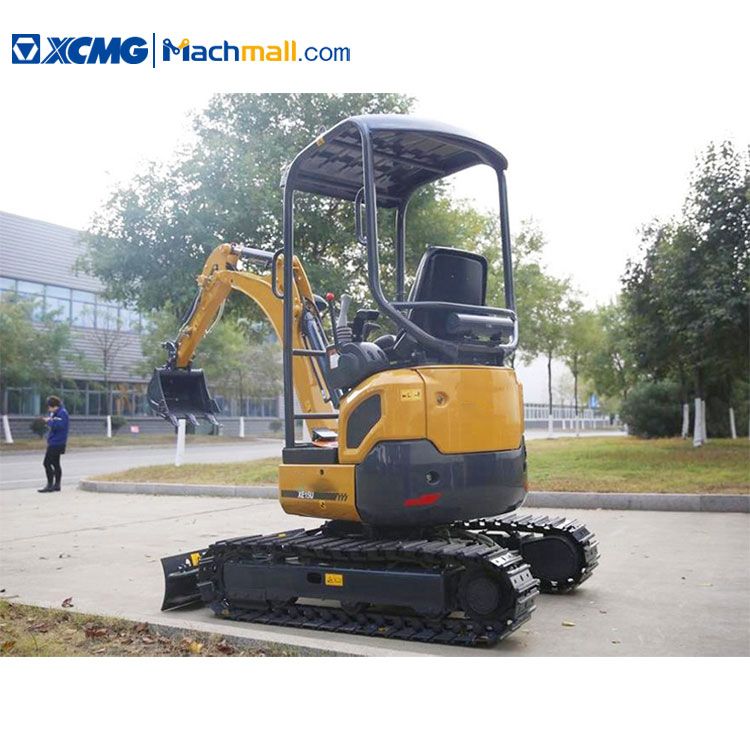

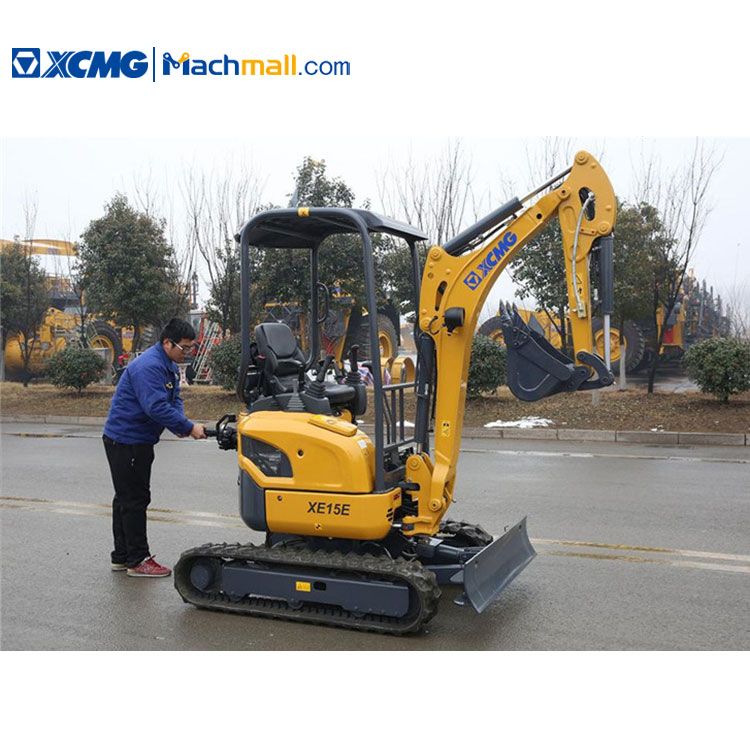

XCMG official XE15E engine mini excavator 1ton for sale
Chat Now
1 / Unit
(Min. Order)
Shipping
Support Sea freight · Land freight · Air freight
XCMG was founded in 1943. XCMG products include: excavators, loaders, cranes including earth-moving machinery, road machinery, concrete machinery, mining machinery and other 12 construction machinery.
Summary
Rated Speed:
2300rpm
Max Digging Radius:
3900mm
Machine Weight:
1795KG
Maximum Digging Depth:
2290mm
Maximum Digging Height:
3475mm
Bucket capacity:
0.04m3
Operating Weight:
1T
Model Number:
XE15E
Brand Name:
XCMG
Place of Origin:
China
![]()
XCMG official XE15E engine mini excavator 1ton for sale
1. Engine that meets Euro V emission standards is highly reliable, environmentally friendly, and have lower fuel consumption. 2. Compact and Tailless design cooperates with boom swing function, which can adapt to the narrow space operation flexibly. 3. When the travel system retracts, the length between two crawlers is only 990mm, which has better trafficability. 4. Key electrical elements are arranged in new type electrical box, which makes daily maintenance more convenient.
Item | Unit | Parameters |
| Weight | Kg | 1795 |
Model | Operating weight | Kg | 1795 |
| Bucket capacity | m³ | 0.04 |
| Moving Type | | crawler |
| Product Name | | XE15E |
| Display online time | | 2019-03-30 |
Main performance | Product Name | | XE15E |
| Swing speed | r/min | 8.7 |
| Ground pressure | kPa | 28.5 |
| Bucket digging force | kN | 16 |
Working range | A Maximum digging height | mm | 3475 |
| B Maximum dumping height | mm | 2415 |
| C Maximum digging depth | mm | 2290 |
| H Max Digging Radius | mm | 3900 |
| I Min. swing radius | mm | 1550 |
![]()
![]()
![]()
