XCMG was founded in 1943. XCMG products include: excavators, loaders, cranes including earth-moving machinery, road machinery, concrete machinery, mining machinery and other 12 construction machinery.
Summary
Machine Weight:
5700 kg
Bucket capacity:
0.16m3
Operating Weight:
5Ton
Model Number:
XE55U
Brand Name:
XCMG
Place of Origin:
China
![]()

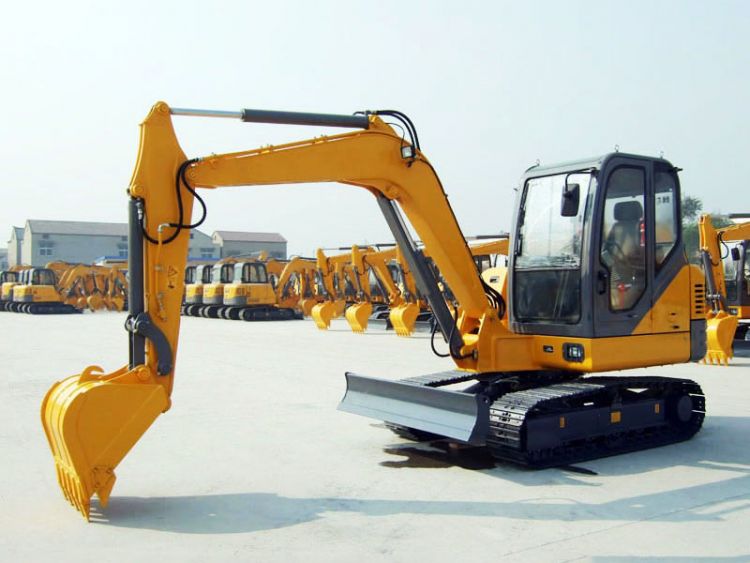

XCMG China Mini 5 Ton Crawler Excavator XE55U with Tools for Sale
The new-generation “U-series” small-sized short-tailexcavatorsare flexible, efficient, reliable and durable. The engine emission meets the European V Standard and is energy-saving and environment-protective.
The new-generation hydraulic components are more efficient and more reliable, and have high control precision, strong digging force, and excellent operational efficiency. It's exclusive load self-adaptive control technology ensures that the engine makes full use of every drop of fuel. More tools are provided to meet requirements of more complex working conditions and achieve the purpose of multiple functions in one machine.
Sales model | XE55U |
Operating weight | 5700 |
Bucket capacity | 0.16 |
Engine | Model | V2403-CR-E5B |
| Direct injection | √ |
| Four strokes | √ |
| Water cooling | √ |
| Turbo-charging | / |
| No. of cylinders | 4 |
| Rated power | 31.2/2200 |
| Maximum torque/speed | 159.8 / 1500 |
| Displacement | 2.434 |
Main performance
| Travel speed | 4.6/2.8 |
| Swing speed | 9.5 |
| Gradeability | ≤35 |
| Ground pressure | 32 |
| Bucket digging force | 44.5 |
| Arm digging force | 24.3 |
| Maximum tractive force | 52.8 |
Hydraulic
system | Rated flow of main pump | 158.4 |
| Main safety valve pressure | 30 |
| Travel system pressure | 30 |
| Swing system pressure | 24 |
| Pilot system pressure | 3.5 |
Oil Capacity
| Fuel tank capacity | 68 |
| Hydraulic tank capacity | 46 |
| Engine oil capacity | 9.5 |
Appearance
size
| Overall length | 5340 |
| Overall width | 1960 |
| Overall height | 2555 |
| Width of platform | 1830 |
| Track length | 2490 |
| Overall width of chassis | 1960 |
| Track width | 400 |
| Wheel base of crawler | 1990 |
| Track gauge | 1560 |
| Counterweight clearance | 637 |
| Min. ground clearance | 315 |
| Min. tail swing radius | 2430 |
| Track height | 550 |
Working
scope
| Max. digging height | 5650 |
| Max. dumping height | 4010 |
| Max. digging depth | 3640 |
| Maximum depth cut for 2240mm(8 ft) level bottom | 3200 |
| Max. vertical wall digging depth | 2690 |
| Max. digging radius | 6110 |
| Min. swing radius | 1040 |
Standard
| Length of boom | 2850 |
| Length of arm | 1570 |
| Bucket capacity | 0.16 |
Optional
| Length of boom | / |
| Length of arm | / |
| Bucket capacity | / |
![]()
![]()
