Summary

Rated Speed: 5.2km/h

Max Digging Radius: 10660mm

Machine Weight: 31500kg

Maximum Digging Depth: 6735mm

Maximum Digging Height: 10265mm

Bucket capacity: 2.0m³

Operating Weight: 32.5T

Model Number: XE335DK

Brand Name: XCMG

Place of Origin: Jiangsu, China

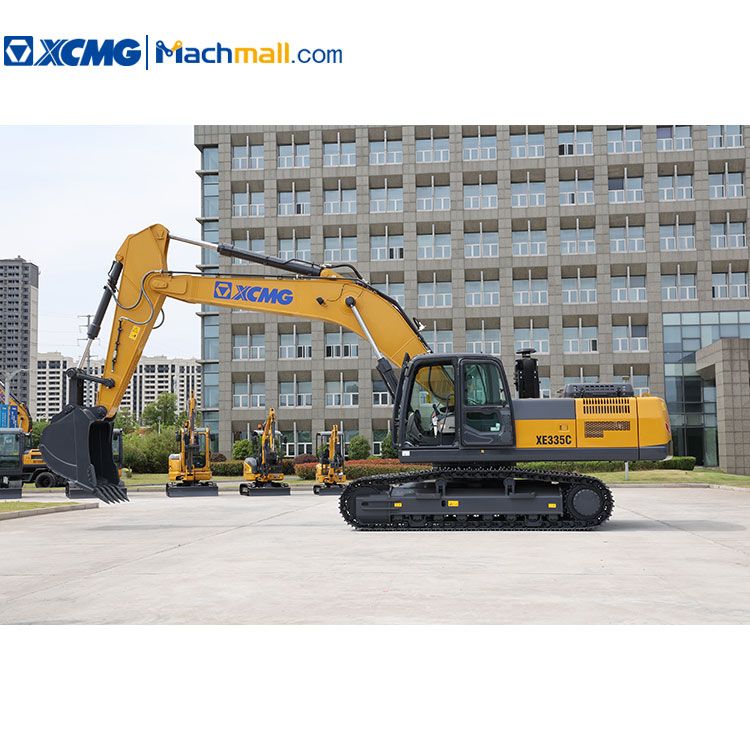

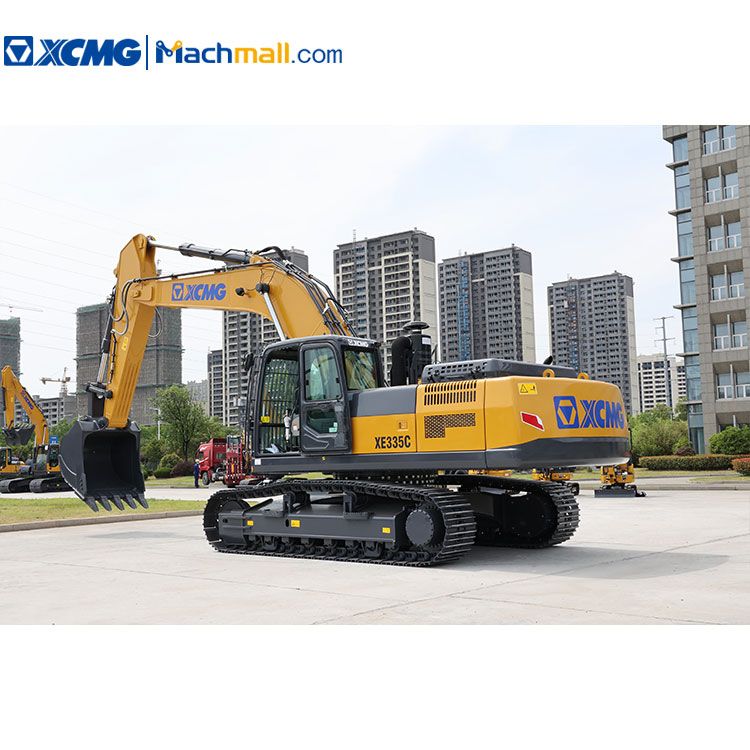

XCMG XE335C hydraulic crawler excavator XE335DK cheap price for sale

1,The overall layout and the axle load distribution are more reasonable to achieve better traveling stability and the maximum traveling speed is up to 40km/h to realize faster site transfer speed.

2,The domestic leading hydraulic system distribution technology features high energy-saving and efficiency.

3,The highest breakout force on the loading end is leading the industry by 15%~20% compared with like models.

4,The advanced structure and hinge points on the digging end and the industry’s largest rotating angle of the bucket ensure strong soil holding capacity.

Description		Unit	Parameter value
Operating weight		Kg	32500
Bucket capacity		m³	1.6
Engine	Model	/	QSL9
	No. of cylinders	/	6
	Output power	kw/rpm	202/2100
	torque/speed	N.m	1230/1500
	Displacement	L	8.9
Hydraulic system	Travel speed(H/L)	km/h	5.3/3.2
	Gradeability	°	35°
	Rated flow of main pump	L/Min	2*272
	Main safety valve pressure	MPa	36
	Travel system pressure	MPa	34.3
	Rotary system pressure	MPa	30
Oil Capacity	Fuel tank capacity	L	520
	Hydraulic tank capacity	L	270
	Engine oil capacity	L	30
Appearance size	Overall length	mm	10790
	Overall width	mm	3150
	Overall height	mm	3640
	Width of platform	mm	3050
	Overall width of chassis	mm	3190
	Track length	mm	4944
	Track width	mm	600
	Crawler gauge	mm	2590
	Track height	mm	1084
	Min. ground clearance	mm	538
Working scope
	Max. digging height	mm	10265
	Max. dumping height	mm	7110
	Max. digging depth	mm	6735
	Max. vertical wall digging depth	mm	5010
	Max. digging radius	mm	10680
	Min. swing radius	mm	4125
Standard	Length of boom	mm	6150
	Length of arm	mm	2990
	Bucket capacity	m³	1.6
