XCMG was founded in 1943. XCMG products include: excavators, loaders, cranes including earth-moving machinery, road machinery, concrete machinery, mining machinery and other 12 construction machinery.
Summary
Model Number:
XCA40_M
Brand Name:
XCMG
Place of Origin:
Jiangsu, China
Span:
360
Max. Lifting Height:
48m
Max. Lifting Load:
40T
Rated Lifting Moment:
3000kN.M
Rated Loading Capacity:
40T
Application:
Construction works
Certification:
CE ISO9001
![]()

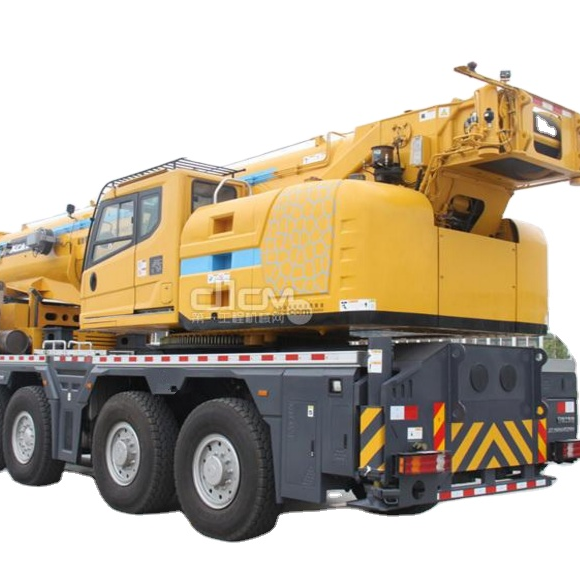

2022 Best price China Brand 40t all terrain crane XCA40_M

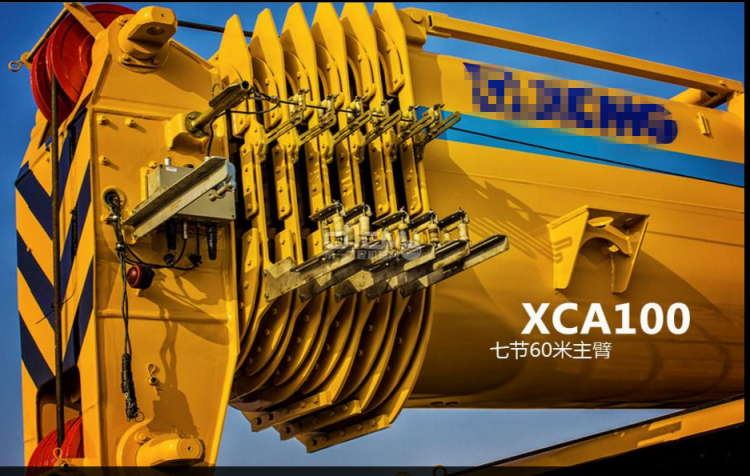

* The innovative jib system adopts embedded block, plug-in boom head and international advanced U section jib, which has excellent lifting performance and safe and reliable lifting work.
* The unique stretch and retract technique avoids the bend of the core pipe and cylinder and the break of the boom caused by misoperation, improving the safety of the operations.
* Eight patent techniques ensure the smooth, high efficiency and energy conservation of the lifting, rotation, and luffing systems.
* Adopt the new hydraulic motor with big torque starting point, making the secondary lifting safer.
* The torque limiter adopts colorful LCD display, realizing the intelligence of the failure diagnosis. The precision is ahead of the industry.
* The humanity design makes the cab and control cab more spacious, and easy to operate.
* Six unique manufacturing technologies ensure the high quality.
Item | Specification | Unit |
Overall Length | 13180 | mm |
Overall Width | 2750 | mm |
Overall Height | 4000 | mm |
Wheel Base | 2340 | mm |
Total vehicle mass in travel configuration | 48000 | kg |
Axle Load | 12000x4 | kg |
Engine Model (superstructure) | ISME42030 | ISM11E4 440 | |
Engine rated power | 306/1900 | 318/1900 | kw/(r/min) |
Engine rated torque | 2010/1200 | 2080/1200 | N.m/(r/min) |
Engine rated torque(chassis) | BF6M1013EC | OM924LA.E3A/1 | |
Engine rated power | 174/2300 | 145/2200 | kw/(r/min) |
Engine rated torque | 854/1400 | 750/1200-1600 | N.m/(r/min) |
Max. travel speed | 80 | km/h |
Min. travel speed | 3 | km/h |
Min. turning diameter | 18 | m |
Max. gradeability | 60 | % |
Min. ground clearance | 280 | mm |
Approach angle | 17 | ° |
Departure angle | 16.5 | ° |
Braking distance (at 30 km/h, full load ) | ≤10 | m |
Oil consumption per 100km | 60 | L |
![]()
![]()
![]()
