XCMG was founded in 1943. XCMG products include: excavators, loaders, cranes including earth-moving machinery, road machinery, concrete machinery, mining machinery and other 12 construction machinery.
Summary
Model Number:
XCT40_U
Brand Name:
XCMG
Place of Origin:
Jiangsu, China
Span:
360
Max. Lifting Height:
65m
Max. Lifting Load:
40TON
Rated Lifting Moment:
1574KN.m
Rated Loading Capacity:
40Ton
Application:
Factory, Workshop
Certification:
CE ISO
![]()

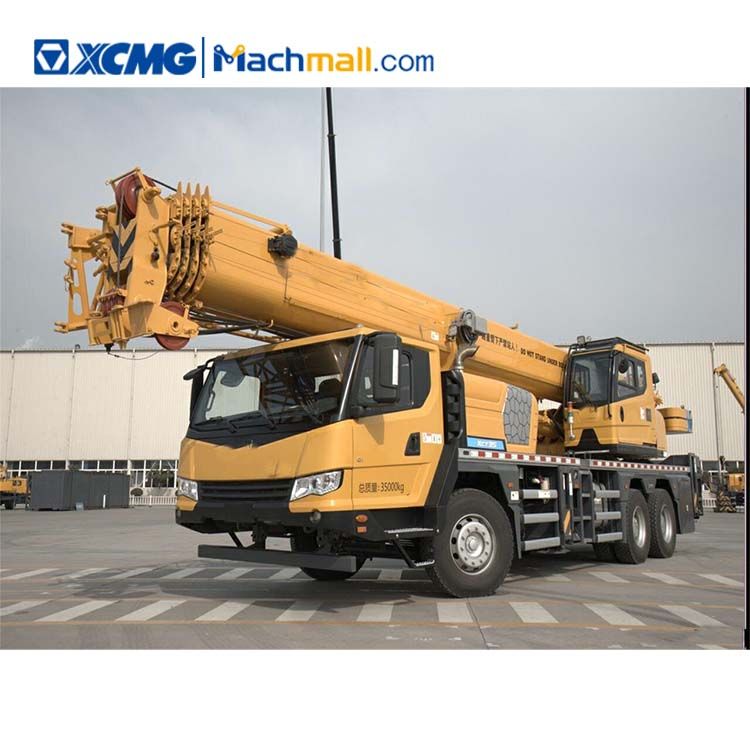

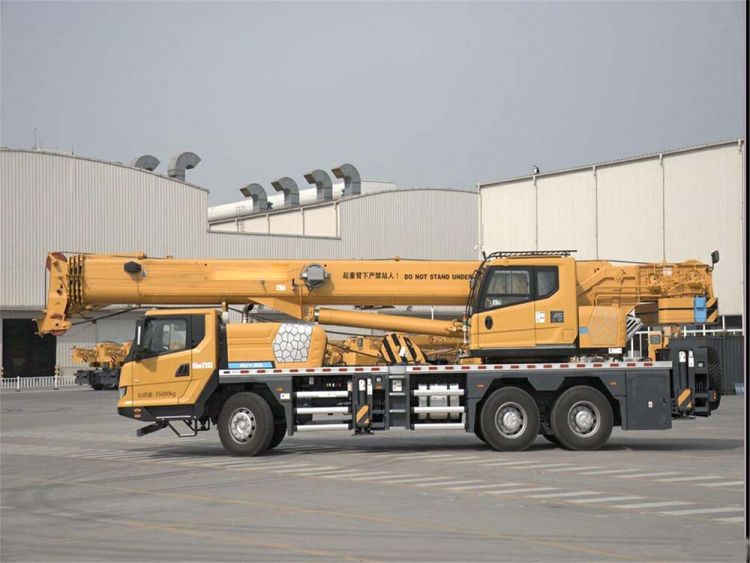

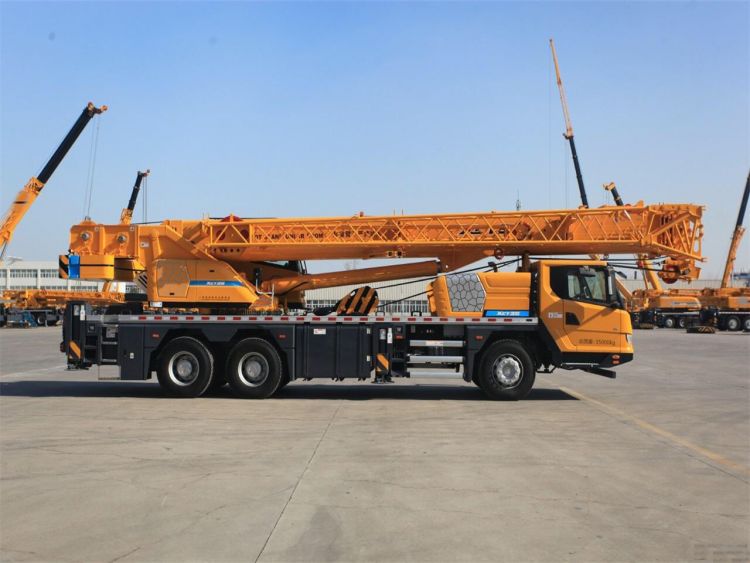

2022 Best price China Brand 40t truck crane XCT40_U
* The innovative jib system adopts embedded block, plug-in boom head and international advanced U section jib, which has excellent lifting performance and safe and reliable lifting work.
* The unique stretch and retract technique avoids the bend of the core pipe and cylinder and the break of the boom caused by misoperation, improving the safety of the operations.
* Eight patent techniques ensure the smooth, high efficiency and energy conservation of the lifting, rotation, and luffing systems.
* Adopt the new hydraulic motor with big torque starting point, making the secondary lifting safer.
* The torque limiter adopts colorful LCD display, realizing the intelligence of the failure diagnosis. The precision is ahead of the industry.
* The humanity design makes the cab and control cab more spacious, and easy to operate.
* Six unique manufacturing technologies ensure the high quality.
Description | Unit | Parameter value |
Overall length | mm | 13745 |
Overall width | mm | 2800 |
Overall Height | mm | 3560 |
Wheel Base | mm | 1470+4050+1350 |
Track | mm | 2322/2059 |
Total vehicle mass in travel configuration | kg | 39400 |
Axle load | 1st axle | kg | 6890 |
2nd axle | 6890 |
3rd axle | 12810 |
4th axle | 12810 |
Engine Model | | SC9DF340Q5 |
Engine rated power | kw/(r/min) | 251/1900 |
Max. output torque | N.m/(r/min) | 1450/1100-1400 |
Max. travel speed | km/h | ≥90 |
Min. turning diameter | m | ≤24 |
Min. ground clearance | mm | 293 |
Max. grade ability | % | ≥45 |
Approach angle | ° | 19 |
Departure angle | ° | 15 |
Braking distance (at 30 km/h, full load ) | m | ≤10 |
![]()
![]()
![]()
