XCMG Cruking 26 ton single drum road roller Full hydraulic Reliable Quality XS265
$50000.00-$100000.00
1 / EA (Min. Order)
Payment
Shipping
Support Sea freight · Land freight · Air freight
XCMG E-commerce Inc.
Follow
XCMG was founded in 1943. XCMG products include: excavators, loaders, cranes including earth-moving machinery, road machinery, concrete machinery, mining machinery and other 12 construction machinery.
Recommendation
Summary
Weight: 26 ton
Dimension(L*W*H): 8015*2380*3050mm
Power(W): 140KW
Model Number: XS265
Brand Name: XCMG
Place of Origin: China
Grade Ability: 35%
Travel Speed: 2.95-9.4km/h
Static Linear Pressure: 582N/cm
Type: Vibratory Roller

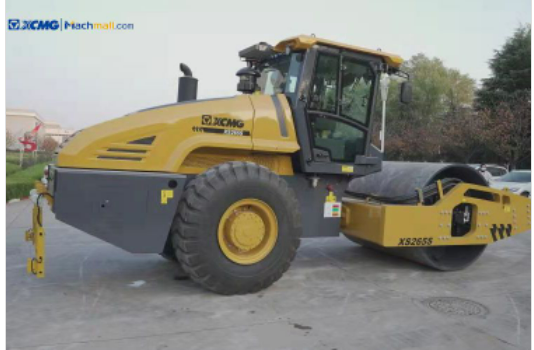

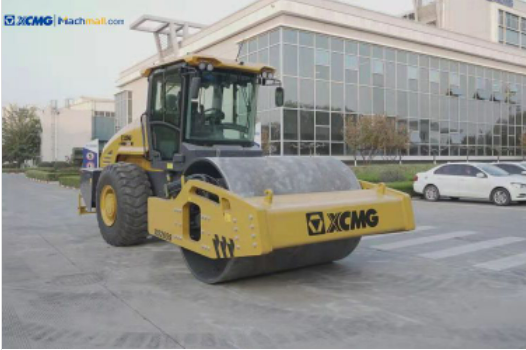

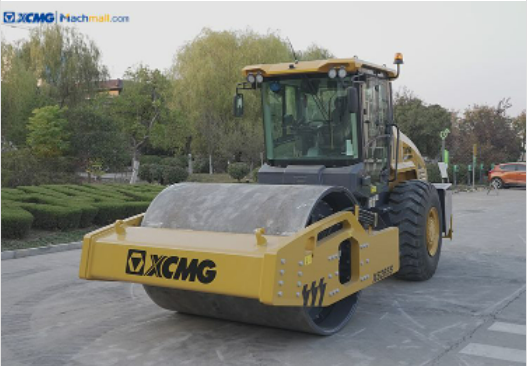

XCMG Cruking 26 ton single drum road roller Full hydraulic Reliable Quality XS265

XS265 is a high-efficiency, energy-saving and super-heavy mechanically driven single-drum vibratory roller. is an ideal compaction equipment for the construction of high-grade highways, airports, ports, dams and industrial construction sites.



XS265 is mainly suitable for the compaction of the ground, suitable for the compaction of pebble, sandy soil, moraine soil, blasting rock and cohesive soil, and also suitable for the basic materials of concrete and stabilized soil in various large-scale projects Compaction,







Performance advantages:



1. Car-like automatic transmission for better driving



Road roller XS265JS uses an unmaintained clutch gearbox, which simplifies operation and reduces failure points;



2. Industry advanced vibration technology, more efficient



The XS265JS road roller adopts a sliding block buffer non-impact exciter, which can start and stop smoothly.



3. Multi-faceted security protection to ensure travel safety



road roller XS265JS has no risk of rusting and polluting fuel; it is safe and anti-theft.



Item
Unit
XS265
Operating mass
kg
26000
Distributed mass of driving wheel
kg
13500
Distributed mass of vibration wheel
kg
6500
Static line load
N/cm
621
Vibration frequency
Hz
28/33
Theoretical amplitude
mm
1.86/0.93
Exciting force
kN
370/255
Speed range
km/h
0-10.4
Wheel base
mm
3310
Compaction width
mm
2130
Theoretical gradeability
%
50
Minimum turn radius
mm
6500
Drum diameter
mm
1600
Minimum ground clearance
mm
466
Engine Rated speed
r/min
2000
Engine Rated power
kW
140
Overall dimension (length*width*height)
mm
6990×2470×3260mm



Cruking 26 ton single drum road roller Full hydraulic Reliable Quality XS265
