Summary
- Weight:3340KG
- Dimension(L*W*H):2682*1328*2722mm
- Power(W): 30kW
- Model Number:XMR303S
- Brand Name:XCMG
- Place of Origin:XUZHOU, CHINA
- Grade Ability:30%
- Type:Double Drum Roller
- Certification:CE/UL
Specifications
- weight:3340.000kg
- Condition:New
- Moving Type:Other

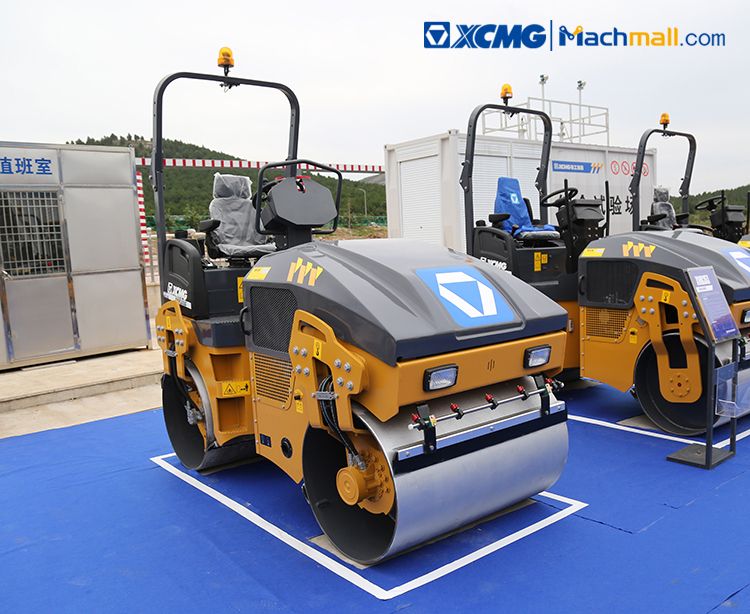

XCMG 3 ton light vibratory road roller compactor equipment for North America.
XCMG 3 ton light vibratory road roller compactor equipment is a light vibratory roller with operating weight of 3.34 tons. This machine is suitable for surface and edge compaction construction for asphalt engineering, cement engineering and So on, also suitable for sub-base and base, sand and gravel material compaction work, is the idealist compaction machinery for all sorts of parking lot construction, road.
1, The uniform compaction technology is adopted to ensure the compaction uniformity of the compressed materials.
2, Long life vibration drum structure design ensures the reliability and service life of the product. Large exciting force designensure the compacting efficiency and effective depth.
3, Large clearance and edge clearance to ensure the compaction of various working conditions.
|
Parameter |
Unit |
XMR303S |
|
Working weight |
kg |
3340 |
|
Static line load (front/rear) |
N/cm |
123/155 |
|
Vibration frequency |
Hz |
63 |
|
Amplitude |
mm |
0.49 |
|
Exciting force |
kN |
36 |
|
Vibration wheel (diameter x width) |
mm |
746×1200 |
|
Theoretical climbing ability |
% |
30 |
|
Speed of work |
km/h |
0～10.5 |
|
Wheelbase |
mm |
1870 |
|
Steering angle |
° |
±30 |
|
Swing angle |
° |
±10 |
|
Minimum turning radius (inner) / (outside) |
mm |
4190 |
|
Minimum ground clearance |
mm |
290 |
|
Rated power |
kW |
30 |
|
Rated speed |
r/min |
2800 |
