Summary
- Weight:14000kg
- Dimension(L*W*H): 5146*2317*3099mm
- Power(W): 111kw
- Model Number:XD143
- Brand Name:XCMG
- Place of Origin:XUZHOU, CHINA
- Grade Ability: 35%
- Travel Speed:0-6 / 0-12km/h
Specifications
- weight:14000.000kg
- Condition:New
- Moving Type:Other

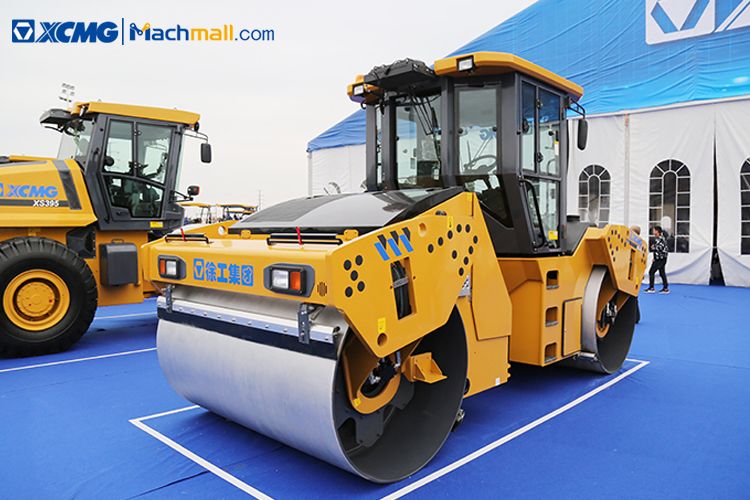

XCMG XD143 14 ton asphalt road roller compactor.
XCMG XD143 14 ton asphalt road roller compactor is designed for the compaction of asphalt pavement, asphalt layer of different materials and different thickness, especially suitable for roads, parking lots, airports and other large engineering projects, can also be used for compaction of roadbed and sub-base material, wide application scope.
XD143 asphalt road roller compactor Performance Characteristics:
1, Using the current mainstream of frameless structure, effectively improve the edge compaction performance of the machine.
2, Vibration roller adopts traditional drum type four support structure, long service life, make the left and right drum vibration amplitude difference within 3%, effectively guarantee the road surface evenness.
3, When the new type of casing is opened to both sides, the engine system can be maintained conveniently.
4, Additionally the whole compartment is conveyed with airtight processing, effectively isolate the engine noise.
|
Parameter |
|
Unit |
XD143 |
|
Weight distribution |
Working weight |
kg |
14000 |
|
|
Front wheel distribution weight |
|
7000 |
|
|
Rear wheel distribution weight |
|
7000 |
|
Maneuverability |
Speed range |
km/h |
0-6 / 0-12 |
|
|
Theoretical gradeability |
% |
35 |
|
|
Minimum turning radius (in/out) |
mm |
4800/6930 |
|
|
Largest amount of crab |
mm |
±160 |
|
|
Swing angle |
° |
±8° |
|
|
Steering angle |
° |
±35° |
|
Compaction performance |
Static linear load |
N/cm |
322/322 |
|
|
Nominal amplitude |
mm |
0.35/0.85 |
|
|
Vibration frequency |
Hz |
55/45 |
|
|
Exciting force (high frequency/low frequency) |
kN |
98/158 |
|
Engine |
rated power |
kw |
98 |
|
|
rated speed |
r/min |
2300 |
