Summary
- Model Number:XGC80
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
- Rated Lifting Moment:341t.m
- Rated Loading Capacity:85 ton
- Application:construction
- Certification:CE/ISO9001
Specifications
- weight:1.000kg
- Condition:New
- Moving Type:Other
- Boom length:13-58m
- Max. dimension in transport state:13.05*3.4*3.3m
- Max. travel speed:0.9km/h
- Fixed jib length:7-19m
- Max. slewing speed:2r/min

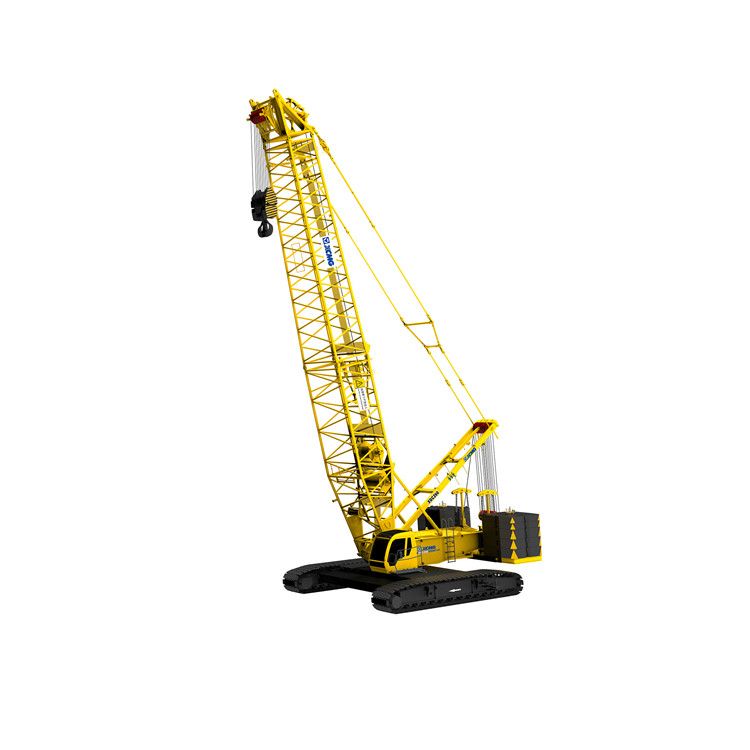

XCMG XGC85 crawler crane.
XGC85
is a new generation crawler crane which is successfully developed by XCMG after
QUY80 series. Inheriting the advantages from the old generation product, XGC85
crawler crane pays more attention to the improvement of lifting performance,
assembly/disassembly and transport economy, maintenance convenience and
operation comfort. The system is mature and reliable with complete safety
devices. Fitted with multiple advanced technologies, such as gantry
self-erecting function, basic machine integration transport and etc., the
crane’s performance is superior to that with other domestic brands in various
aspects.
An
overall research on market application was carried out during the initial
development period of XGC85 crawler crane, main and aux. hook one-key switch
function is specially designed, greatly improve the lifting operation
efficiency.
|
Item |
Unit |
Parameter value |
|
Parameter Item |
- |
XGC85 |
|
Operation performance parameter |
* |
|
|
Max. rated lifting capacity for boom |
(t) |
85 |
|
Max. rated lifting capacity for fixed jib |
(t) |
12 |
|
Max. rated lifting capacity for luffing jib |
(t) |
— |
|
Max. load moment |
(t.m) |
341 |
|
Max. rated lifting capacity for tower jib |
(t) |
— |
|
Max. rated lifting capacity for boom single top |
(t) |
8 |
|
Max. rated lifting capacity for special jib |
(t) |
— |
|
Dimension parameter |
* |
|
|
Boom length |
(m) |
13~58 |
|
Boom luffing angle |
(°) |
-3~80 |
|
Fixed jib length |
(m) |
7~19 |
|
Tower jib length |
(m) |
— |
|
|
(m) |
13.05×3.4×3.3 |
|
Max. dimension of single unit in transport state(L×W×H) |
||
|
Fixed jib offset angle |
(°) |
10,30 |
|
Special jib length |
(m) |
— |
|
Speed parameter |
* |
|
|
Max. single line speed for hoist mechanism |
(m/min) |
120 |
|
Max. single line speed for boom luffing mechanism |
(m/min) |
70 |
|
Max. single line speed for jib luffing mechanism |
(m/min) |
— |
|
Max. slewing speed |
(r/min) |
2 |
|
Max. travel speed |
(km/h) |
0.9 |
|
Grade ability |
(%) |
30 |
|
Mean ground pressure |
(MPa) |
0.087 |
|
Max. single line speed for tower jib luffing mechanism |
(m/min) |
— |
|
Max. single line speed for superlift luffing |
(m/min) |
— |
|
Engine |
* |
|
|
Model |
- |
SC9DK270G3/QSC8.3 |
|
Engine power |
(kW) |
200/183 |
|
Emission |
- |
|
|
National III/ EU III |
||
|
Mass parameter |
* |
|
|
Overall crane mass |
(t) |
|
|
71.5(main
hook, 13m boom) |
||
|
Max. mass of single unit in transport state |
(t) |
41.2 |
