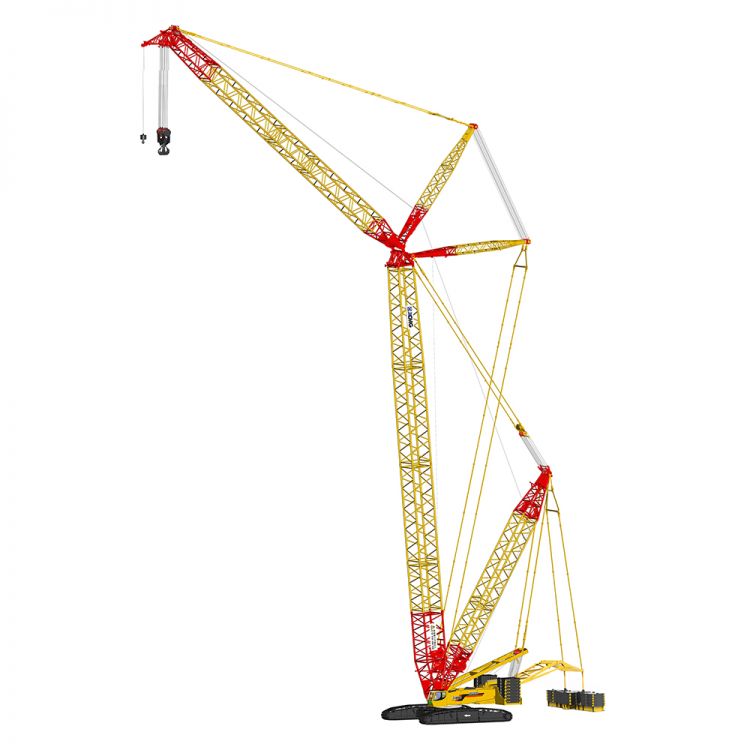

XGC650 crawler crane
       XGC650 is a new generation crawler crane which is successfully developed by XCMG on the basis of QUY series product. The crane of this model has been improved from the aspects of assembly and disassembly convenience, operation comfort and lifting capacity, safer and more reliable. Equipped with various advanced technologies such as mast one-key erecting and stepless luffing, the crane’s performance is superior to that with other domestic brands in various aspects.
       Under the premise of conventional function realization, wind power working condition has been specially developed for XGC650 to meet the installation requirement of 2.0MW~3.0MW wind power equipment.

Item	Unit	Parameter value
Operation performance parameter		*
Max. rated lifting capacity for boom	(t)	650
Max. rated lifting capacity for fixed jib	(t)	—
Max. rated lifting capacity for luffing jib	(t)	330
Max. load moment	(t.m)	7848
Max. rated lifting capacity for tower jib	(t)	330
Max. rated lifting capacity for boom single top	(t)	30
Max. rated lifting capacity for special jib	(t)	170
Dimension parameter		*
Boom length	(m)	24～108( heavy type)/    66～138(light type)
Boom luffing angle	(°)	-3～85
Fixed jib length	(m)	—
Tower jib length	(m)	24～96
Max. dimension of single unit in transport state(L×W×H)	(m)	12×3.3×3.4
Fixed jib offset angle	(°)	—
Special jib length	(m)	12
Speed parameter		*
Max. single line speed for hoist mechanism	(m/min)	130
Max. single line speed for boom luffing mechanism	(m/min)	2×58
Max. single line speed for jib luffing mechanism	(m/min)	—
Max. slewing speed	(r/min)	0.7
Max. travel speed	(km/h)	0.8
Grade ability	(%)	30
Mean ground pressure	(MPa)	0.146
Max. single line speed for tower jib luffing mechanism	(m/min)	100
Max. single line speed for super lift luffing	(m/min)	110
Engine		*
Model	-	QSX15
Engine power	(kW)	447
Emission	-	EU III
Mass parameter		*
Overall crane mass	(t)	496(main hook, 24m boom)
Max. mass of single unit in transport state	(t)	65
