Specifications
- weight:16400.000kg
- Condition:New
- Moving Type:Wheel

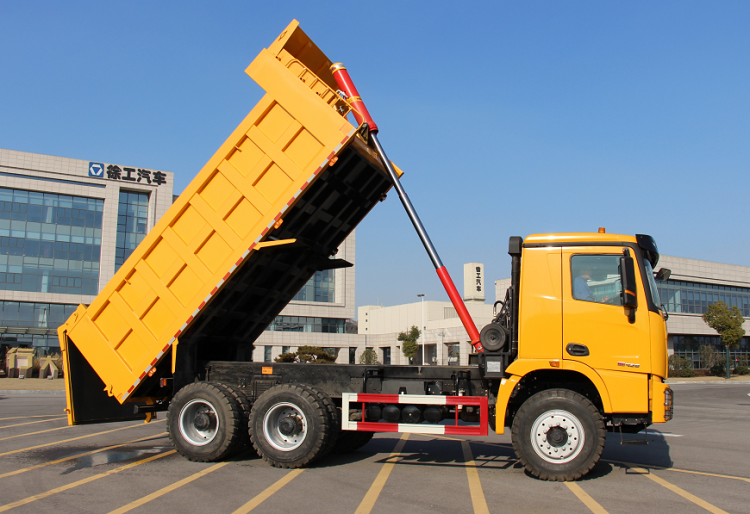

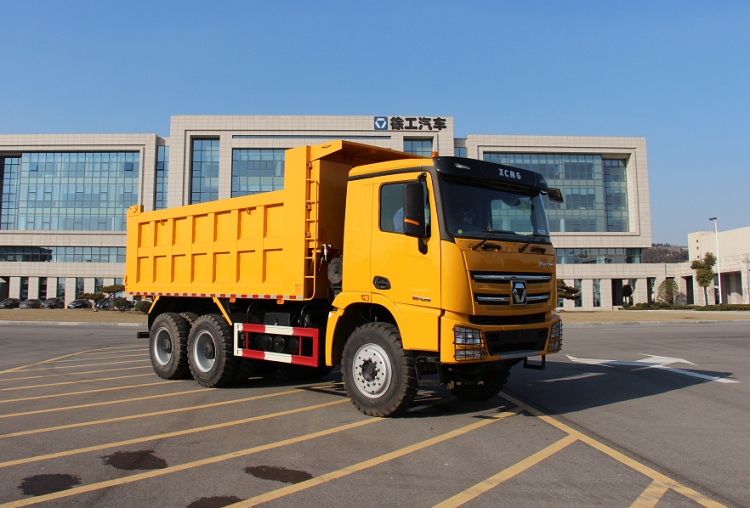

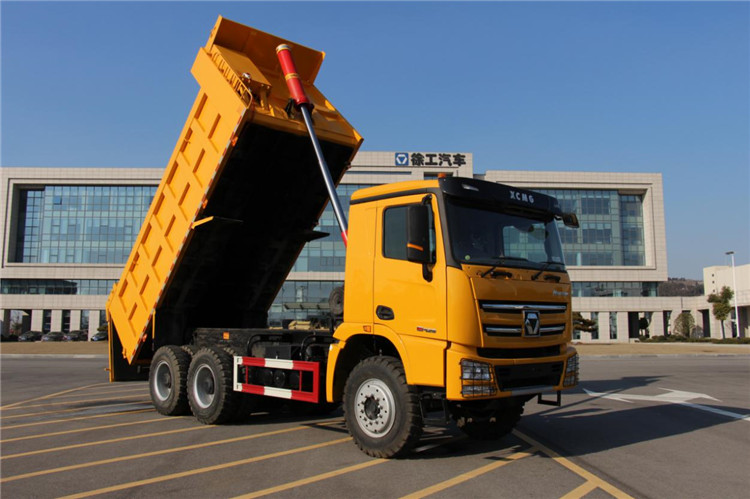

XCMG Dumper XGA3250D3WC New 380HP Dumper 6×4 Dumper Trucks.
XCMG
dump truck is designed for sand, stone, ore, ore powder, iron powder,
construction slag and other different loads. Based on the construction site and
urban road driving, it has a series of products of heavy load type, composite
type and urban construction slag type.
This
kind of product is characterized by strong power and efficient transportation,
and has passed thousands of industrial verification experiment.After three
years of practice and improvement, the power system, steering system and
braking system have been comprehensively optimized and improved, which is more
suitable for all kinds of heavy loads and complex working conditions.It has the
obvious advantages of high bearing capacity, high reliability, high safety and
high economy.
Advantages and Highlights:

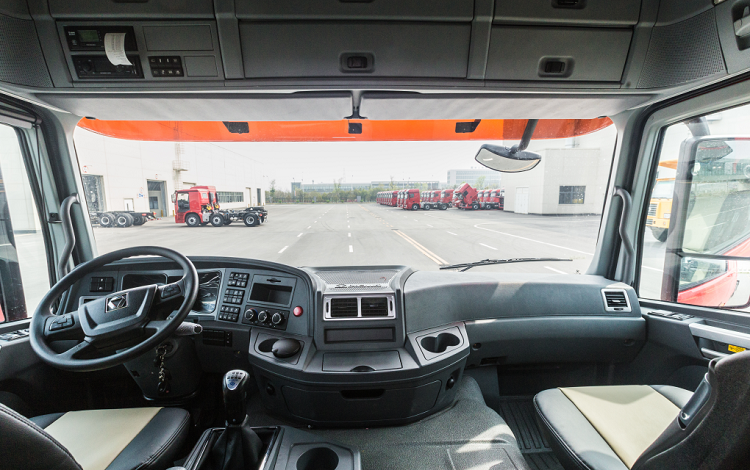

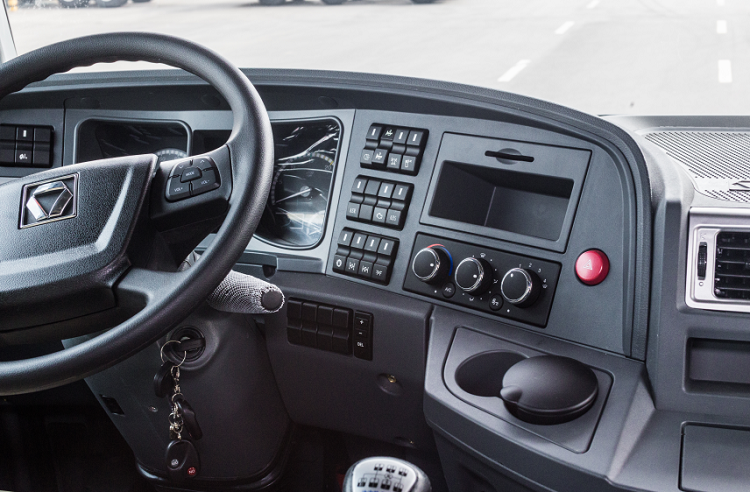

Comfortable
Driving, Pleasant Enjoyment
*
Symmetrical, refined, excellent and ergonomic design, facilitates your driving
operation; covering fttings adopt leather package, strong light absorption, no
high-light points, reduce visual fatigue.
*
Multi-functional configuration, large storage space; strictly control the gap
and chromatism, meticulous work; silkstocking airbag seats.
Maximum Supporting capacity and practicability
*
Golden power assembly-For the economic and reliabilit, reliable brands engine,
Fast gearbox, Steyr axles are adopted for our manufacturing. The range of power
output are from 280hp to 420hp to achieve multi-working-condition.
*
Modular designed chassis, neat arrangement highly universalizable. Meanwhile,
the reliability and convenience of maintenance have been improved.
*
HANVAN is the industry leader of Chinese heavy- -duty truck market, we provide
standard model, composite model, heavy model, super -duty model for your
personal needs.
* The key part have
been optimized by CAE and passed relative quality test, the reliability of
vehicle can be guaranteed.
|
Vehicle Model |
XGA3250D3WC |
||
Mass parameter |
Curb weight |
16400kg |
||
GVW |
60000kg |
|||
Performances |
Max
Speed |
78km/h |
||
Min.
turning diameter |
20m |
|||
Grade ability |
≥30% |
|||
Hill-hold
ability |
≥20% |
|||
Fuel
Consumption |
40L |
|||
Fuel
Tank |
400L |
|||
Dimensions |
Overall
dimensions |
Length |
8065mm(Chassis)/8825mm(Total) |
|
Width |
2500mm |
|||
Height |
3192(Chassis)/3562(Total) |
|||
Wheelbase |
4000+1400
mm |
|||
Wheel
tread |
Front |
2060mm |
||
Rear |
1860mm |
|||
Min.
Clearance |
249mm |
|||
Approach angle |
24° |
|||
Departure angle |
23° |
|||
Front
overhang |
1500mm |
|||
Rear
overhang |
1165mm(Chassis)/1925mm(Total) |
|||
Cargo
size |
5800×2350×1300mm |
|||
Cabin |
Model |
G7SM |
||
Passengers |
2 |
|||
Engine |
Model |
WP10.375 |
||
Displacement |
9.726L |
|||
Output power |
276kW |
|||
Mix torque speed |
1460N·m |
|||
Clutch |
Model |
Φ430
Pull type diaphragm spring clutch |
||
Operation |
Hydraulic
manual |
|||
Transmission |
Model |
12JSD160T(PTO optional) |
||
Manipulation |
Flexible
shaft |
|||
Forward
ratio |
15.53/12.08/9.39/7.33/5.73/4.46/3.48/2.71/2.1/1.64/1.28/1 |
|||
Reverse
ratio |
14.86/3.33 |
|||
Driven
axle |
Model |
16T MAN |
||
Ratio |
5.73 |
|||
Brake
type |
Drum
type |
|||
Differential
lock |
Differential
lock between axles and wheels |
|||
Front
axle |
Model |
9.5t |
||
Brake
type |
Drum
type |
|||
Tire |
Rim |
9.75×22.5/8.50V-20 |
||
Tire |
12.00R20-18PR |
|||
Frame |
Type |
Straight
beam of equal width |
||
Main
beam |
320×90×8
mm |
|||
Auxiliary
beam |
304×90×8
mm |
|||
Width
of chassis structure |
865mm |
|||
Suspension |
Front |
Type |
Multi-spring |
|
Amount
of spring plate |
10 |
|||
Rear |
Type |
Multi-spring |
||
Amount
of spring plate |
13 |
|||
Steering |
Steering
type |
Φ130
Circulating ball type hydraulic power |
||
Ratio |
23.27 |
|||
Max
pressure of pump |
17MPa |
|||
Brake |
Rated
working pressure |
1MPa |
||
Driving
brake |
Dual
circuit pneumatic braking |
|||
Parking
brake |
Spring
energy storage air brake |
|||
Assistant
brake |
Engine
exhaust brake |
|||
Electric System |
Voltage
|
24V |
||
Generator
power |
1.96kw |
|||
Battery
voltage and Capacitance |
2×12V/165Ah |
