Specifications
- weight:16710.000kg
- Condition:New
- Moving Type:Other
- Driving Type:Right

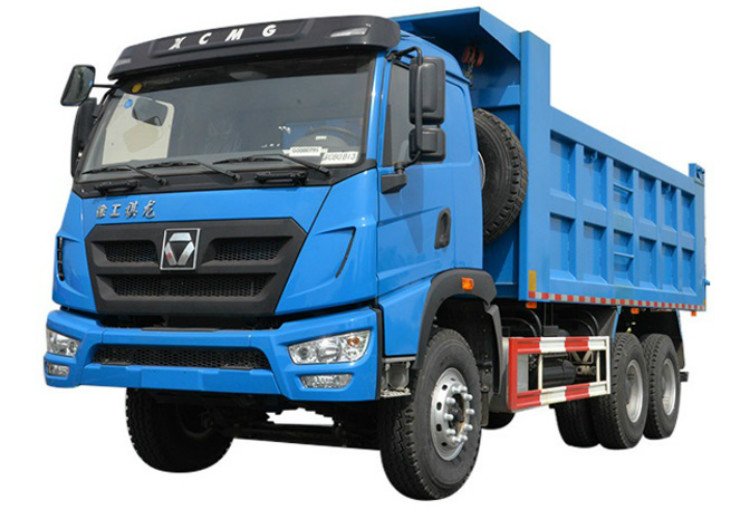

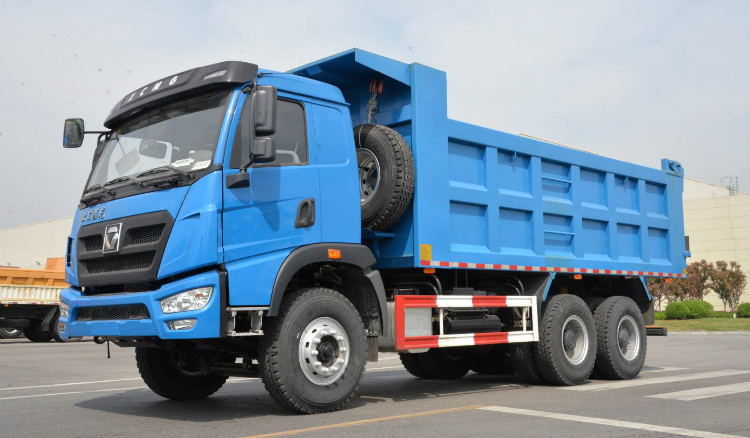

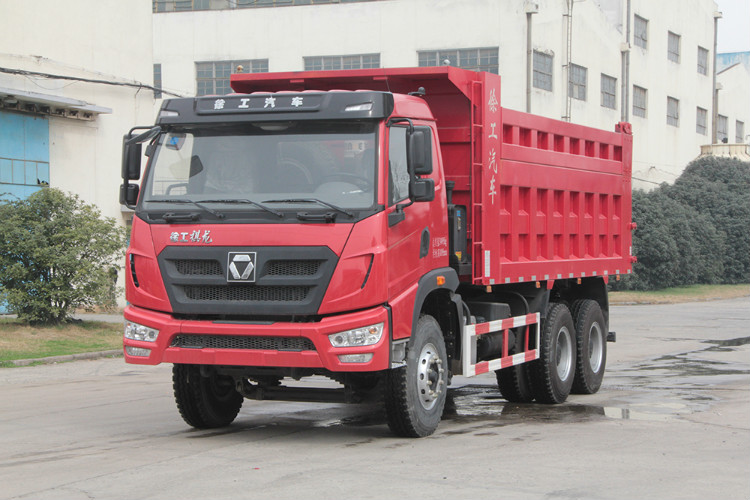

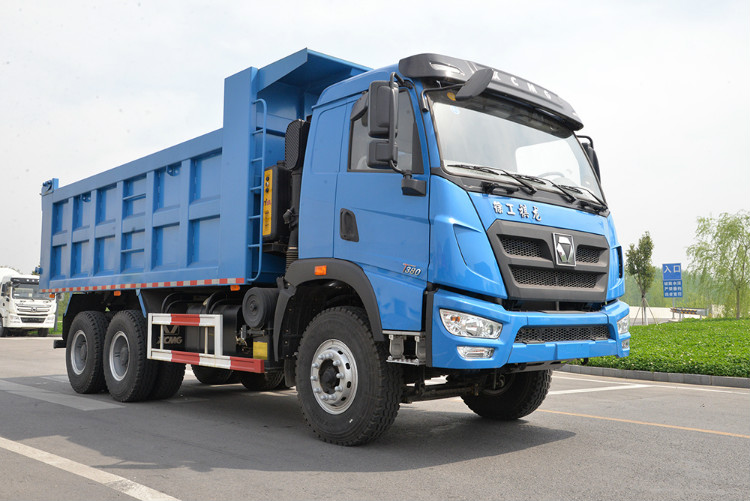

XCMG 371hp High Tip
Dumper Trailer 42t 6*4 Hydraulic Dumper Big Trucks XGA3250D2WC For Cambodia Sale.
Qilong
T-series dump truck is designed for sand, stone, ore, ore powder, iron powder,
construction slag and other different loads. Based on the construction site and
urban road driving, it has a series of products of heavy load type, composite
type and urban construction slag type. This kind of product is characterized by
strong power and efficient transportation, and has passed thousands of
industrial verification experiment.
After
three years of practice and improvement, the power system, steering system and
braking system have been comprehensively optimized and improved, which is more
suitable for all kinds of heavy loads and complex working conditions. It has
the obvious advantages of high bearing capacity, high reliability, high safety
and high economy.
In
terms of power assembly, "Qilong" T-series heavy truck adopts
domestic and foreign well-known high-power engine, optimizes the matching of
accessory system, applies foreign well-known software to optimize the
performance according to the use conditions of different models, reasonably
matches with the transmission system, and improves the power and economic
performance of the whole vehicle.
In
the bearing system, "Qilong" T-series heavy truck according to the
market segmentation and the use environment, pursues the good bearing life
capacity and the appropriate smoothness. It meeting different user requirements
about matching combination of suspension components assembly.
In
the brake system, "Qilong" T-series heavy truck is designed to meet
ECE regulations and gb12676, improve the brake system pressure, shorten the
brake distance and improve the safety; adopt high-performance brake valve and
quick connector to improve the system reliability.
Vehicle model |
XGA3250D2WC |
||
Mass parameter |
Curb weight |
16710kg |
|
GVW |
41500kg |
||
Performance |
Drive form |
/ |
|
Max. speed |
79km/h |
||
Min. turning diameter |
17m |
||
(≥)Grade ability |
39% |
||
Hill-hold ability |
20% |
||
Fuel Consumption |
40L |
||
Fuel tank |
400L |
||
Dimensions |
Overall dimensions |
Length |
8640mm |
Width |
2550mm |
||
Height |
3490mm |
||
Wheelbase |
3800+1400mm |
||
Wheel tread |
Front tire |
2060mm |
|
Rear tire |
1860mm |
||
Min. Clearance |
281mm |
||
Approach angle |
23° |
||
Departure
angle |
25° |
||
Front overhang |
1500mm |
||
Rear overhang |
1940mm |
||
Cargo size |
5800×2300×1500/5295mm |
||
Cab |
Model |
G7SMR |
|
Passengers |
2 |
||
Engine |
Model |
WD615.47 |
|
Displacement |
9.726L |
||
Output power |
273kW |
||
Max. torque speed |
1500 N·m |
||
Clutch |
Model |
Φ430 Pull type
diaphragm spring clutch |
|
Operation |
Hydraulic manual |
||
Transmission |
Model |
Standard 9JSD150A; Optional 10JSD160 |
|
Operation |
Flexible shaft |
||
Forward ratio |
12.57~1.00;14.96~1 |
||
Reverse ratio |
13.14; Optional 14.24/3.19 |
||
Driven axle |
Model |
16T |
|
Main reducer ratio |
5.73 |
||
Brake type |
Drum |
||
Differential lock |
Inter-shaft and inter-wheel |
||
Front axle |
Capacity |
9.5t |
|
Brake type |
Drum type |
||
Wheel |
Rim |
8.5V-20 |
|
Tire |
12.00R20-18PR |
||
Frame |
Main beam |
320×90×8mm |
|
Auxiliary beam |
304×90×8mm |
||
Width of chassis structure |
865mm |
||
Suspension |
Front |
Type |
Multi-spring |
Amount of spring plate |
10 |
||
Rear |
Type |
Multi-spring |
|
Amount of spring plate |
13 |
||
Steering |
Model |
Φ120 Circulating ball type hydraulic power |
|
Steering Ration |
23.27 |
||
Max pressure of pump |
15MPa |
||
Brake System |
Rated pressure |
1MPa |
|
Service brake system |
Dual circuit pneumatic braking |
||
Parking brake system |
Spring energy storage air brake |
||
Auxiliary braking system |
Engine exhaust brake |
||
Electrical system |
Voltage |
24V |
|
Generator power |
2.2kw |
||
Battery voltage/capacitance |
2×12V/165Ah |
