Summary
- Max Digging Radius:6750mm
- Machine Weight:25870Kg
- Maximum Digging Depth:6960mm
- Maximum Digging Height:9595mm
- Bucket capacity:1.2m3
- Operating Weight:25870Kg
- Model Number:XE250E
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
Specifications
- weight:25870.000kg
- Condition:New
- Moving Type:Other

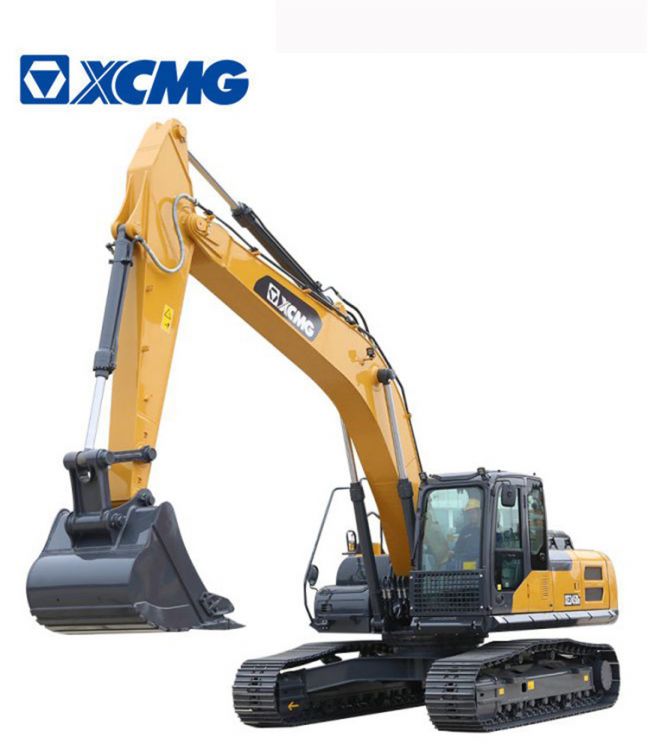

XCMG 25 Ton Crawler Excavator Machine Chinese
New Excavators XE250E With Parts For Sale.
The XE250E adopts an efficient hydraulic
system, supplemented by a new large-diameter multi-way control valve. The spool
is further optimized to reduce the internal pressure loss of the channel,
improve handling and improve the efficiency of the composite operation.
High-performance silicone oil damper for
improved comfort; panoramic sunroof design with a wider field of view and
centralized operation buttons for a full upgrade of the driving experience. The
full-size heavy-duty reinforced chassis structure, combined with the reinforced
structural working device design, ensures the stability of the whole machine
while satisfying the powerful digging force.
It is widely used in small and medium-sized
earth and stone works, municipal construction, highway and bridge construction,
excavation of ditches, and farmland water conservancy construction.
|
Sales model |
Unit |
XE250E |
|
|
Operating weight |
Kg |
25870 |
|
|
Bucket capacity |
m³ |
1.2 |
|
|
Engine |
Model |
/ |
QSB6.7 |
|
No. of cylinders |
/ |
6 |
|
|
Rated power |
kw/rpm |
142/2000 |
|
|
Maximum
torque/speed |
N.m/rpm |
803/1500 |
|
|
Displacement |
L |
6.7 |
|
|
Main performance |
Travel speed |
km/h |
6.0/4.1 |
|
Swing speed |
r/min |
11.6 |
|
|
Gradeability |
° |
≤35 |
|
|
Ground pressure |
kPa |
56.7 |
|
|
Bucket digging
force |
kN |
176 |
|
|
Arm digging
force |
kN |
125 |
|
|
Maximum tractive
force |
kN |
188.6 |
|
|
Hydraulic system |
Rated flow of
main pump |
L/min |
2×260 |
|
Main safety
valve pressure |
MPa |
34.3/37 |
|
|
Travel system
pressure |
MPa |
34.3 |
|
|
Swing system
pressure |
MPa |
25 |
|
|
Pilot system
pressure |
MPa |
3.9 |
|
|
Oil Capacity |
Fuel tank
capacity |
L |
400 |
|
Hydraulic tank
capacity |
L |
256 |
|
|
Engine oil
capacity |
L |
24 |
|
|
Appearance size |
A Overall length |
mm |
10220 |
|
B Overall width |
mm |
2990 |
|
|
C Overall height |
mm |
3180 |
|
|
D Width of
platform |
mm |
2830 |
|
|
E Track length |
mm |
4640 |
|
|
F Overall width
of chassis |
mm |
2990 |
|
|
G Track width |
mm |
600 |
|
|
H Wheel base of
crawler |
mm |
3842 |
|
|
I Track gauge |
mm |
2390 |
|
|
J Counterweight
clearance |
mm |
1050 |
|
|
K Min. ground
clearance |
mm |
485 |
|
|
L Min. tail
swing radius |
mm |
2985 |
|
|
M Track height |
mm |
935 |
|
|
Working scope |
A Max. digging
height |
mm |
9595 |
|
B Max. dumping
height |
mm |
6745 |
|
|
C Max. digging
depth |
mm |
6960 |
|
|
D Maximum depth
cut for 2240mm(8 ft) level bottom |
mm |
6750 |
|
|
E Max. vertical
wall digging depth |
mm |
5545 |
|
|
F Max. digging
radius |
mm |
6750 |
|
|
G Min. swing
radius |
mm |
3850 |
|
|
Standard |
Length of boom |
mm |
6000 |
|
Length of arm |
mm |
2960 |
|
|
Bucket capacity |
m³ |
1.2 |
|
