Summary
- Rated Speed:11.7r/min
- Max Digging Radius:8304mm
- Maximum Digging Depth:5535mm
- Maximum Digging Height:8649mm
- Bucket capacity:0.32-0.71m3
- Operating Weight:14600Kg
- Model Number:XE155D
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
Specifications
- weight:14600.000kg
- Condition:New
- Moving Type:Other

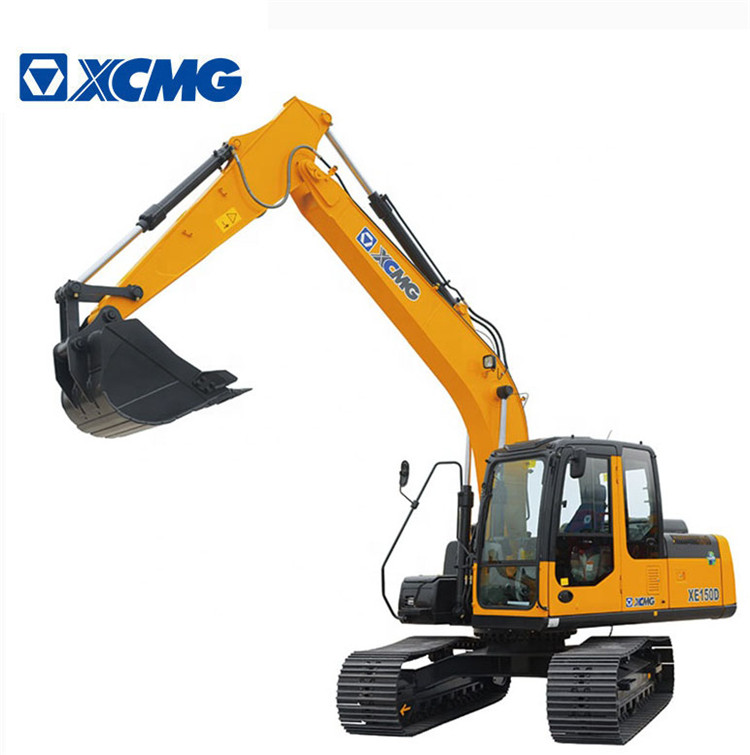

XCMG 15 Ton Excavators Machine XE155D With Excavator Hydraulic Hammer Attachments .
The hydraulic excavator subject to full hydraulic drive has been widely used throughout China and exported to more than twenty countries and regions in the world by virtue of its high working efficiency like medium-sized excavators and such characteristics of less fuel consumption and higher flexibility for small-sized excavators.
Its working mechanism has a high-strength structure, able to meet the demands of all kinds of earthwork engineering if working together with a reinforced bucket; the latest hydraulic components and electromechanical integration control technology can make full use of the engine power and save every drop of fuel to create more value for customers; its high-power driving motor can work freely in a variety of sites; all kinds of points for daily maintenance and service can be accessible easily on the ground, which can further facilitate the maintenance operation.
|
Sales model |
Unit |
XE155D |
|
|
Operating weight |
Kg |
14600 |
|
|
Bucket capacity |
m³ |
0.32-0.71 |
|
|
Engine |
Model |
/ |
QSF3.8 |
|
No. of cylinders |
/ |
4 |
|
|
Output power |
kw/rpm |
93/2200 |
|
|
Maximum torque/speed |
N.m/rpm |
500/1300 |
|
|
Displacement |
L |
3.8 |
|
|
Main performance |
Travel speed |
km/h |
5.3/3.2 |
|
Swing speed |
r/min |
11.7 |
|
|
Gradeability |
° |
35 |
|
|
Ground pressure |
kPa |
37 |
|
|
Bucket digging force |
kN |
106.9 |
|
|
Arm digging force |
kN |
73.4 |
|
|
Maximum traction |
kN |
134 |
|
|
Hydraulic system |
Rated flow of main pump |
L/min |
123.5*2 |
|
Main safety valve pressure |
MPa |
34.3/37 |
|
|
Travel system pressure |
MPa |
34.4 |
|
|
Rotary system pressure |
MPa |
25 |
|
|
Pilot system pressure |
MPa |
3.9 |
|
|
Oil Capacity |
Fuel tank capacity |
L |
260 |
|
Hydraulic tank capacity |
L |
105 |
|
|
Engine oil capacity |
L |
11 |
|
|
Appearance size |
A Overall length |
mm |
7795 |
|
B Overall width |
mm |
2590 |
|
|
C Overall height |
mm |
2900 |
|
|
D Width of platform |
mm |
2490 |
|
|
E Track length |
mm |
3658 |
|
|
F Overall width of chassis |
mm |
2590 |
|
|
G Track width |
mm |
600 |
|
|
H Length to center of rollers |
mm |
2910 |
|
|
I Track gauge |
mm |
1990 |
|
|
J Counterweight clearance |
mm |
948 |
|
|
K Min. ground clearance |
mm |
477 |
|
|
L Min. tail swing radius |
mm |
2325 |
|
|
M Track height |
mm |
836 |
|
|
Working scope |
A Max. digging height |
mm |
8649 |
|
B Max. dumping height |
mm |
6185 |
|
|
C Max. digging depth |
mm |
5535 |
|
|
D Maximum depth cut for 2240mm(8 ft) level bottom |
mm |
5324 |
|
|
E Max. vertical wall digging depth |
mm |
4697 |
|
|
F Max. digging radius |
mm |
8304 |
|
|
G Min. swing radius |
mm |
2445 |
|
|
Standard configuration |
Length of boom |
mm |
4600 |
|
Length of arm |
mm |
2520 |
|
|
Bucket capacity |
m³ |
0.61 |
|
|
Optional configuration |
Length of boom |
m³ |
/ |
|
Length of arm |
m³ |
2100/3010 |
|
|
Bucket capacity |
m³ |
0.32/0.4/0.71 Earth Working bucket 0.52 Rock bucket |
|
