Summary
- Rated Load:2500kg
- Dimension(Long*Breadth*High):8000*2310*3424 mm
- Type:Backhoe Loader
- Place of Origin:Jiangsu, China
- Model Number:WZ30-25
- Brand Name:XCMG
- Certification:CE/ISO
Specifications
- weight:7600.000kg
- Condition:New
- Moving Type:Wheel

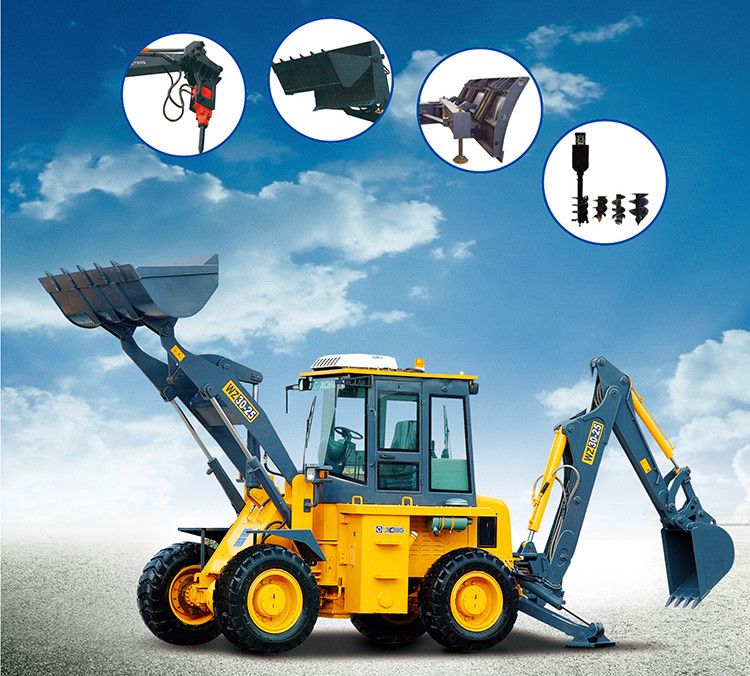

XCMG Official 2.5 ton mini tractor with backhoe and front loader WZ30-25.
The WZ30-25 is a new multi-function engineering machine which gathering the loading and excavating in the integral whole machine. It is the new generation model of the development based on the same kind product technique in domestic and international. Having adopted four wheel drive, hydraulic torque converter, hydraulic steering system, hydraulic.
It is extensively used in the road maintenance, farm and developments, getting clay for making bricks, piping builds, the cable builds, park virescence and the excavating of the road opens to dig etc.
Model Characteristics:
1. The Yucai engine
Low noise, low exhaust gas, low west, green environmental protection, driving motive, good reliability. The spirit valve control take type brake system and parking brake system move two unite as one, when there is trouble in the gas brake system, it can make in time brake automatically,so it is more safety.
2. Humanization designs
The hand handle layout reasonable, manipulating is portable;steer device, gauge dish and the chair all can be adjusted in up-down and front-back directions according to your sense, so it is comfortable. The back wheel bridge can swing up and down round the cancer, it make wheels has well cling, so the machine has good span and cross capability.
3. Optimized load work device
Reasonable joint layout,dependable position limit function. Lavelling bucket automati-cally in unload position, lacenning labor intensity,and the work range is larger, workfore is more study and steady, the work efficiency is higher.
Optional parts:
4 in 1 bucket/ hammers/ Snow plough/ Augers
Description |
Unit |
Parameter value |
Bucket capacity(heaped) |
m³ |
1 |
Digger capacity |
m³ |
0.3 |
Dumping clearance |
mm |
2650 |
Dumping reach |
mm |
930 |
Max.steering angle |
° |
±35 |
Max.steering angle of dig working device |
° |
±85 |
Traceing speed I / II / III / IV |
km/h |
0-6.2 / 0-12 / 0-20 / 0-30 |
Back I / II speed |
km/h |
0-8 / 0-28.5 |
Diesel Model |
|
YC4A110-T310/YC41390-T20 |
Modality |
|
4-stroke water-cooled inline type/4-stroke water-cooled inline type |
Rated power |
kW |
73.5 (Turbocharged)/65 |
Rated speed |
r/min |
2200 |
Wheel base |
mm |
2600 |
Tread |
mm |
1700 |
Tires |
|
16/70-24 |
Max.digging depth |
mm |
4400 |
Max.digging radium |
mm |
5471 |
Overall dimensions(L×W×H) |
mm |
8000×2310×3424 |
Operating weight |
kg |
9500 |
