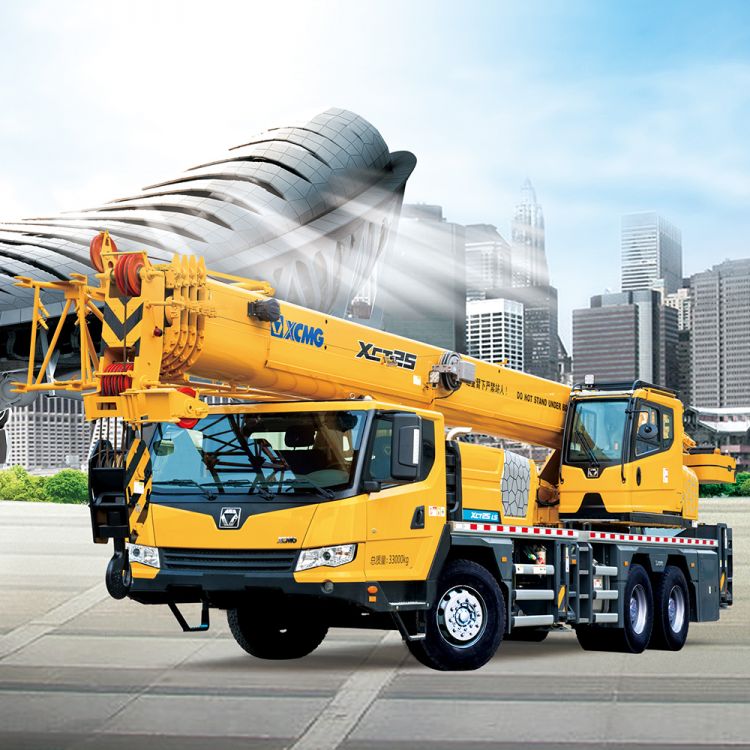

XCMG Official 25ton Truck Crane XCT25L5_E (Euro stage IV) for sale

View All >

After-sales Service： Engineers available to service machinery overseas

Min Order Quantity： 1 Unit

Delivery Time：

In Stock (Within 7 days)

Production (Within15 to 20 days)

Customization (negociated delivery time)

After-sales Service：

1. It is recommended that you keep in touch with the seller after purchasing offline...

About after-sales service:

1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:

1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.

Inquiry Chat Now

Favorite Products

Product:

XCMG Official 25ton Truck Crane XCT25L5_E (Euro stage IV) for sale

Quantity:

- + /EA

Content:

Or choose from these questions:

What is the best price you can offer?

Do you support customization?

What is the MOQ for this product?

*Email:

Full Name:

Mobile phone:

Specs & Compare

Details

Specs & Compare

Select 3 models for comparison

Model Number

Brand Name

Place of Origin

Span

Max. Lifting Height

Max. Lifting Load

Rated Lifting Moment

Rated Loading Capacity

Application

Certification

Engineering & Construction Machinery

XCT25L5_E

XCMG

China

25t

CE/ISO9001

+ Add a Product

Summary

Model Number:XCT25L5_E
Brand Name:XCMG
Place of Origin:China
Rated Loading Capacity:25t
Certification:CE/ISO9001

Specifications

weight:33000.000kg
Condition:New
Moving Type:Wheel
Wheel base:4600+1350mm
Front/ Rear overhang:2480/2725mm
Front/ Rear extension:1715/0mm
Max. travel speed :90km/h
Min. travel speed:2.5-3km/h
Max. total rated lifting capacity:25t
Min. rated working radius:3m

XCT25L5_E Truck crane is widely used for the lifting operations in general engineering projects, such as construction site, urban renewal, communication and transportation, ports, bridge, oilfields and mine, and complex working environments.

Optimal transmission system first created in the industry contributes to strong off-road performance and low oil consumption; the gradeability is 45%.

Super lifting performance: 5-section boom of 42m with U-type profile is the longest of the same class in the industry; the max. parts of line is 8 for the main hook block. The performance is 20% higher than that of the competitors. The telescoping mode is updated from sequential telescoping to random telescoping. The change of boom length is more efficient, and the performance of medium-long boom is higher; Innovative single-plate boom head and compact boom tail structure, best overlapping ratio in its class and stronger boom load-bearing capacity.

XCMG Official 25ton Truck Crane XCT25L5_E (Euro stage IV) for sale

Item			Unit	Parameters
Dimensions	Outline size (lengthxwidthxheight)		mm	12870x2550x3470
	Wheel base		mm	4600+1350
	Track(Front/ Rear)		mm	2074/1834/1834
	Front/ Rear overhang		mm	2480/2725
	Front/ Rear extension		mm	1715/0
Weight	Total weight in travel		kg	33000
	Axle load	1st axle	kg	7400
		2nd axle	kg	12800
		3rd axle	kg	12800
Power	Engine model		—	TAD872VE
	Engine rated power/rpm		kW/(r/min)	210/1900
	Engine rated torque/rpm		N.m/(r/min)	1350/1235
	Emission standard		—	EU Stage IV
Travel	Max. travel speed		km/h	90
	Min. travel speed		km/h	2.5-3
	Min. turning diameter		m	≤21
	Min. turning diameter at boom tip		m	≤27
	Min. ground clearance		mm	260
	Approach angle		°	12
	Departure angle		°	12
	Braking distance (at 30 km/h )		m	≤10
	Max. grade ability		%	≥45
	Fuel consumption per 100 km		L	30
Main performance	Max. total rated lifting capacity		t	25
	Min. rated working radius		m	3
	Turning radius at turntable tail	Counterweight	mm	3340
	Turning radius at turntable tail	Auxiliary winch	mm	—
	Max. load moment	Base boom	kN.m	1132
		Fully-extended boom	kN.m	713
		Fully-extended boom + Jib	kN.m	492
	Outrigger span	Longitudinal	m	5.65
	Outrigger span	Lateral	m	6.4
	Hoist height	Base boom	m	10.2
		Fully-extended boom	m	40.7
		Fully-extended boom + Jib	m	50.2
	Boom length	Base boom	m	10.8
		Fully-extended boom	m	42
		Fully-extended boom + Jib	m	51
	Jib offset angle		°	0、15、30
Working speed	Boom raising time		s	≤35
	Boom fully extended time		s	≤95
	Max. slewing speed		r/min	≥2.5
