XCMG Official 60ton All Terrain Crane XCA60_E (Euro stage IV) for sale, MACHMALL

Engineering & Construction Machinery > Engineering & Construction Crane > All Terrain Crane

XCMG Official 60ton All Terrain Crane XCA60_E (Euro stage IV) for sale

View All >

After-sales Service： Engineers available to service machinery overseas

Min Order Quantity： 1 Unit

Delivery Time：

In Stock (Within 7 days)

Production (Within15 to 20 days)

Customization (negociated delivery time)

After-sales Service：

1. It is recommended that you keep in touch with the seller after purchasing offline...

About after-sales service:

1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:

1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.

Inquiry Chat Now

Favorite Products

Product:

XCMG Official 60ton All Terrain Crane XCA60_E (Euro stage IV) for sale

Quantity:

- + /EA

Content:

Or choose from these questions:

What is the best price you can offer?

Do you support customization?

What is the MOQ for this product?

*Email:

Full Name:

Mobile phone:

Specs & Compare

Details

Specs & Compare

Select 3 models for comparison

Model Number

Brand Name

Place of Origin

Span

Max. Lifting Height

Max. Lifting Load

Rated Lifting Moment

Rated Loading Capacity

Application

Certification

Engineering & Construction Machinery

XCA60_E

XCMG

China

60t

CE/ISO9001

+ Add a Product

Summary

Model Number:XCA60_E
Brand Name:XCMG
Place of Origin:China
Rated Loading Capacity:60t
Certification:CE/ISO9001

Specifications

weight:36000.000kg
Condition:New
Moving Type:Wheel
Wheel base:2950+1650mm
Front/ Rear overhang:3080/2060mm
Front/ Rear extension:1430/710mm
Max. travel speed :85km/h
Min. travel speed:3km/h
Max. total rated lifting capacity:60t
Min. rated working radius:2.1m

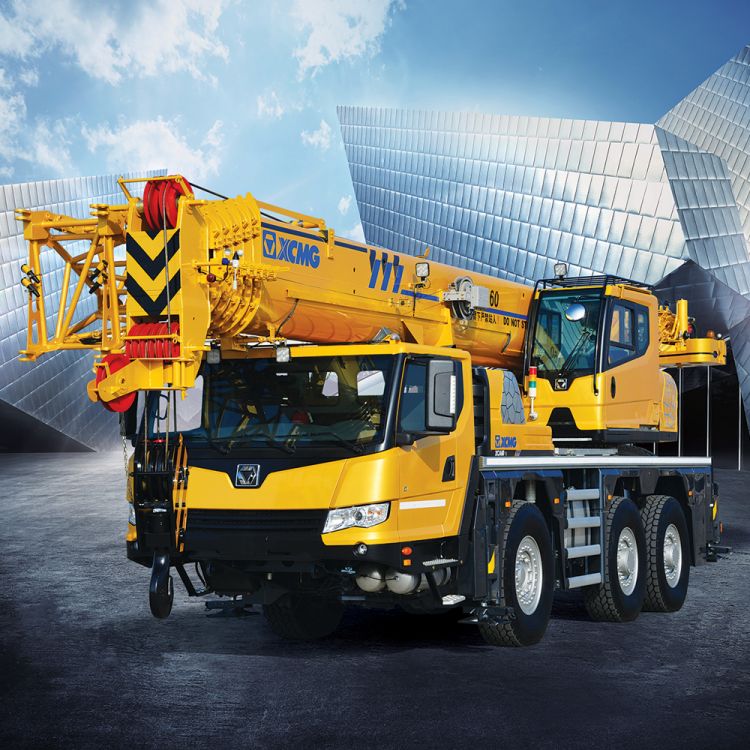

XCA60_E All Terrain Crane is a "Internet +" smart crane, in which mobile Internet, mobile terminal remote control function are integrated.

Power and traveling performance:

Daimler AG OM470LA diesel engine, rated power is 280kw, the max. torque is 1900N.m

American Allison automatic gear transmission

Max. travel speed 85Km/h, Max. gradeability 70%.

Independent heavy duty suspension system with single wishbone:

The tires on left and right side move up/down separately to adapt to road conditions, to effectively enhance the stability of steering operation at high speed and achieve excellent off-road performance when driving on narrow or poor road conditions.

Compliant to the highest standards:

The crane is designed by complying with the highest European standards. Its total length is not more than 12 m and width is less than 2.55 m.

XCMG Official 60ton All Terrain Crane XCA60_E (Euro stage IV) for sale

Item			Unit	Parameters
Dimensions	Outline size (lengthxwidthxheight)		mm	11880x2550x3755(14.0R25)
				11880x2550x3805(16.0R25)
				11880x2700x3805(20.5R25)
	Wheel base		mm	2950+1650
	Track(Front/ Rear)		mm	2150(14.0R25)/2084(16.0R25)/2155(20.5R25)
	Front/ Rear overhang		mm	3080/2060
	Front/ Rear extension		mm	1430/710
Weight	Total vehicle mass in travel configuration		kg	36000
	Axle load	1st axle	kg	12000
		2nd axle	kg	12000
		3rd axle	kg	12000
Power	Engine model		——	OM470LA
	Engine rated power/rpm		kW/(r/min)	280/1700
	Max. net power/rpm		kW/(r/min)	280/1700
	Engine rated torque/rpm		N.m/(r/min)	2200/1300
	Emission standard		——	EU Stage IV/EPA Tier 4F
Travel	Max. travel speed		km/h	85
	Min. travel speed		km/h	3
	Min. turning diameter		m	≤14.2(14.0R25) ≤16.5(16.0R25/20.5R25)
	Min. ground clearance		mm	330(14.0R25) 380(16.0R25/20.5R25)
	Approach angle		°	19(14.0R25) 20(16.0R25/20.5R25)
	Departure angle		°	21(14.0R25) 23(16.0R25/20.5R25)
	Braking distance (at 30 km/h )		m	≤10
	Max. grade ability		%	70(14.0R25) 63(16.0R25/20.5R25)
	Fuel consumption per 100 km		L	49
Main performance	Max. total rated lifting capacity		t	60
	Min. rated working radius		m	2.1
	Turning radius at turntable tail	Counterweight	mm	3750
	Turning radius at turntable tail	Auxiliary winch	mm	4250
	Max. load moment	Base boom	kN.m	1858
		Fully-extended boom	kN.m	894
		Fully-extended boom + Jib	kN.m	529
	Outrigger span	Longitudinal	m	7.32
	Outrigger span	Lateral	m	6.5
	Hoist height	Base boom	m	10.2
		Fully-extended boom	m	48
		Fully-extended boom + Jib	m	63
	Boom length	Base boom	m	10.3
		Fully-extended boom	m	48
		Fully-extended boom + Jib	m	64
	Jib offset angle		°	0、15、30
Working speed	Boom raising time		s	≤38
	Boom fully extended time		s	≤310
	Max. slewing speed		r/min	≥1.5

XCMG Official 60ton All Terrain Crane XCA60_E (Euro stage IV) for sale
