Summary
- Model Number:SQ6.3SK3Q
- Place of Origin:China
- Span:2280-5100mm
- Max. Lifting Height:12.6m
- Max. Lifting Load:6300kg
- cerBrand Name:XCMG
Specifications
- weight:6300.000kg
- Condition:New
- Moving Type:Wheel
- Max.Lifting Moment:15.75t*m
- Max. Lifting Capacity:6300kg
- Boom Length:4.34～11.2m
- Max. Lifting Height:12.6m
- Derricking range:0-75°
- Weight:2380kg
- Dimension:4600×2430×3198mm
- Outrigger span:2280-5100mm

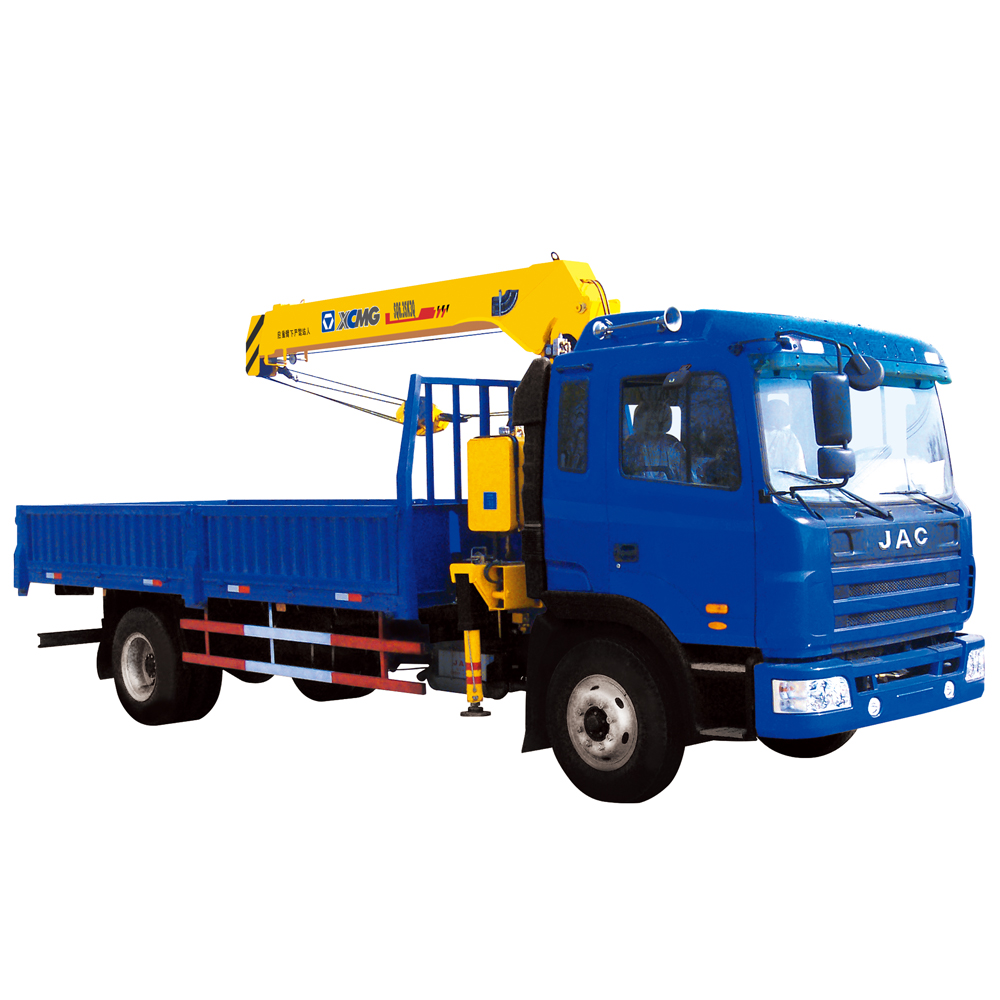

SQ6.3SK3Q Telescoping Boom Crane
1.Throttle Control System
Changing the form of previous manipulation and
throttle operation individually，Realization of the bilateral handle synchronous and driving throttle
acceleration and deceleration automatically, due to the speed change steady，it can easily to carry out the lifting work.
2.End position automatic hook device
Maximum savings in preparation time before and
after operation, to ensure that customer’s vehicle could be in a driving state
in the shortest time, and prevent crane damage accident caused by hoist swing to
enhance the safety of driving.
3.Hoisting overwinder device
If a user is negligent or unfamiliar with the
operation of lifting hooks，the hoisting overwinder device will stop hook raise in time, to prevent the
safety of personal and property caused by fracture of wire rope.
4.Slewing locking device
Slewing locking device can ensure that the lifting arm does not sway because of the centrifugal force during the driving and steering process of the vehicle，to avoid all kinds of accidents caused by swaying.
5.Torque limiter
It can select torque limit overload protection device to prevent users
because of negligence or unfamiliar with
the lifting operation principle of overload operation, thereby causing the
vehicle rollover and crane damage accidents.
Description |
Unit |
Parameter value |
||
Max Lifting Moment |
t*m |
15.75 |
||
Max Lifting Capacity |
kg |
6300 |
||
Boom Length |
m |
4.34～11.2
|
4.29～12.2
|
|
Max Lifting Height |
m |
13.2 |
||
Derricking range |
° |
0～75° |
0～78° |
|
Outrigger span |
mm |
2280～5100
|
2280～5100
|
|
Size（length×width×height） |
mm |
4600×2430×3198 |
4282×2430×3134 |
|
Crane Weight |
kg |
2280 |
2200 |
|
