Summary
- Machine Weight:19950kg
- Brand Name:XCMG
- Place of Origin:China
Specifications
- weight:19950.000kg
- Condition:New
- Moving Type:Other

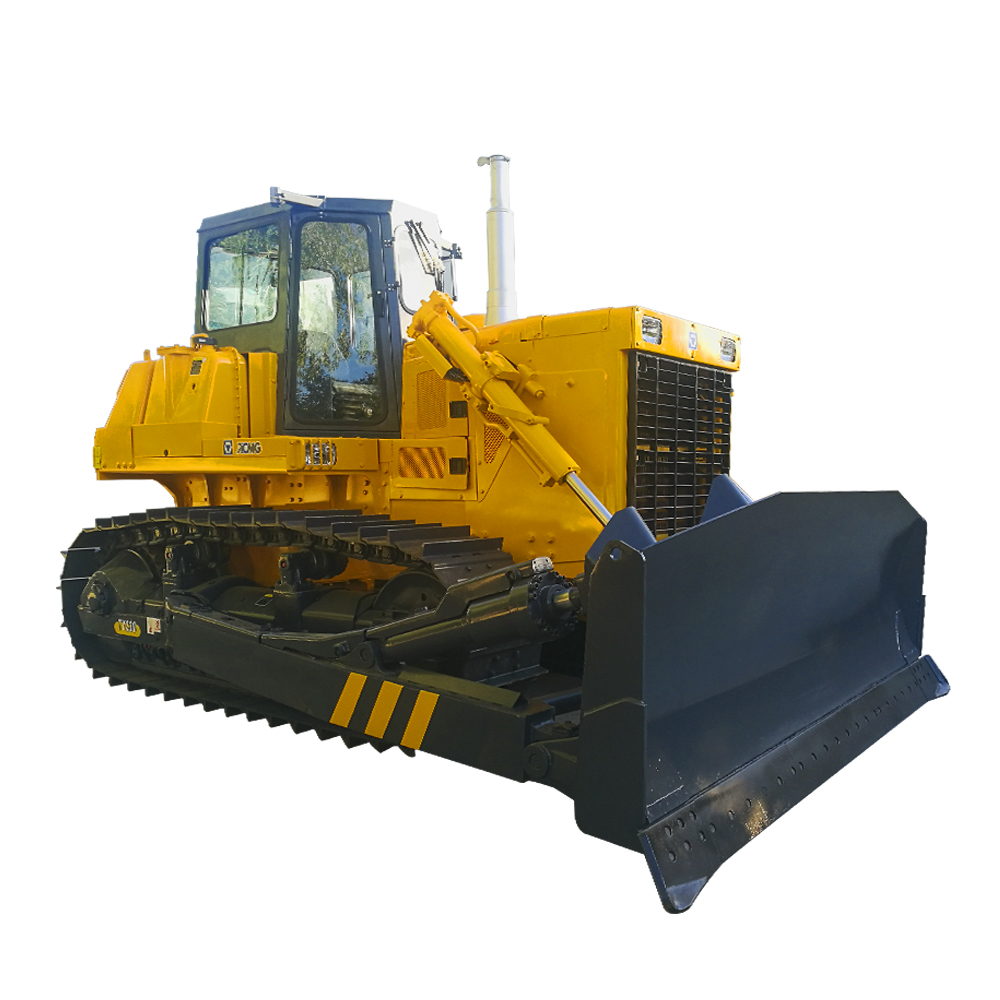

TY230（Angle shovel ）Bulldozer：
Bulldozer TY230, based on imported technology of Japanese Komatsu bulldozer D85A-21, is designed and manufactured by Engineering Machinery Plant. As a large-sized bulldozer, it adopts well-known high-quality accessories from domestic market in this line.
The bulldozer employs the advanced technology of hydraulic transmission and control, electronic monitor, acoustic optical warning, as well as a big blade, etc. It is featured with compact structure, superior performance, selective material, precise technique, reliable quality and agile operation with high efficiency. Closed operator cabin with steel-structure incorporates a ROPS and an air conditioner, permitting a comfortable and safe operation. The bulldozer is equipped with a scarifier, a scraper and various blades, etc. for your option.
This introduction covers the main technical performance data, structure and operational principle of systems, adjustment of components, maintenance and troubleshooting as well as safety operating specifications, etc. Before using the bulldozer, you shall read this book carefully to realize a skillful, safe and efficient operation.
Any breakdown occurred on the bulldozer shall be sent to the plant in details by fax. We will provide you a timely and satisfactory after-sale service at your requests.
| Project | Unit | Parameter | |
| operation weight | kg | 19950 | |
| Angle shovel, traction rod | kg | 25740 | |
| Running speed | Forward | km/h | 0-3.8 |
| km/h | 0-6.8 | ||
| km/h | 0-11．3 | ||
| Reverse | km/h | 0-4.9 | |
| km/h | 0-8.2 | ||
| km/h | 0-13.6 | ||
| Min,turning radius | m | 3.3 | |
| Max.gradient | ° | 30 | |
| Overall Dimensions | General | mm | 5494 |
| Overall width | mm | 4365 | |
| Overall height | mm | 3380 | |
| Track center distance | mm | 2000 | |
| Ground Length | mm | 2840 | |
| Track Width | mm | 560 | |
| Ground pressure | MPa | 0.076 | |
| Minimum ground clearance | mm | 405 | |
| 发动机Engine | Model | ／ | NT855—C280S10 |
| Type | ／ | Straight line.water cooled ,4-stroke ,direct injection,turbocharged diesel | |
| No.of cylinders –bore×stroke | mm | 6-Ф139.7×152.4 | |
| Piston displacement | L | 14 | |
| Rated horsepower | kW | 169 | |
| Rated revolution | r/min | 2000 | |
| Max.output torque | N.m | 1033 | |
| Torque reserving coefficient | ／ | 1.25 | |
| Fuel consumption | g/kW.h | 209 | |
| Torque Converter | Forms | ／ | Three components, a 1-phase torque converter |
| Cooling | ／ | Oil cooler (water cooled) | |
| 行走机构 Running System | type | ／ | Swing type balance bean suspension structure |
| No.of road Wheels | 个 | 7(7pieces/each side) | |
| No.of support rollers | 个 | 2(2 pieces/each side) | |
| Track pitch | mm | 216 | |
| NO.of track shoe | 片 | 39×2 | |
| Transmission | Hydraulic torque converter | ／ | Single-stage single-phase,three element |
| Gearbox | ／ | Planetary gear ,multi-disc clutch ,hydraulic forced lubrication | |
| Central transmission | ／ | Spiral bevel gear ,single stage gear reduction ,spattering lubrication | |
| Steering clutch | ／ | Wet multi-disc,spring compression ,hydraulic dissengaging | |
| Steering brake | ／ | Wet.float type .direct clutching ,hydraulic booster brake |
|
| Final drive | ／ | Two-stage spur reduction,spattering lubrication | |
| Work Device | Blade width | mm | 4365 |
| Blade height | mm | 1055 | |
| Maximum lifting height | mm | 1210 | |
| Soil depth of maximum shear | mm | 536 | |
| Inclination | mm | 735 | |
| Blade capacity | M³ | 4.7 | |
| Type of cylinder | ／ | Gear pump PAL.160 | |
| Hydraulic System | Pump flow | L/min | 266 |
| Max.operation pressuere | MPa | 13.7 | |
| Work tank capacity | L | 110 | |
