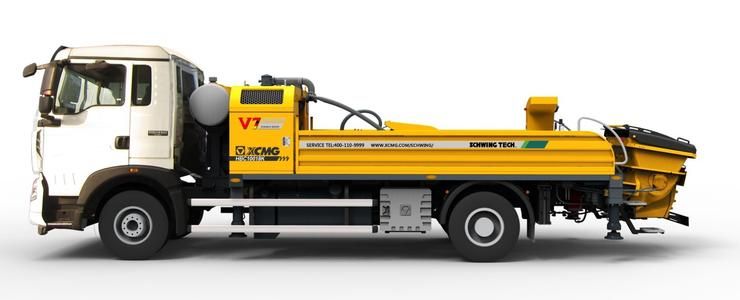

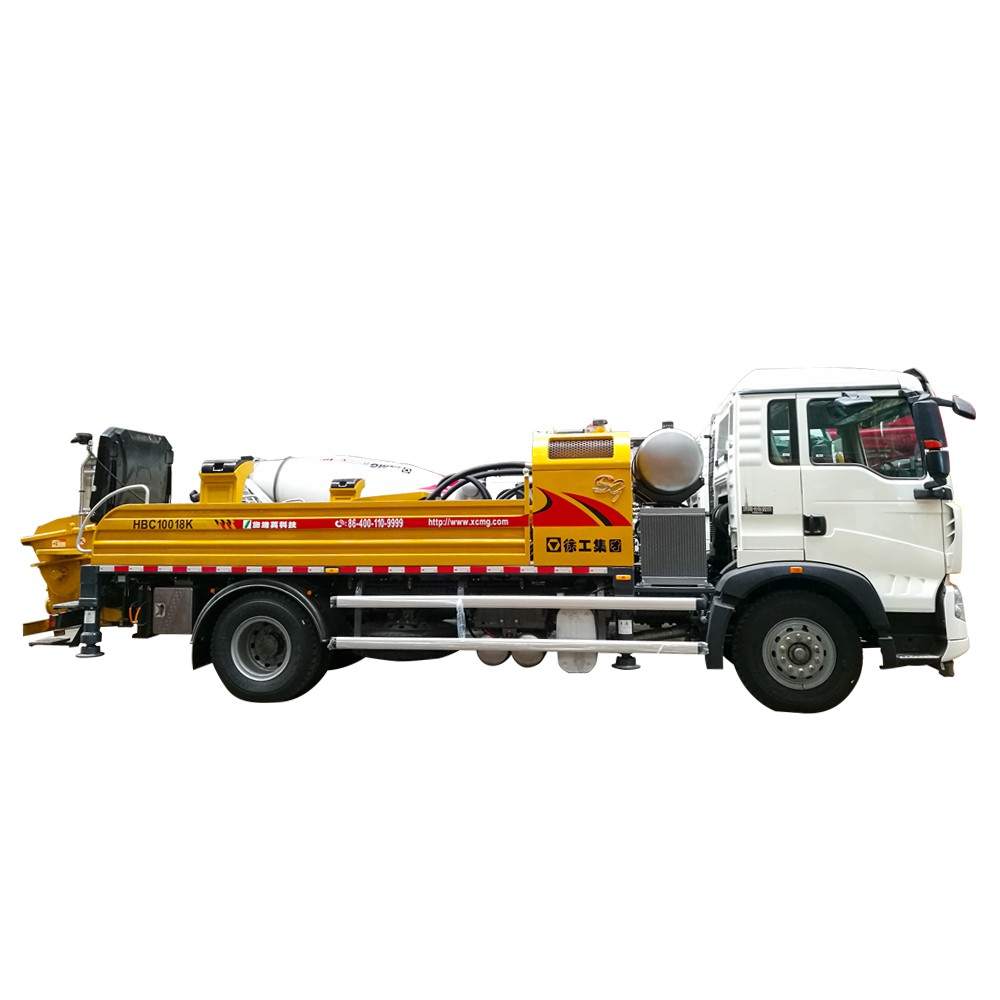

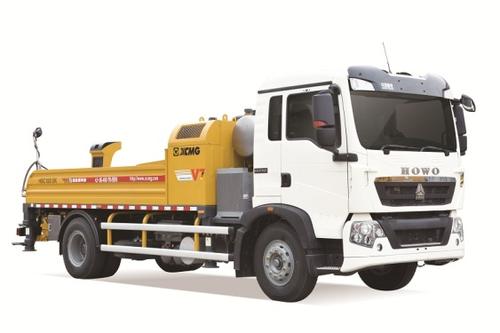

HBC10018K Truck-mounted Concrete Line Pump
1、It is a kind of modernized construction equipment used for pumping concrete continuously.
2、It not only has the advantages of convenient and fast mobility and flexible maneuverability of truck-mounted concrete pump, but also absorbs the advantages of high pumping pressure applying to concrete delivering in medium high and high buildings and low cost from trailer-mounted concrete pump.
3、It can meet the requirement of constructing the super high, high and medium high buildings, bridges, tunnels, workshop and power plants which require high pressure pumping, remote distance pumping and pumping high strength concrete (above C50).
4、The max. pumping height can reach 300m and the max. horizontal pumping distance can reach 1200m.

Description	Unit		Parameter value
Overall dimensions (L´W´H)	mm		9350×2480×2970
Fuel			Diesel
Engine emission standard			China IV
Displacement/Rated power	L/kW		6.87/151
Steering type			Steering wheel
Axle number			2
Wheelbase	mm		4800
Steel spring number (front/rear)			11/9+8
Tire			9.00R20
Track (front /rear)	mm		2064/1860
Tire number (spare tire excluded)			6
Total curb mass	Overall mass	kg	14785
	Front axle	kg	5285
	Rear axle	kg	9500
Max. overall mass	Overall mass	kg	14980
	Front axle	kg	5480
	Rear axle	kg	9500
Permitted number in the driver cab			2
Approach/departure angle	°		19/10
Front/rear overhang	mm		1430/1860
Max. driving speed	km/h		90
Min. ground clearance	mm		256
Max. grade-ability	%		40
Oil consumption per 100km	L		22
Chassis	Model		ZZ1167M481GD1/M7M7
	Type		Category II
	Manufacturer		Sinotruk
Engine	Model		MC07.28-40
	Manufacturer		Sinotruk
Volume of fuel tank	L		400
Number of fuel tank			1
Min. turning diameter	m		16
