Summary
- Rated Speed:11.7r/min
- Max Digging Radius:8304mm
- Machine Weight:14800kg
- Maximum Digging Depth:5520mm
- Maximum Digging Height:8640mm
- Bucket capacity:0.32~0.72m3
- Operating Weight:14800kg
- Model Number:XE150E
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
Specifications
- weight:14800.000kg
- Condition:New
- Moving Type:Crawler

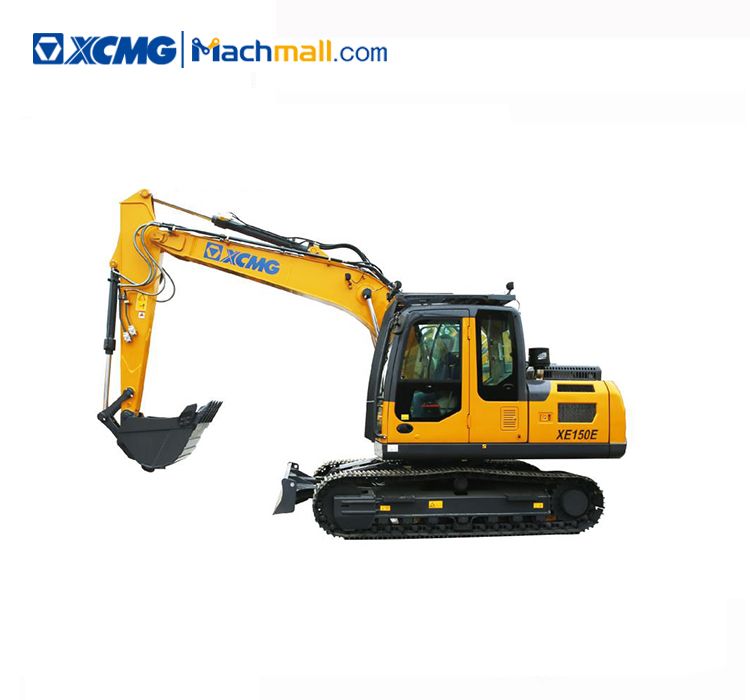

XCMG XE150E Chinese 15 Ton Crawler Excavator Machine.
XCMG crawler excavator XE150E adopts a high-pressure common-rail EFI engine that meets North American EPA Tier4F emissions, achieving optimal fuel injection control and improved combustion efficiency. Combined with DOC+DPF exhaust gas treatment technology, it is more energy-saving and environmentally friendly.
In addition, the brand new cab, complemented by a luxurious interior, the panoramic sunroof design has a wider field of vision, and the operation buttons are centrally arranged to fully upgrade the driving experience. A large number of special structures and high-strength, wear-resistant steel are used to develop and manufacture structural parts; the strength and service life of the products are greatly improved, and various severe working conditions can be easily handled.
It is widely used in small and medium-sized earth and stone works, municipal construction, highway and bridge construction, excavation of ditches, and farmland water conservancy construction.
|
Sales model |
Unit |
XE150E |
|
|
Operating weight |
Kg |
14800 |
|
|
Bucket capacity |
m³ |
0.32～0.72 |
|
|
Engine |
Model |
/ |
QSB4.5 |
|
No. of cylinders |
/ |
4 |
|
|
Rated power |
kw/rpm |
90/2200 |
|
|
Maximum torque/speed |
N.m/rpm |
470/1500 |
|
|
Displacement |
L |
4.5 |
|
|
Main performance |
Travel speed |
km/h |
5.3/3.2 |
|
Swing speed |
r/min |
11.7 |
|
|
Gradeability |
° |
≤35 |
|
|
Ground pressure |
kPa |
38 |
|
|
Bucket digging force |
kN |
106.9 |
|
|
Arm digging force |
kN |
73.4 |
|
|
Maximum tractive force |
kN |
134 |
|
|
Hydraulic system |
Rated flow of main pump |
L/min |
123.5×2 |
|
Main safety valve pressure |
MPa |
34.3/37 |
|
|
Travel system pressure |
MPa |
34.4 |
|
|
Swing system pressure |
MPa |
25 |
|
|
Pilot system pressure |
MPa |
3.9 |
|
|
Oil Capacity |
Fuel tank capacity |
L |
260 |
|
Hydraulic tank capacity |
L |
105 |
|
|
Engine oil capacity |
L |
11 |
|
|
Appearance size |
A Overall length |
mm |
7806 |
|
B Overall width |
mm |
2590 |
|
|
C Overall height |
mm |
2900 |
|
|
D Width of platform |
mm |
2490 |
|
|
E Track length |
mm |
3658 |
|
|
F Overall width of chassis |
mm |
2590 |
|
|
G Track width |
mm |
600 |
|
|
H Wheel base of crawler |
mm |
2910 |
|
|
I Track gauge |
mm |
1990 |
|
|
J Counterweight clearance |
mm |
942 |
|
|
K Min. ground clearance |
mm |
476 |
|
|
L Min. tail swing radius |
mm |
2355 |
|
|
M Track height |
mm |
836 |
|
|
Working scope |
A Max. digging height |
mm |
8640 |
|
B Max. dumping height |
mm |
6180 |
|
|
C Max. digging depth |
mm |
5520 |
|
|
D Maximum depth cut for 2240mm(8 ft) level bottom |
mm |
5324 |
|
|
E Max. vertical wall digging depth |
mm |
4697 |
|
|
F Max. digging radius |
mm |
8304 |
|
|
G Min. swing radius |
mm |
2445 |
|
|
Standard |
Length of boom |
mm |
4600 |
|
Length of arm |
mm |
2520 |
|
|
Bucket capacity |
m³ |
0.61 |
|
|
Optional |
Length of boom |
m³ |
/ |
|
Length of arm |
m³ |
2100/3010 |
|
|
Bucket capacity |
m³ |
0.52 Rock bucket、Strengthened bucket 0.32/0.4/0.72 Earthwork bucket |
|
